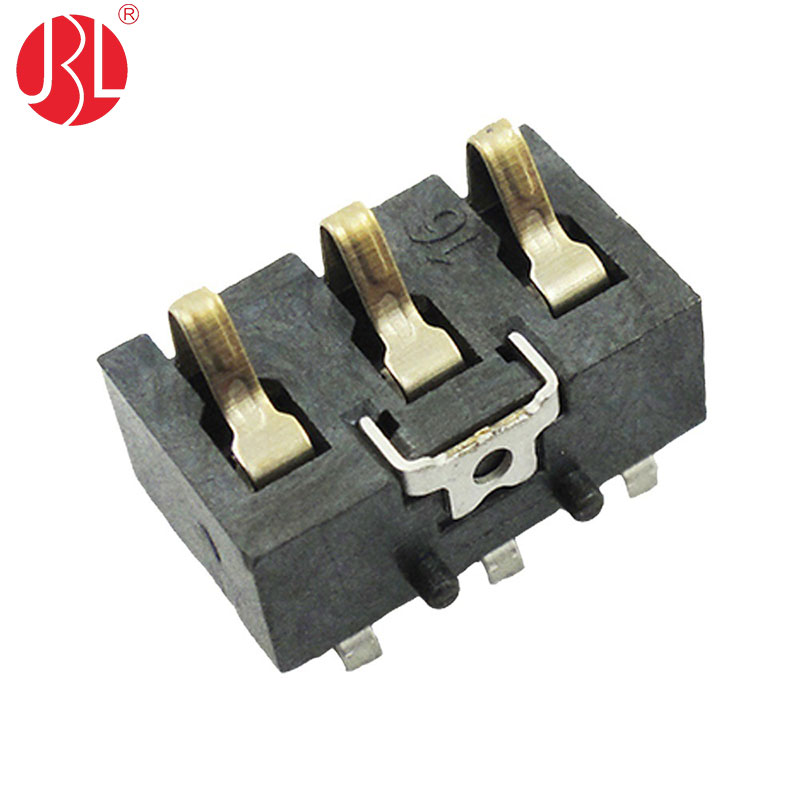

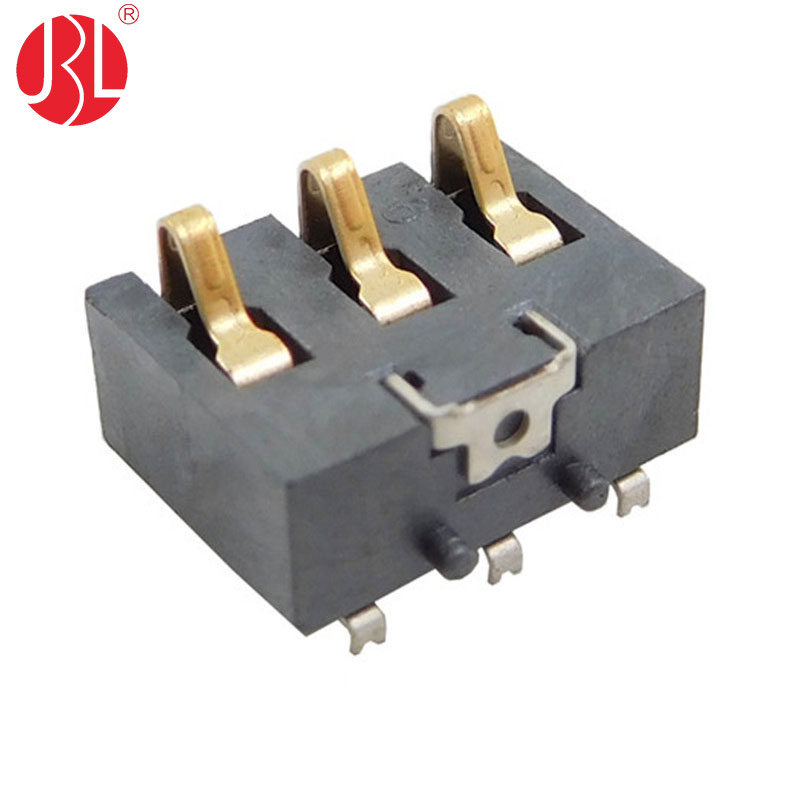

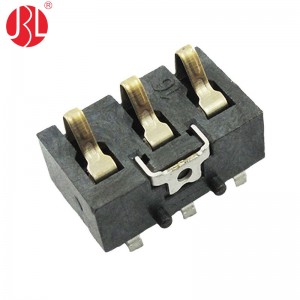

BC-03 Series 3.0mm Pitch Spring Battery Connector 3Way SMT Right Angle

The 3.0mm pitch spring battery connector is a compact, surface-mount, right-angle solution designed for reliable power connections in small electronic devices. This 3-way connector features a durable spring contact mechanism, ensuring secure and stable connections with battery terminals. It offers versatile housing height options of 4.6mm, 5.0mm, 6.0mm, 6.8mm, and 7.2mm, paired with corresponding contact height options of 3.0mm, 3.8mm, 4.4mm, 4.4mm, and 5.6mm, providing flexibility for various design needs. Part number variants include BC-0346-30, BC-0350-38, BC-0360-44, BC-0368-44, and BC-0372-56, each tailored to specific housing and contact heights. Rated for DC 12V and 2A, it is ideal for low-power applications such as portable electronics, IoT devices, and medical equipment. The housing is made from LCP (Liquid Crystal Polymer), ensuring high heat resistance and durability. The right-angle design optimizes PCB space, while the surface-mount configuration ensures easy assembly. Its robust construction guarantees reliable performance in demanding environments, making it a practical and efficient choice for modern electronics.

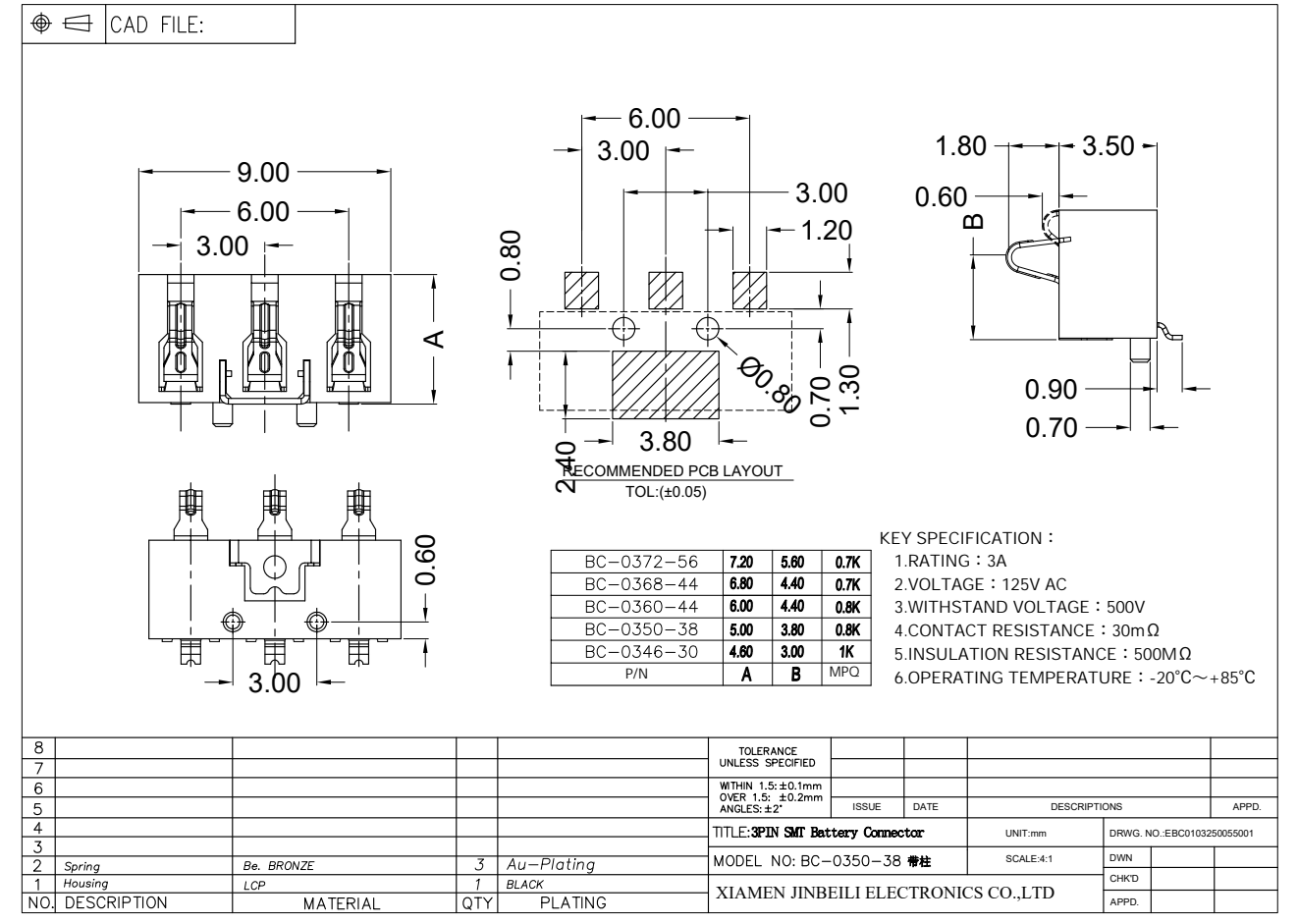

Datasheets :
