BT-77-3PD770 3.0mm Pitch Spring Battery Connector 3Way THT Hole Right Angle

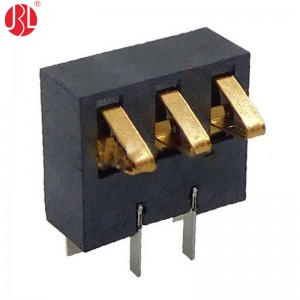

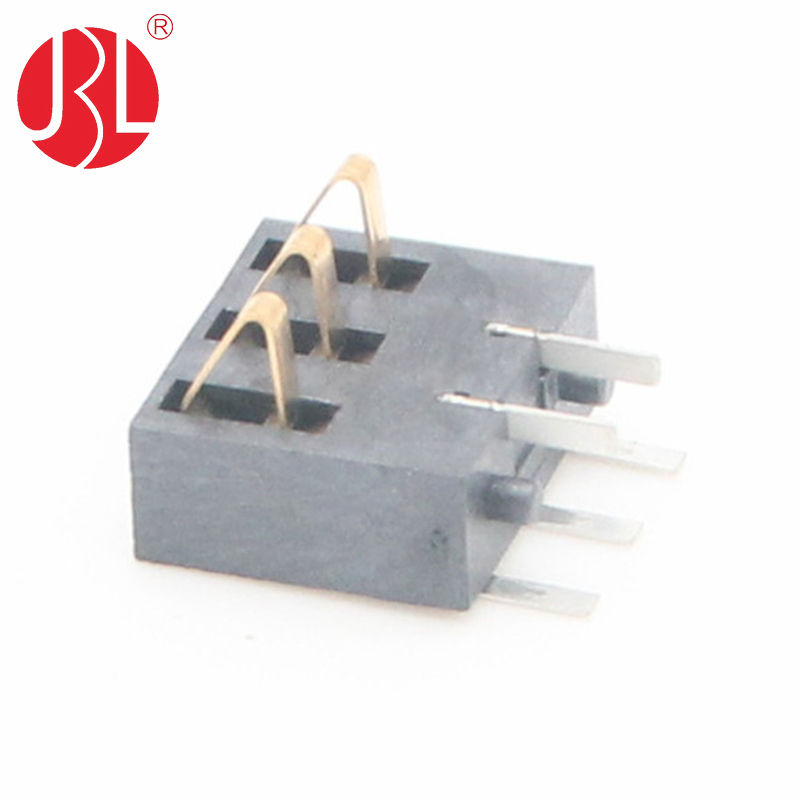

3.0mm Pitch Spring Battery Connector – Through Hole Right Angle
This 3-position spring battery connector features a 3.0mm pitch and through-hole right-angle mounting, designed for secure and reliable battery connections in various electronic applications. With a contact height of 5.4mm and an insulation housing height of 7.7mm, it provides a robust and stable interface for battery terminals while maintaining a compact form factor. The spring-loaded contact mechanism ensures consistent pressure and low-resistance connectivity, enhancing durability and electrical performance.

Rated for DC 24V at 3A, this connector is suitable for low-voltage power applications, including consumer electronics, power tools, medical devices, and industrial equipment. The through-hole design offers strong mechanical retention on PCBs, making it ideal for applications requiring high reliability and vibration resistance.

Key Features:
✔ 3.0mm pitch, 3-position configuration
✔ Right-angle through-hole mounting for secure PCB attachment

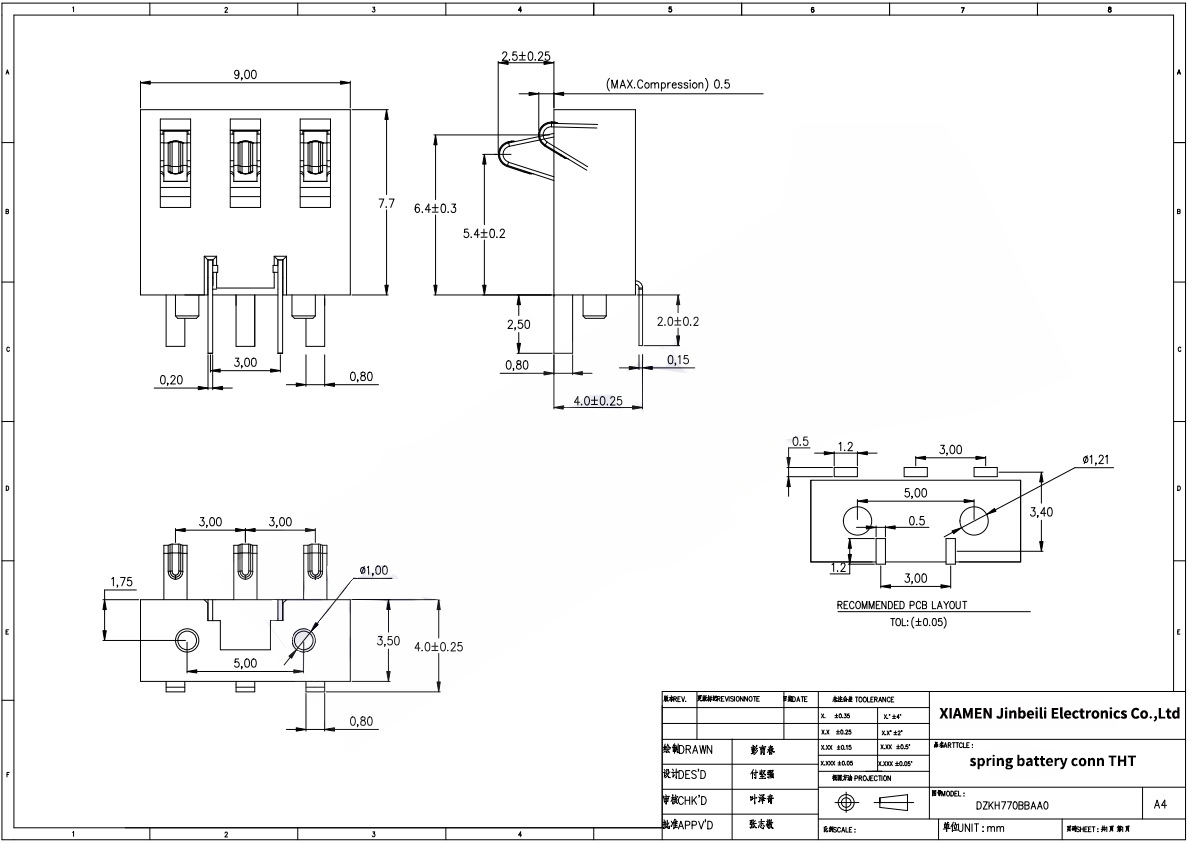

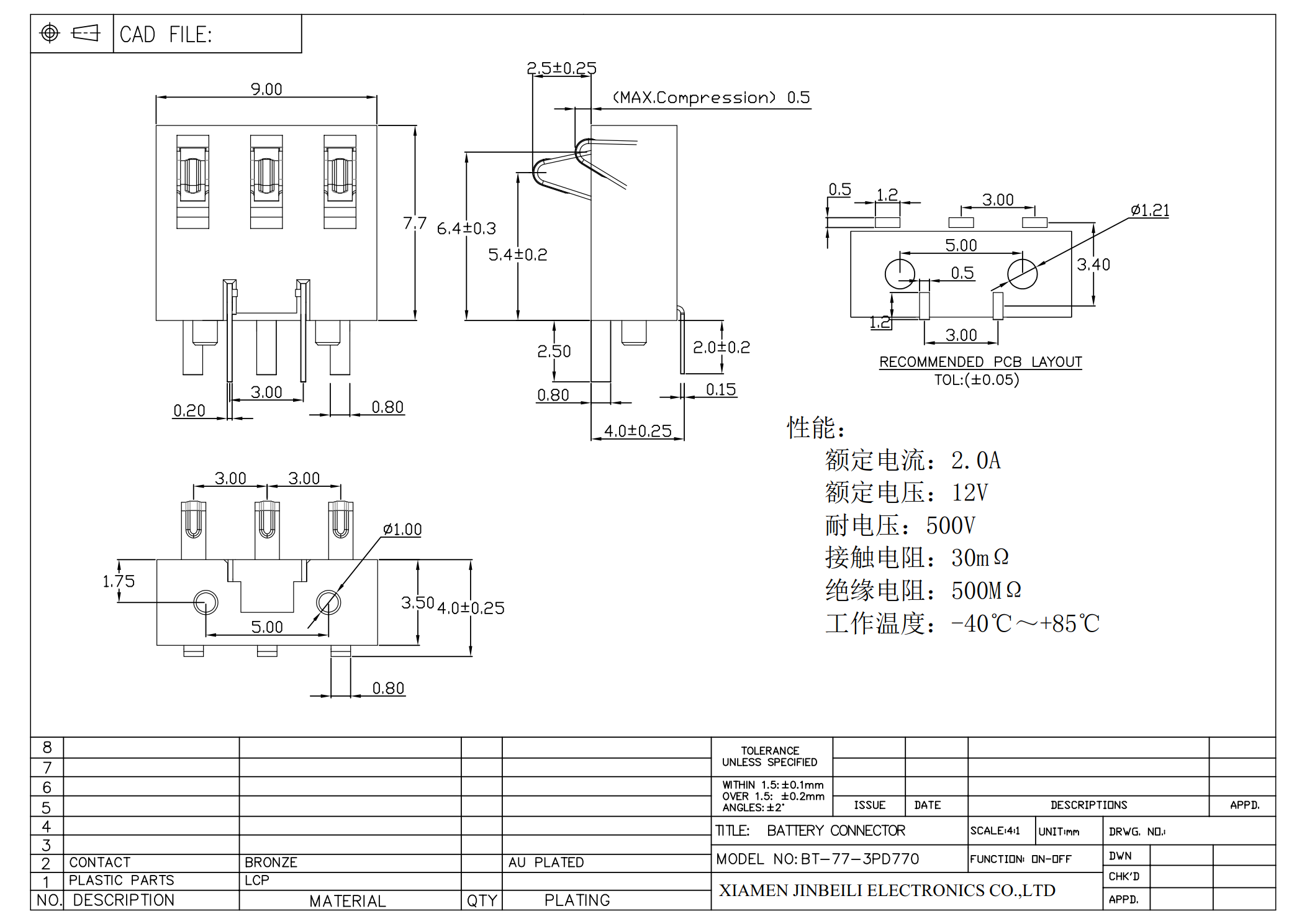

✔ Contact height: 5.4mm; housing height: 7.7mm
✔ Spring-loaded contacts for stable, low-resistance connections
✔ Rated: DC 24V, 3A
✔ High-temperature-resistant insulation housing

This connector is perfect for designs requiring a durable, space-efficient, and high-performance battery interconnection solution. Its through-hole construction ensures long-term reliability in demanding environments.
