3.0mm Pitch Spring Battery Connector – Surface Mount Right Angle

This spring battery connector offers a compact and reliable solution for battery-powered devices, featuring a 3.0mm pitch and a low-profile design with a contact height of just 2.3mm and low overall height ( insulation housing height ) of 6.8mm. Its right-angle surface-mount (SMT) configuration ensures easy PCB integration, making it ideal for space-sensitive applications such as wearables, medical devices, IoT gadgets, and portable electronics.

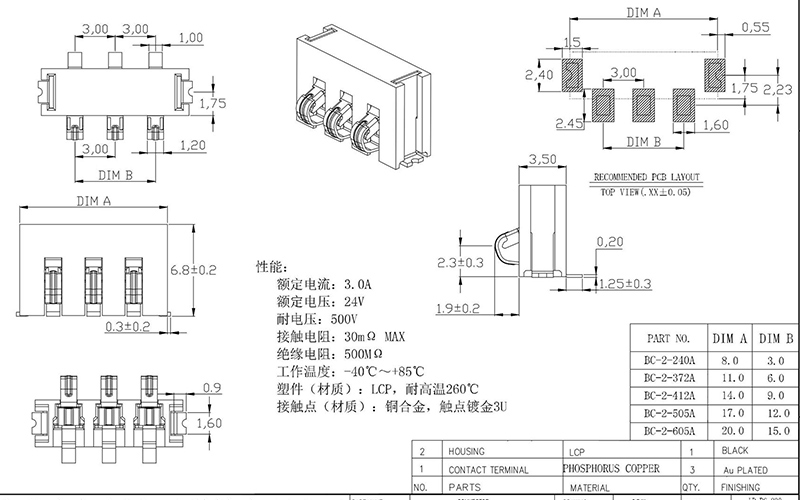

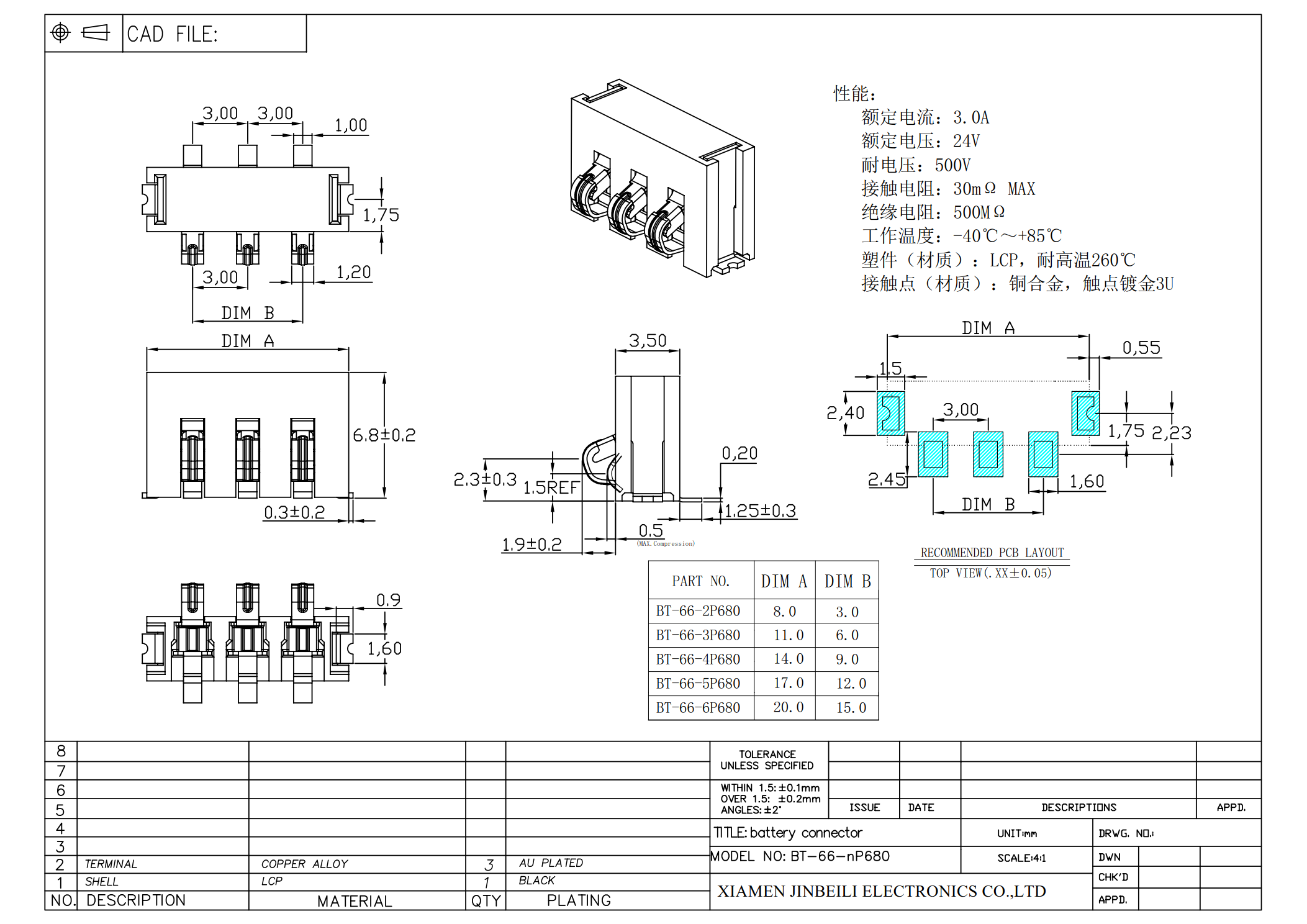

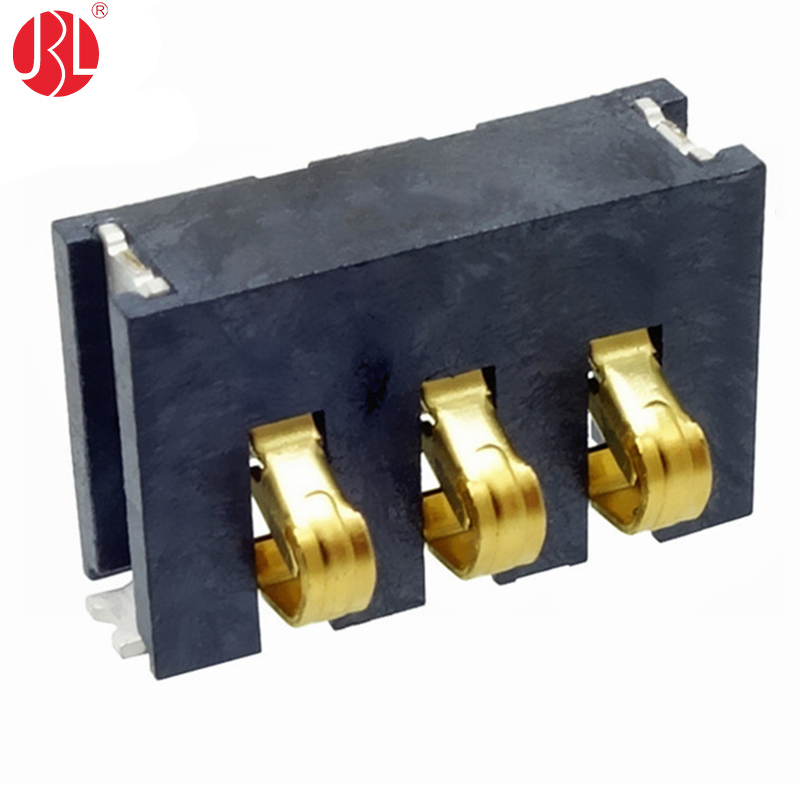

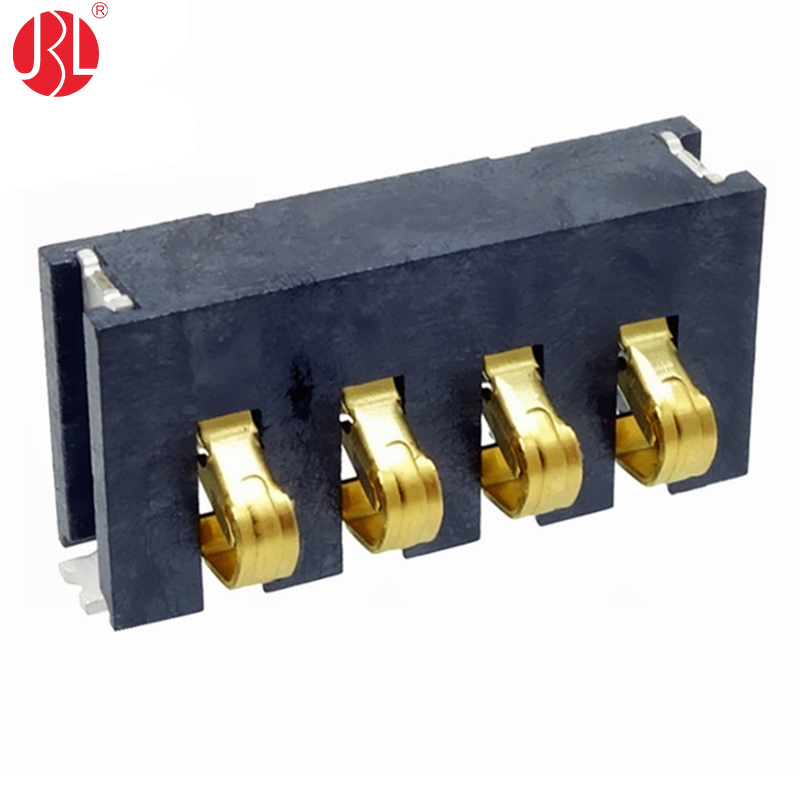

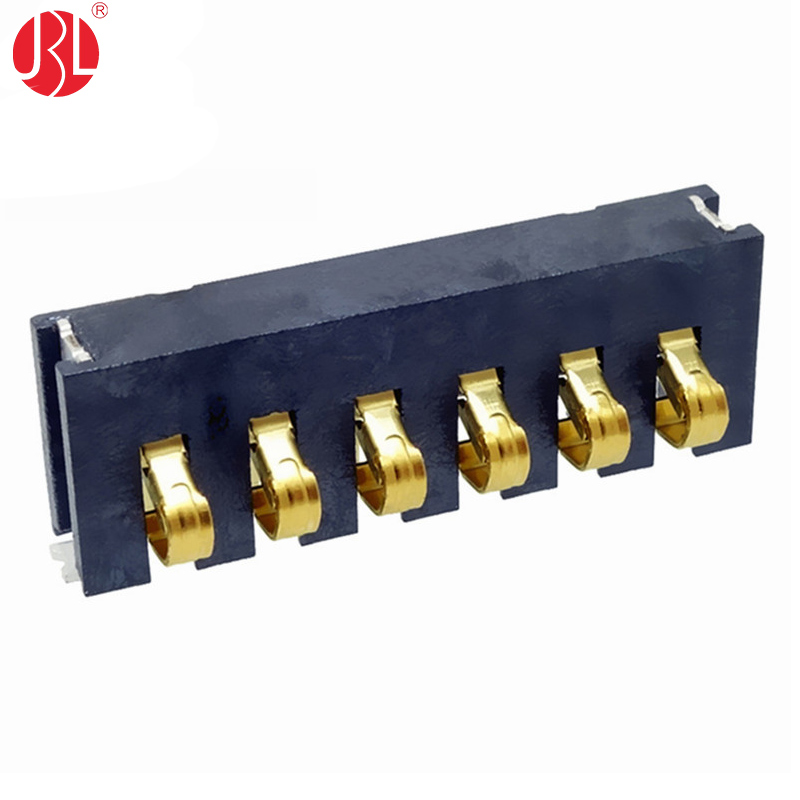

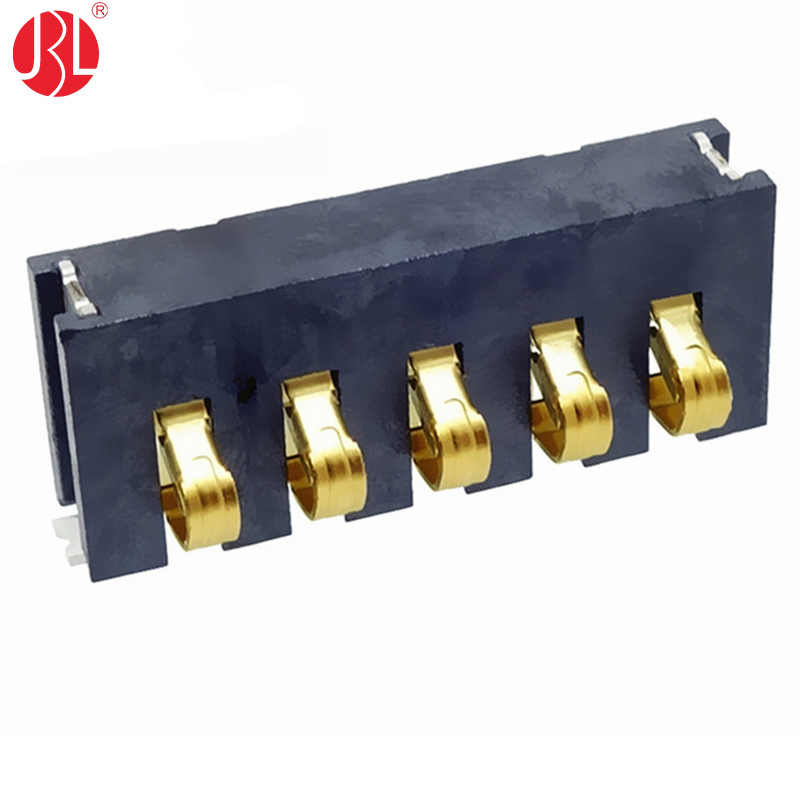

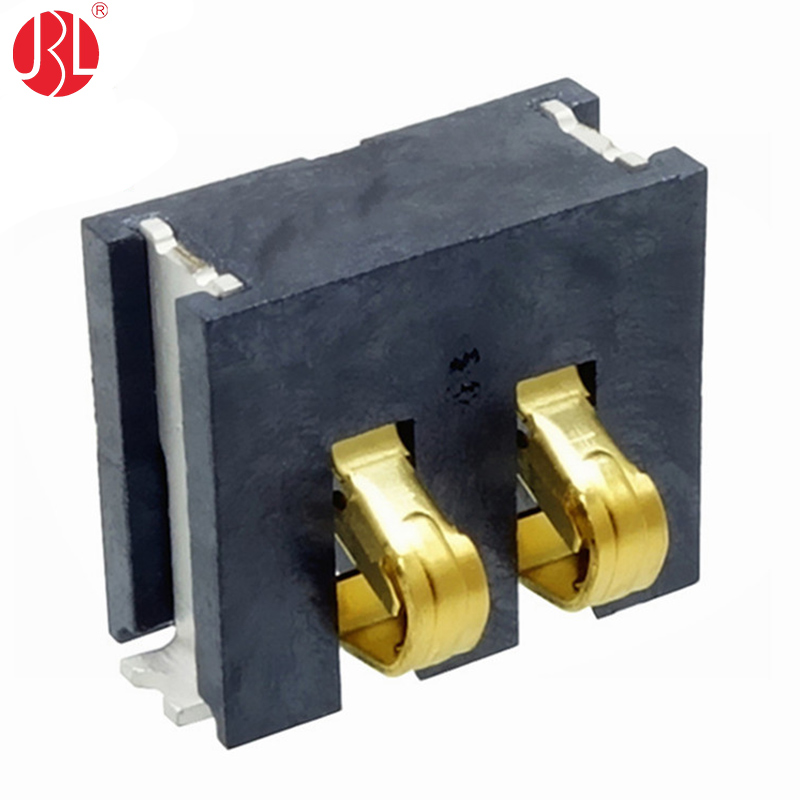

Available in 2-pin, 3-pin, 4-pin, 5-pin, and 6-pin options, this connector provides flexibility for various circuit layouts. The spring-loaded contact mechanism ensures a stable and low-resistance connection with battery terminals, enhancing durability and electrical performance. Rated for DC 24V at 3A, it delivers reliable power transmission for low-voltage applications.

Constructed with high-temperature-resistant insulation housing, this connector ensures mechanical stability and electrical safety. The SMT design allows for efficient automated assembly, reducing production time and costs.

Key Features:
✔ 3.0mm pitch, right-angle SMT design
✔ Ultra-low contact height (2.3mm)
✔ Housing height: 6.8mm
✔ 2-pin to 6-pin configurations
✔ Rated: DC 24V, 3A
✔ Secure spring contact for stable battery connection

Perfect for compact electronics, power tools, smart devices, and embedded systems requiring a durable and space-saving battery interconnect solution.

Questions:

Question 1: Can you make this 3.0mm pitch spring contact with 8 Positions ?

Answer 1: Yes, we are able to make it with 8pos. But there would be around 1000 USD tooling cost .

Question 2: what is the gold plating thickness of this battery connector ?

Answer 2: The Au plating thickness is 3μ” for handling power DC24V 3A

Question 3: what is the lifecycles of this battery connector

Answer 3: 5000 cycles approx
