3.0mm Pitch Spring Battery Connector Surface Mount Right Angle

3.0mm Pitch Spring Battery Connector – Surface Mount Right Angle

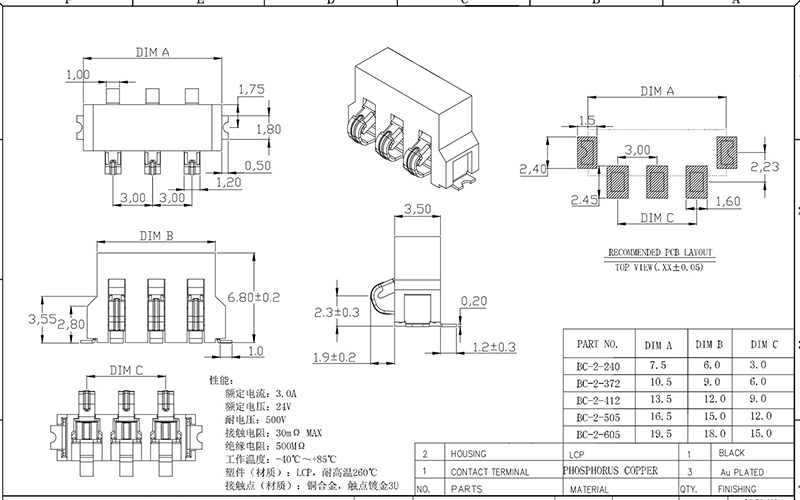

This spring battery connector features a compact 3.0mm pitch, designed for secure and reliable battery connections in space-constrained applications. With a low contact height of just 2.3mm and an insulation housing height of 6.8mm, it ensures a slim profile while maintaining robust performance. The right-angle SMT (surface mount) design facilitates easy PCB integration, making it ideal for portable electronics, medical devices, and IoT applications.

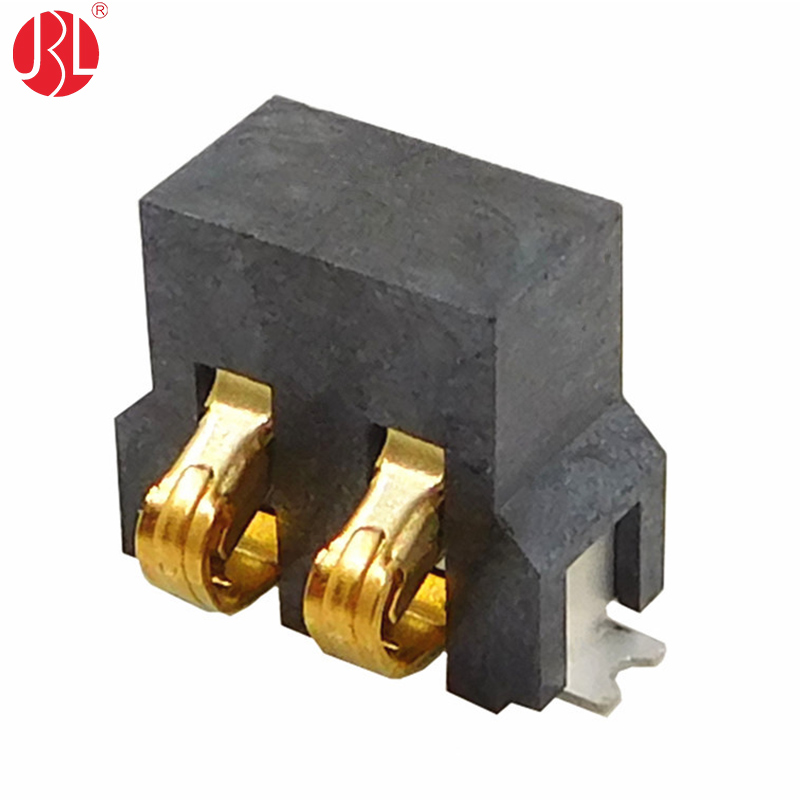

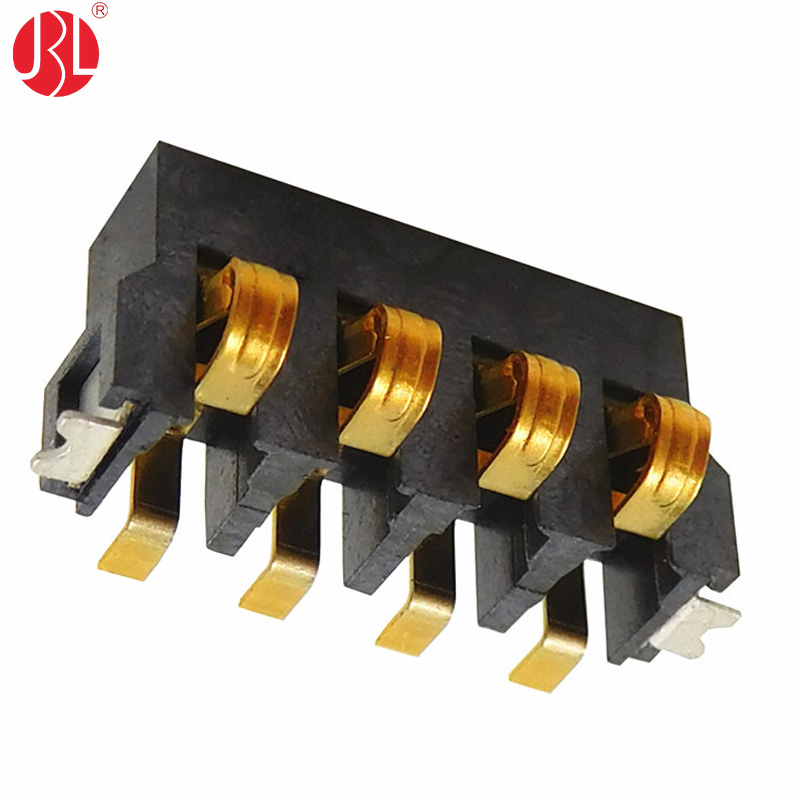

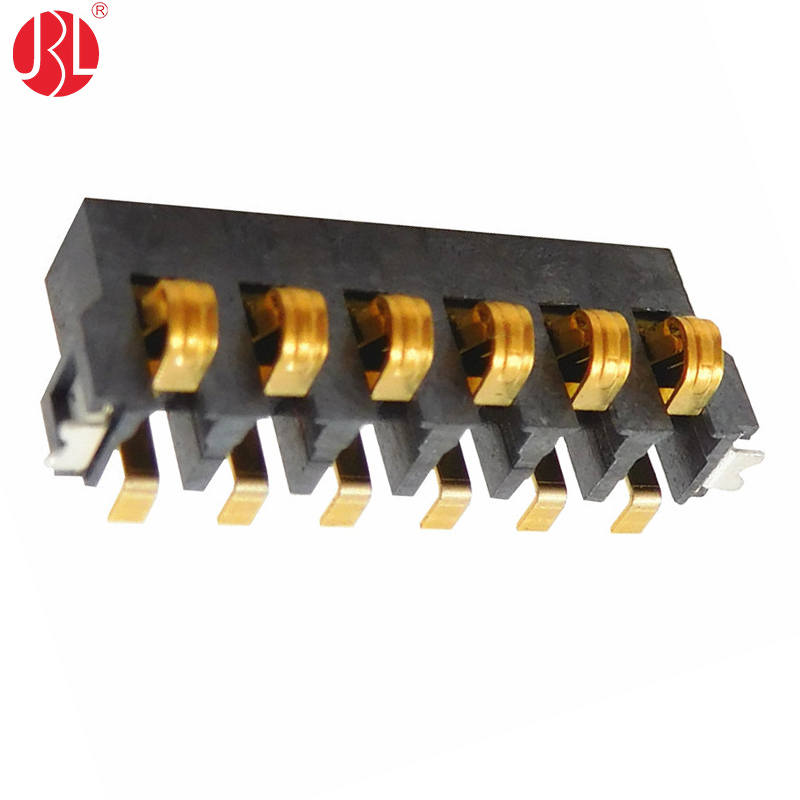

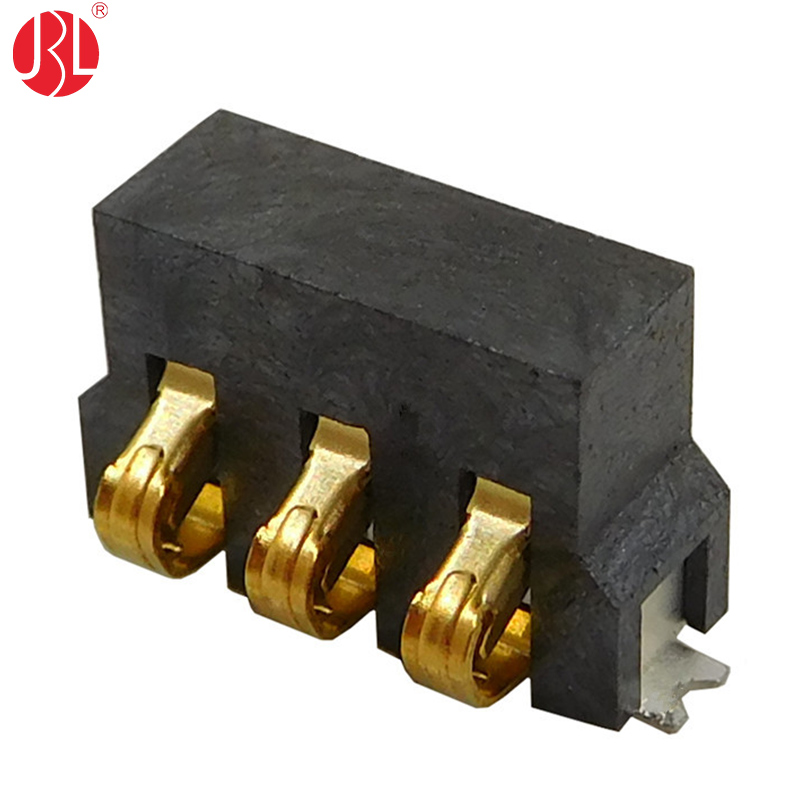

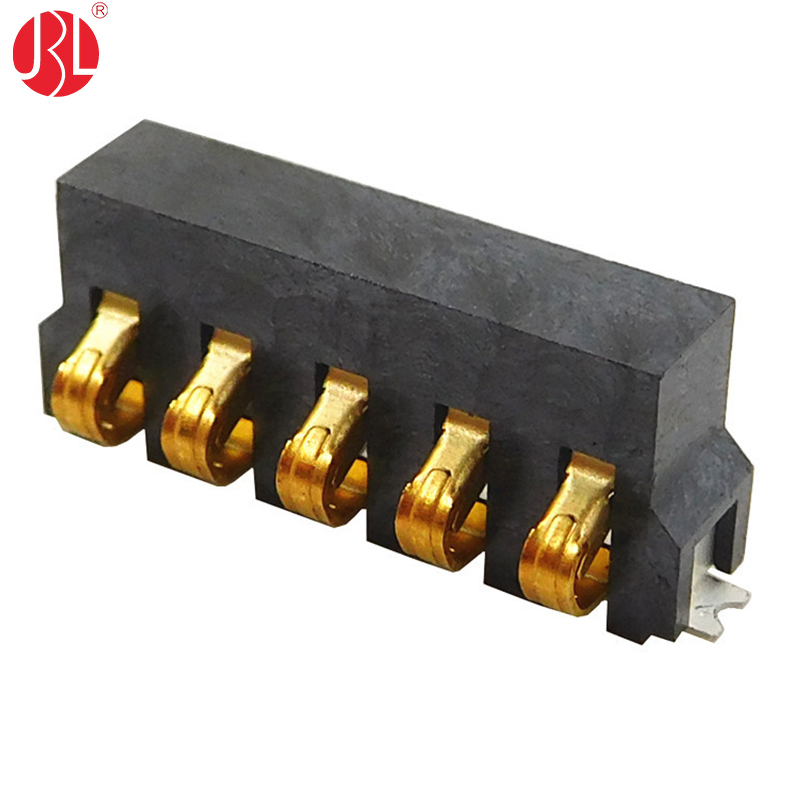

Available in 2-way, 3-way, 4-way, 5-way, and 6-way configurations, this connector supports flexible circuit layouts. It is rated for DC 24V at 3A, providing stable power delivery for low-voltage applications. The spring contact mechanism ensures a stable and durable connection with battery terminals, minimizing resistance and enhancing conductivity.

Constructed with high-temperature-resistant insulation housing, this connector offers excellent mechanical stability and electrical safety. Its surface-mount design allows for efficient automated assembly, reducing manufacturing costs.

Key Features:
✔ 3.0mm pitch, right-angle SMT design
✔ Low contact height (2.3mm)
✔ Insulation housing height: 6.8mm
✔ Available in 2-6 way positions
✔ Rated for DC 24V, 3A
✔ Reliable spring contact for secure battery connection

Ideal for consumer electronics, power tools, and embedded systems requiring a compact, high-performance battery interconnect solution.
