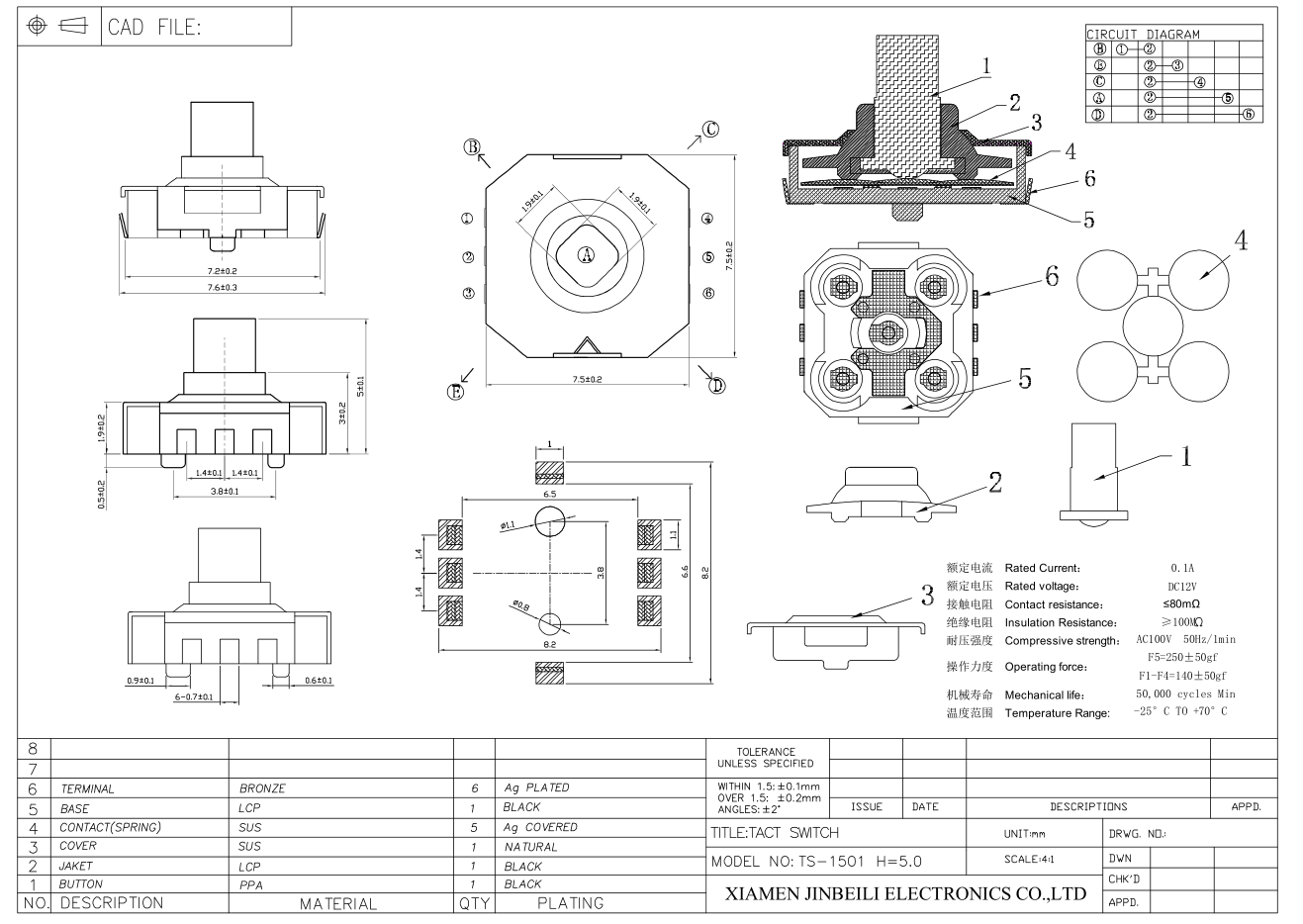

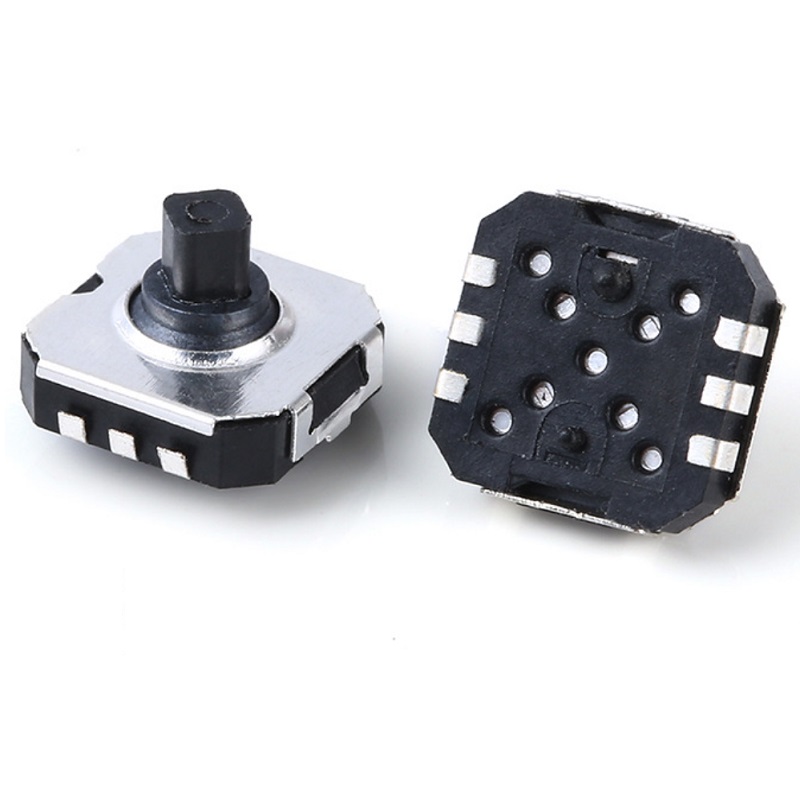

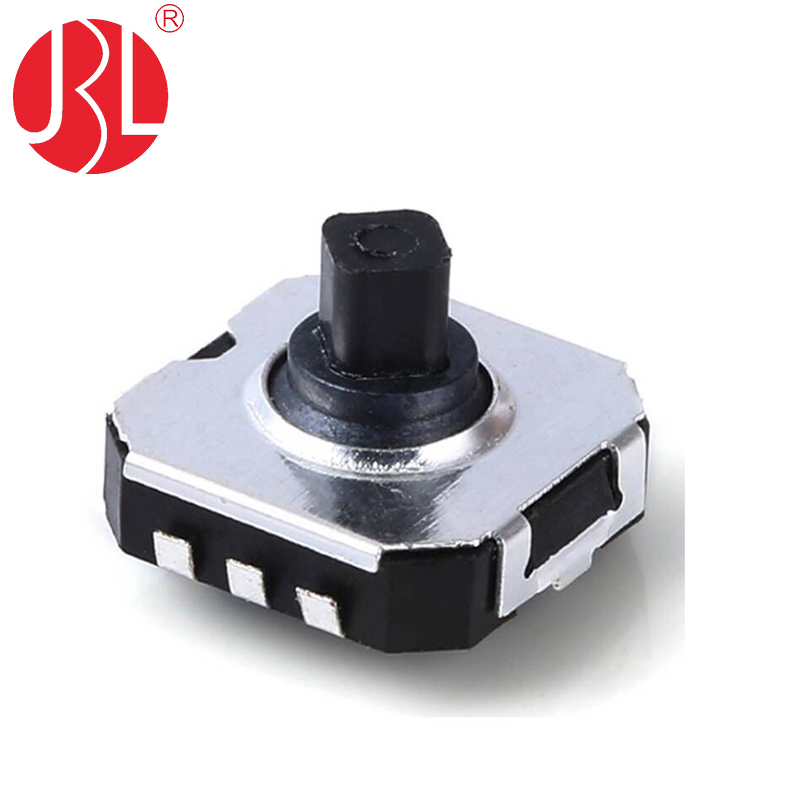

TS-1501 4 Way Direction Navigation Switch
-
-
-
Product Descriptions :
Product name : 4-way directional switch
Features : SMD , Vertical
Power Rated : DC12V 0.05A
Operating force options : 125gf
Actuator height off PCB : 1.5mm / customization available
Operating life : 100000 cycles
Working Temp : -25°C ~ 85°C
Packaging : Tape & Reel
Replacement parts : SKRHAAE010, SKRHABE010, SKRHACE010, SKRHADE010, JS1200ABQ, JS1200AAQ
Datasheets :
Previous:
5 Way Tactile Switch Cap Silicone 5-Way joystick Navigation Switch Cap
Next:
TS-1114 4.6*4.6mm Tactile Switch Surface Mount
4 Way direction joystick 4 Way direction navigation switch 4 Way direction switch 4 Way direction tact switch 4 Way directional navigation switch 4 Way navigation switch JS1200AAQ JS1200ABQ navigation switch SKRHAAE010 SKRHABE010 SKRHACE010 SKRHADE010
Write your message here and send it to us
Product Descriptions :
Product name : 4-way directional switch
Features : SMD , Vertical
Power Rated : DC12V 0.05A
Operating force options : 125gf
Actuator height off PCB : 1.5mm / customization available
Operating life : 100000 cycles
Working Temp : -25°C ~ 85°C
Packaging : Tape & Reel
Replacement parts : SKRHAAE010, SKRHABE010, SKRHACE010, SKRHADE010, JS1200ABQ, JS1200AAQ
Datasheets :
