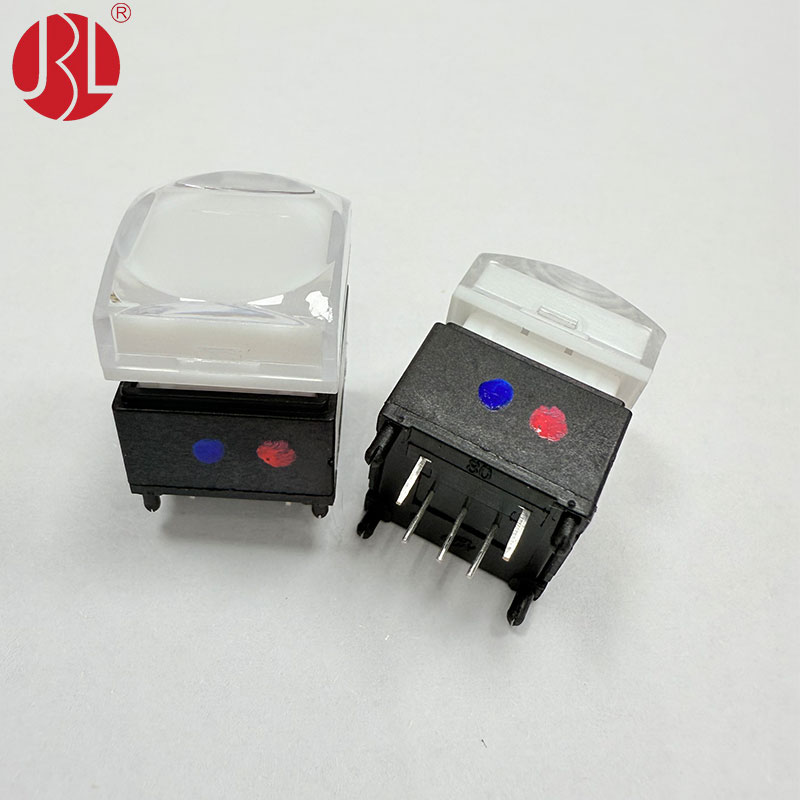

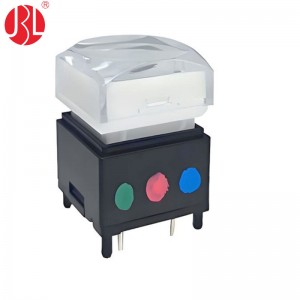

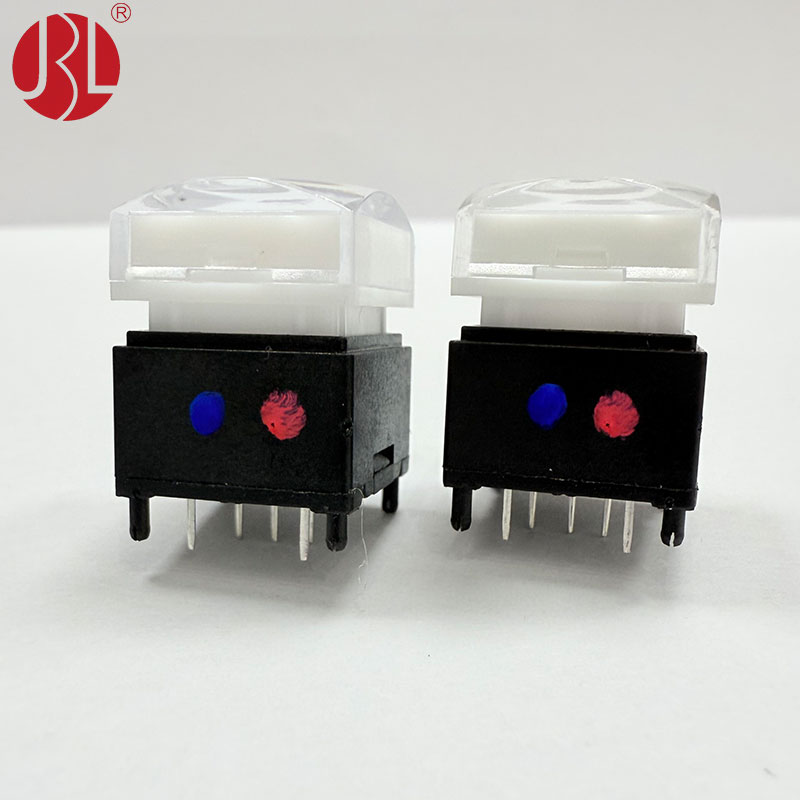

TB15-050-18.8-RB 15*15mm Illuminated Tactile Switch Through Hole
-
-
-
This illuminated tactile switch delivers reliable momentary switching paired with vibrant LED indication, designed for intuitive user interface control. Engineered for vertical through-hole mounting, it ensures robust mechanical and solder connection integrity. The switch features a compact 15mm x 15mm footprint on the PCB, with an overall actuator height of 18.8mm, providing a comfortable, responsive press with a definitive tactile click and audible feedback.
The illumination is provided by a clear, square 15mm x 15mm keycap that evenly diffuses light for excellent visibility. It offers exceptional versatility with a comprehensive range of LED color options, including standard single colors (Red, Blue, Green, Yellow, White), dynamic RGB, and popular dual-color combinations such as Red/Blue (RB) and Red/Green (RG). This allows for flexible status indication, mode signaling, or aesthetic customization.
The integrated LED is power-rated for DC 12V at 50mA, making it suitable for a wide array of low-voltage control applications. Perfect for industrial panels, instrumentation, gaming peripherals, and consumer electronics, this switch combines durable tactile performance with clear, multi-functional visual communication in a single, space-efficient component.
