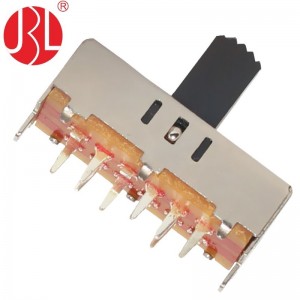

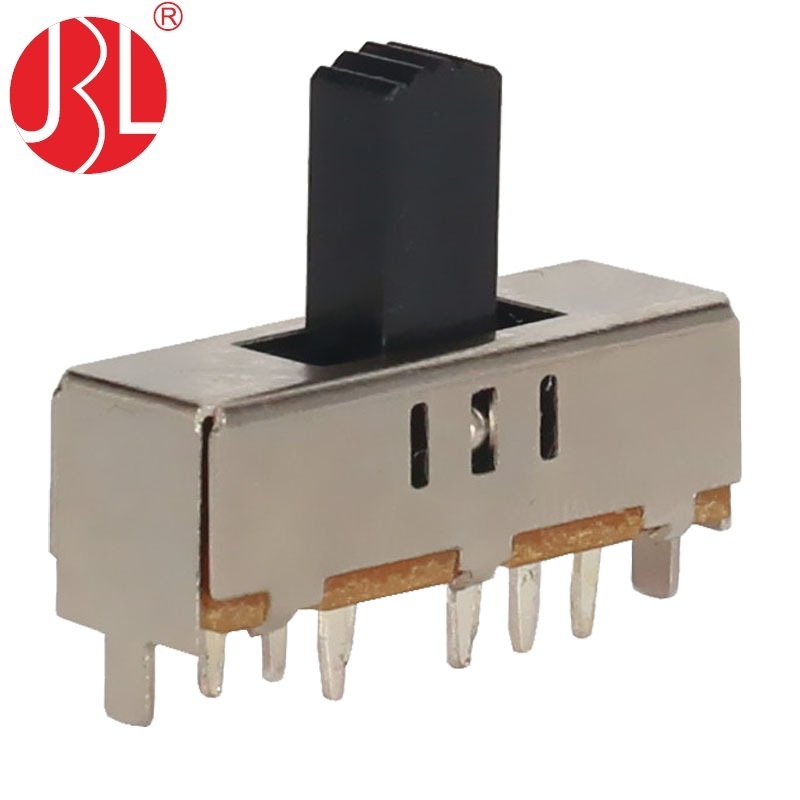

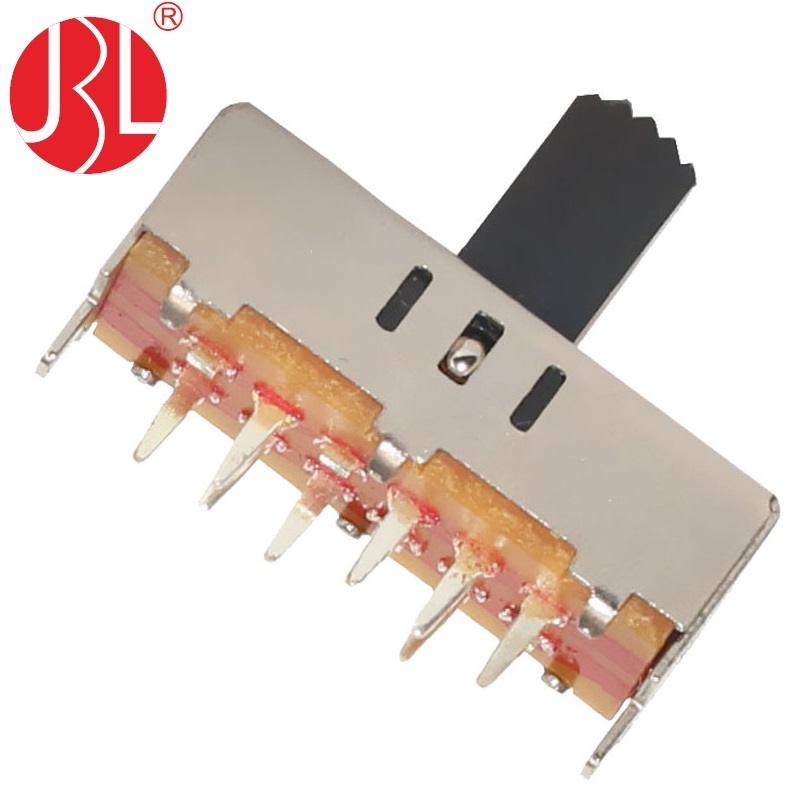

SS-23F07 DP3T Slide Switch Through Hole
-
-
The DP3T slide switch is a versatile electronic component designed for use in a wide range of applications requiring multi-position switching capabilities. This particular model boasts a double pole triple throw (DP3T) configuration, allowing for the independent control of three separate circuits through two sets of contacts, each capable of connecting to three different terminals.
Key Features:
- Type: DP3T (Double Pole Triple Throw) Slide Switch
- Mounting Type: PC Pin Through-Hole – This configuration ensures easy and secure installation onto printed circuit boards (PCBs) by inserting the pins directly into pre-drilled holes and soldering in place.
- Electrical Ratings:
- Voltage: AC 125V – Suitable for use in circuits operating at a maximum alternating current voltage of 125 volts.
- Current: 1.5A – Capable of handling up to 1.5 amperes of current, making it ideal for a variety of electronic devices and systems.
- Travel Distance: 2.5mm – The distance the slide must be moved to complete a circuit change, providing a tactile feedback and ensuring precise control over the switching action.
Previous:
SS-23E29 Panel Mount Slide Switch DP3T Solder Terminals
Next:
SS-23F24 Panel Mount Slide Switch Through Hole
2p3t slide switch 2p3t Slide Switches Through Hole DP3T Slide Switch
Write your message here and send it to us
The DP3T slide switch is a versatile electronic component designed for use in a wide range of applications requiring multi-position switching capabilities. This particular model boasts a double pole triple throw (DP3T) configuration, allowing for the independent control of three separate circuits through two sets of contacts, each capable of connecting to three different terminals.
Key Features:
- Type: DP3T (Double Pole Triple Throw) Slide Switch
- Mounting Type: PC Pin Through-Hole – This configuration ensures easy and secure installation onto printed circuit boards (PCBs) by inserting the pins directly into pre-drilled holes and soldering in place.
- Electrical Ratings:
- Voltage: AC 125V – Suitable for use in circuits operating at a maximum alternating current voltage of 125 volts.
- Current: 1.5A – Capable of handling up to 1.5 amperes of current, making it ideal for a variety of electronic devices and systems.
- Travel Distance: 2.5mm – The distance the slide must be moved to complete a circuit change, providing a tactile feedback and ensuring precise control over the switching action.
