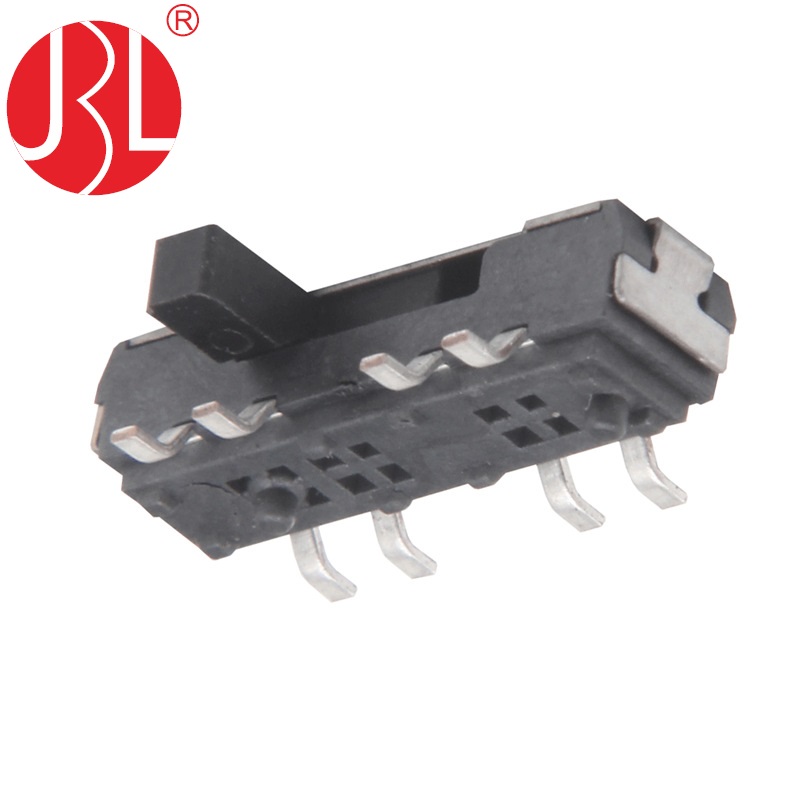

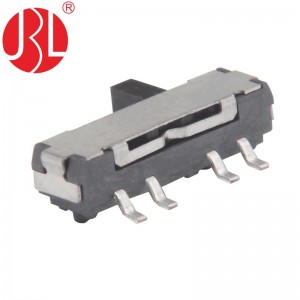

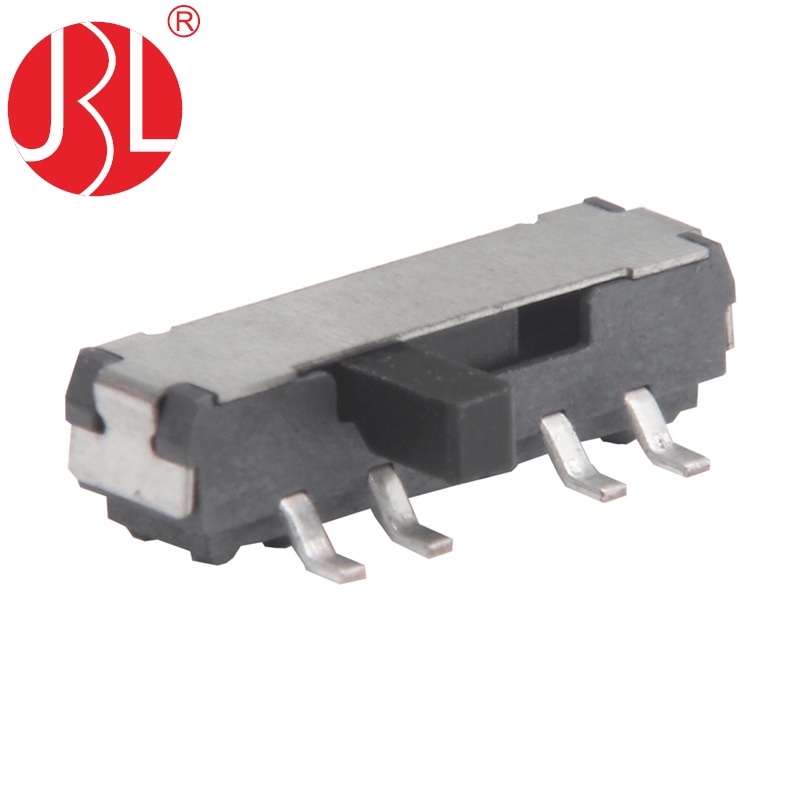

MK-23D20E Miniature Slide Switch DP3T SMT Right Angle
-
-
-
The MK-23D20 is a high-performance 2P3T miniature slide switch designed for SMT applications with a right angle orientation. Rated for DC 30V and 0.1A, it features gull wing leads for easy mounting. Actuator lengths are available from 1.5mm to 4.0mm. Two variants are offered: the MK-23D20 without board guides and the MK-23D20E with two board guides, ensuring versatility for various designs. This switch is an excellent alternative to Nidec Components’ CL-SB-23B-11, CL-SB-23B-12, CL-SB-23B-11T, and CL-SB-23B-12T, providing reliable functionality in compact applications.

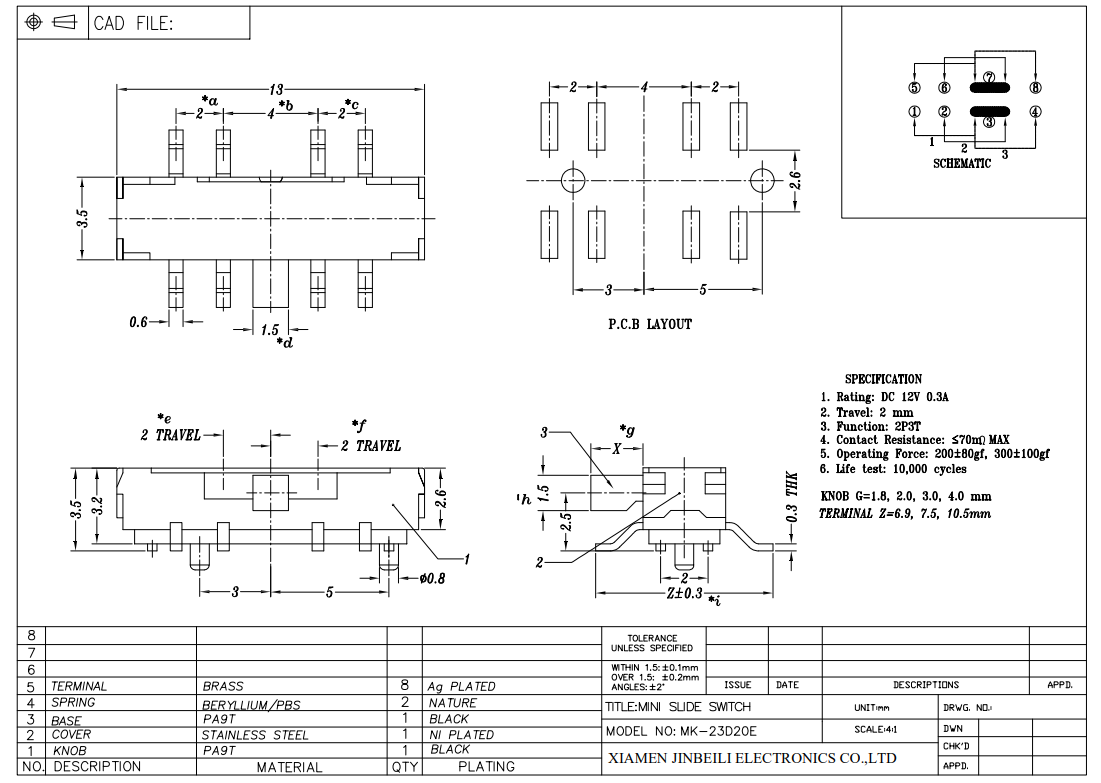

MK-23E20E with 2 Board Guides :

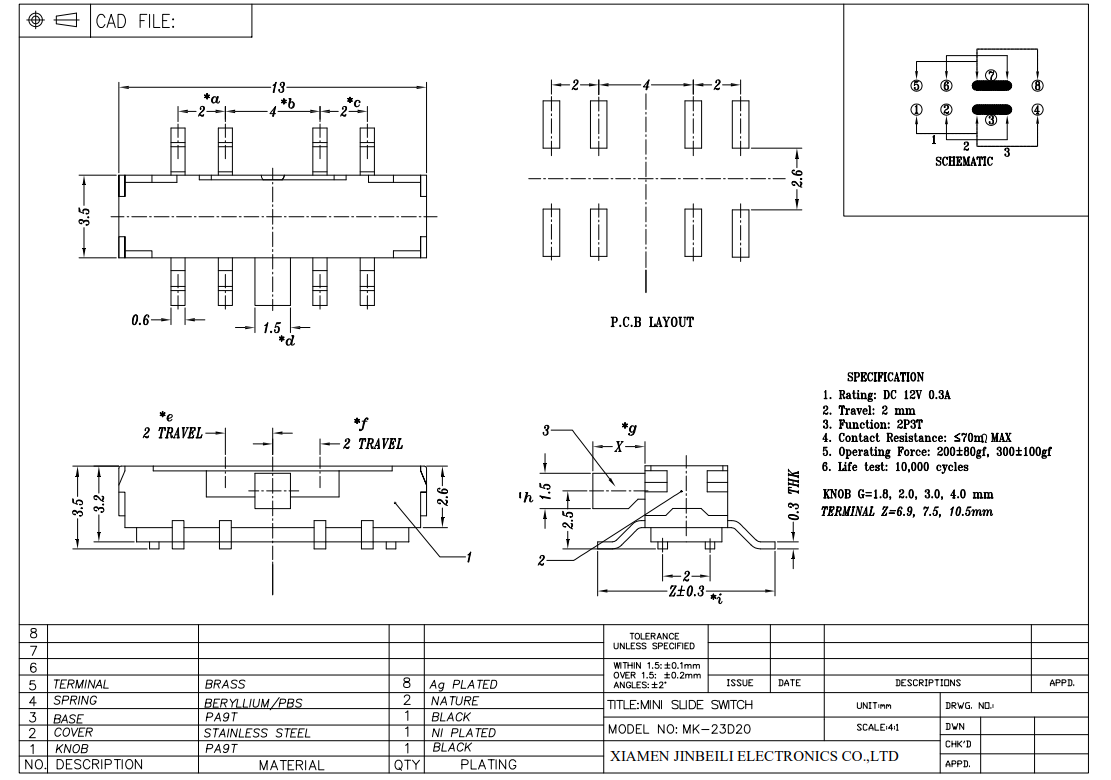

MK-23E20 without Board Guides :
