MK-13D70E-LR SP3T Slide Switch Momentary SMD RA
-
-
-

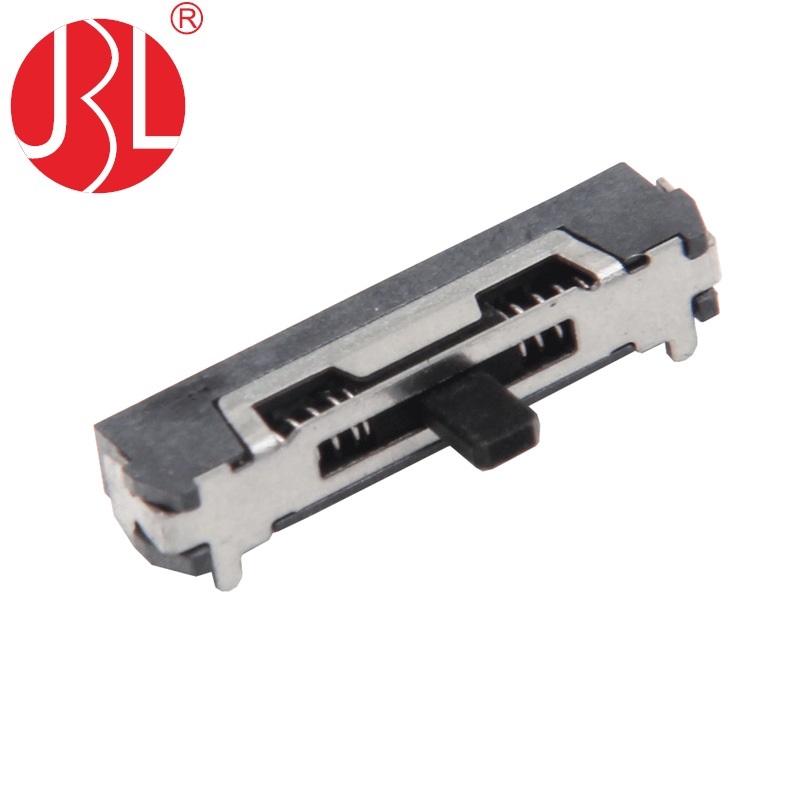

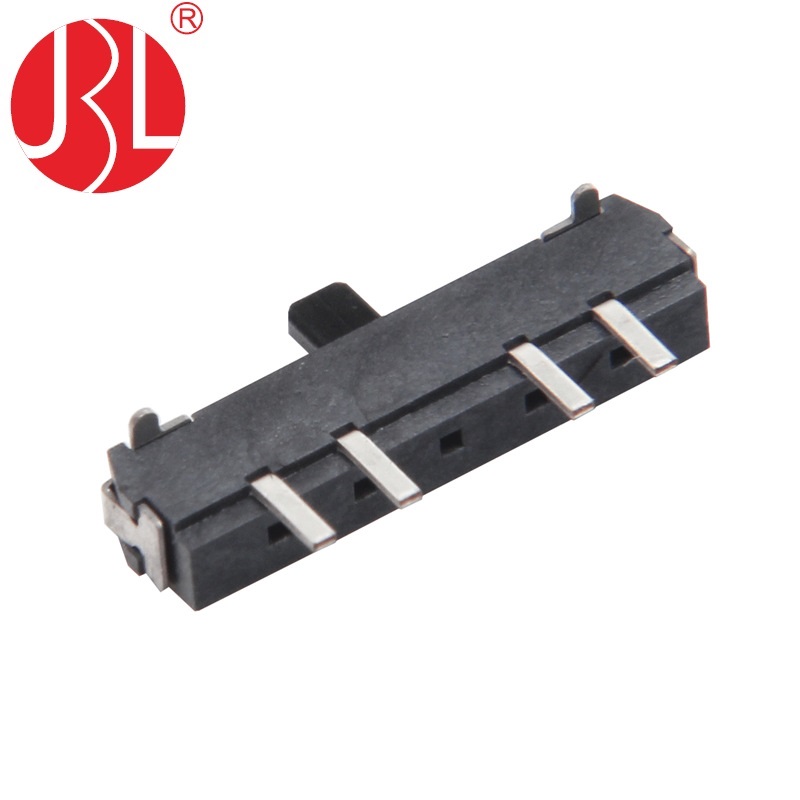

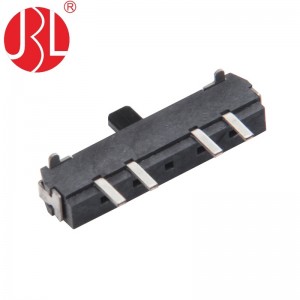

This miniature slide switch features a Single Pole Triple Throw (SP3T) design with a right-angle SMT configuration and a unique reset function. Equipped with two internal springs, it operates in a Mom-on-Mom function for reliable momentary switching. Rated for DC 30V and 0.1A, this switch has a compact outline of 12.65mm x 2mm, making it ideal for space-constrained applications. Its excellent performance positions it as a strong alternative to the Nidec Components Corporation CSS-1312B, CSS-1312TB, and R-666804.
