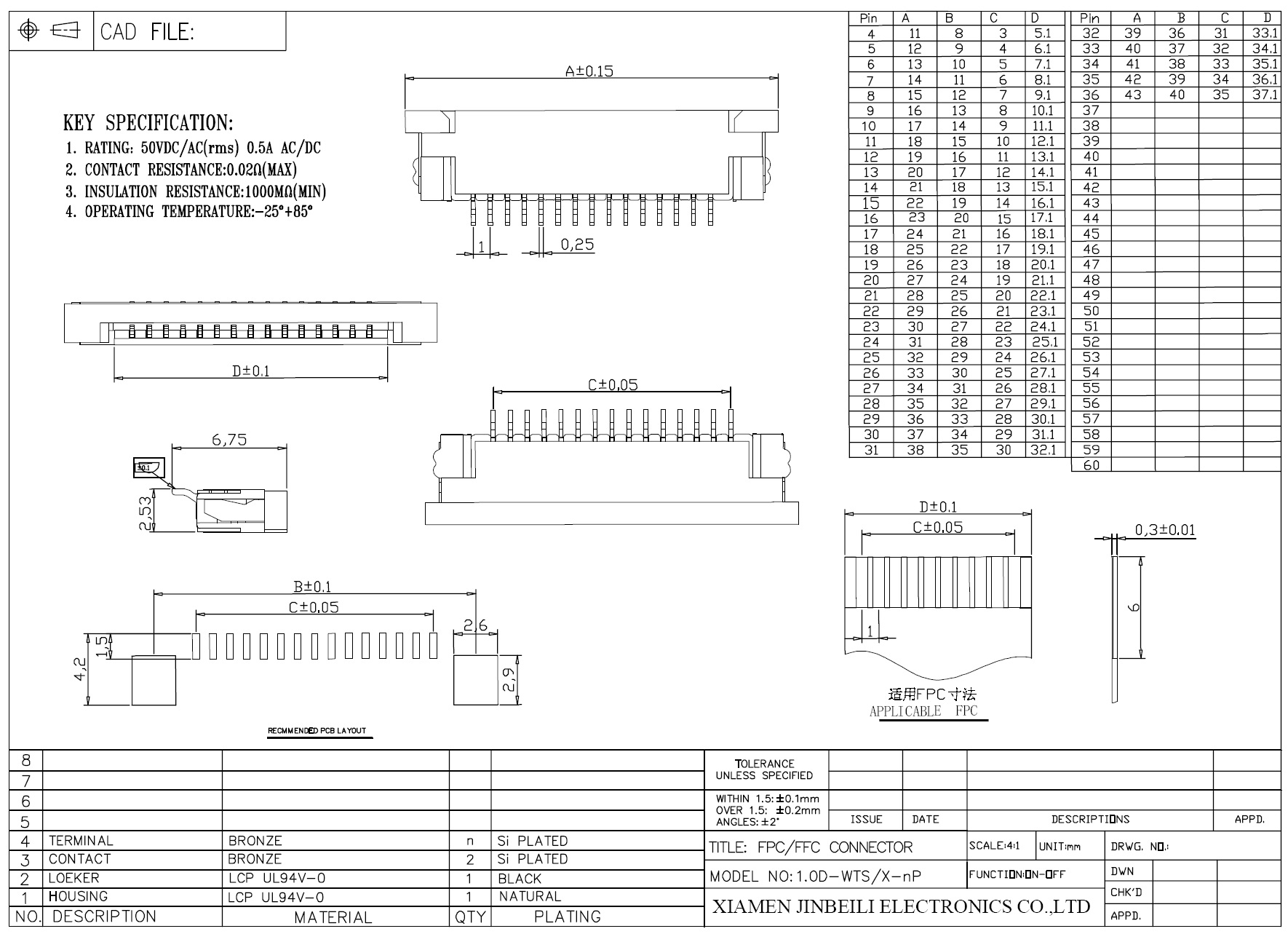

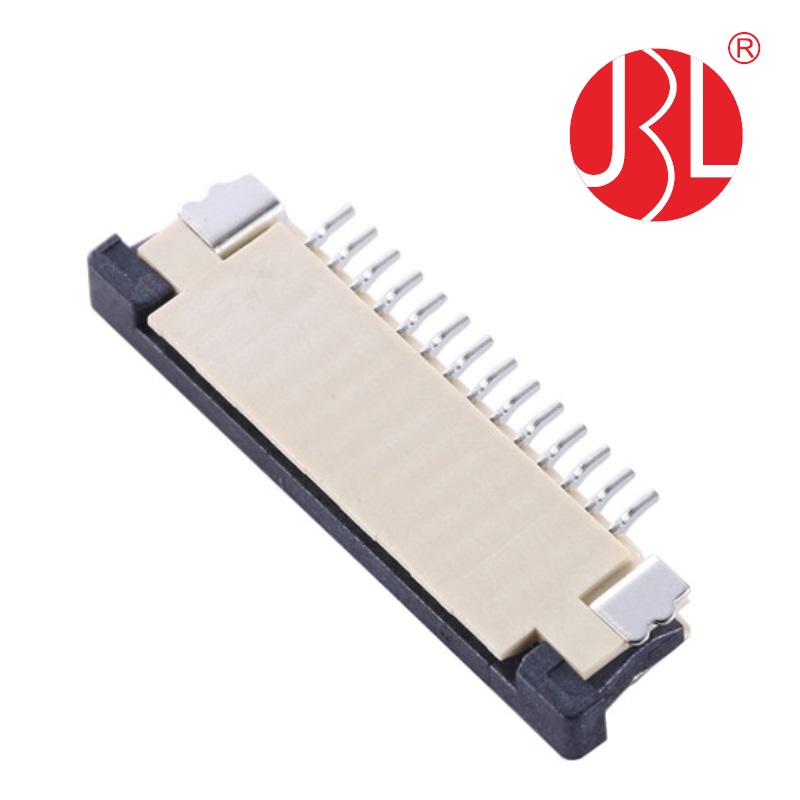

FPC 1.0D-WTX-12P 1.0mm Pitch Horizontal SMT ZIF Type Upper Top Down Contact H2.5 FPC FFC connector

Short Description:

12 Position FFC, FPC Connector Contacts, Top 0.039″ (1.00mm) Surface Mount, Right Angle

Replacement part :

PCA-2FA-26-HL-3, PCA-2FA-12-HL-3, PCA-2FA-30-HL-3, PCA-2FA-10-HL-3, PCA-2FA-24-HL-3, PCA-2FA-20-HL-3, 1735265-8, 2-84952-4, 84952-4, 1-84952-2, 2-84953-5, 2-84952-7, 3-84952-0, 2-84952-6, 84953-8, 2-84953-1, 1-84952-1, 84953-4, 1-84953-6, 1-84953-5, 2-84953-4, 2-84953-0, 84952-9, 2-84952-8, 1-84953-0, 1-84953-2, 1-84952-0, 84953-6, 84953-7, 3-84953-0,

Send email to us Download as PDF

Product Detail

Product Tags

Model Number: FPC-1.0D-WTX-12P
Type: 1mm pitch FPC Connector, Headers and PCB Receptacles
Place of Origin: Guangdong, China
Brand: jinbeili
Packaging: tape and reel, Tape & Reel (TR)
Description: 1MM FPC Connector
Current Rating: 0.5A
Voltage Rating: DC/AC 50V
Height: 2.5mm
Gender: Female
Actuation Type: ZIF
Supplier Type: Original manufacturer
Product Description
Product Name : 1mm Pitch FPC Connector
Rating : 50V DC/AC , 0.5A
Mounting Angle : Right angle SMT
Position number : 2 to 25 Pins Customizable as buyer’s request
Applicable Cable : 0.3mm flat Proper cable
Termination Style : SMD / SMT
Housing: LCP
Contact Material : Phosphor Bronze with Gold Plating
Insulation Resistance: 1000MΩ（MIN）
Contact Resistance : 0.02Ω（MAX）
Dielectric Withstanding Voltage: 500V AC for 1 min
Operation Temperature Range : -25°C ~ +85°C
