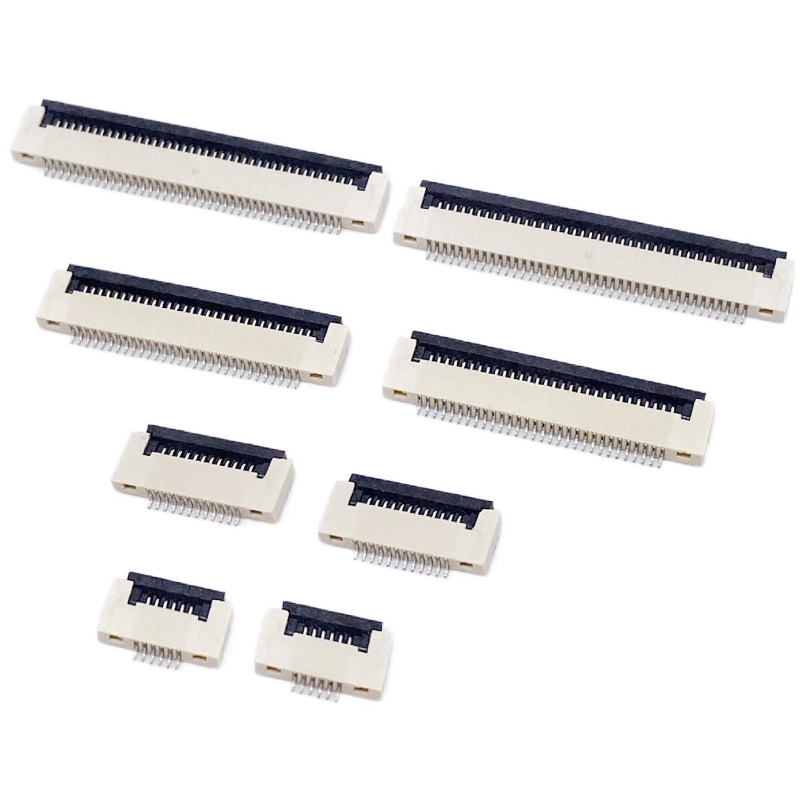

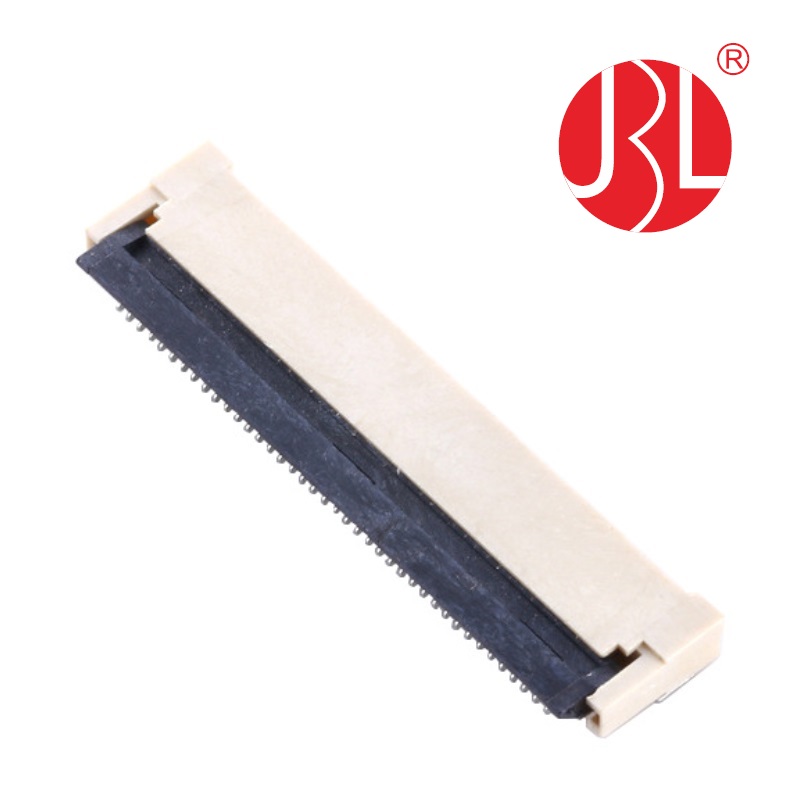

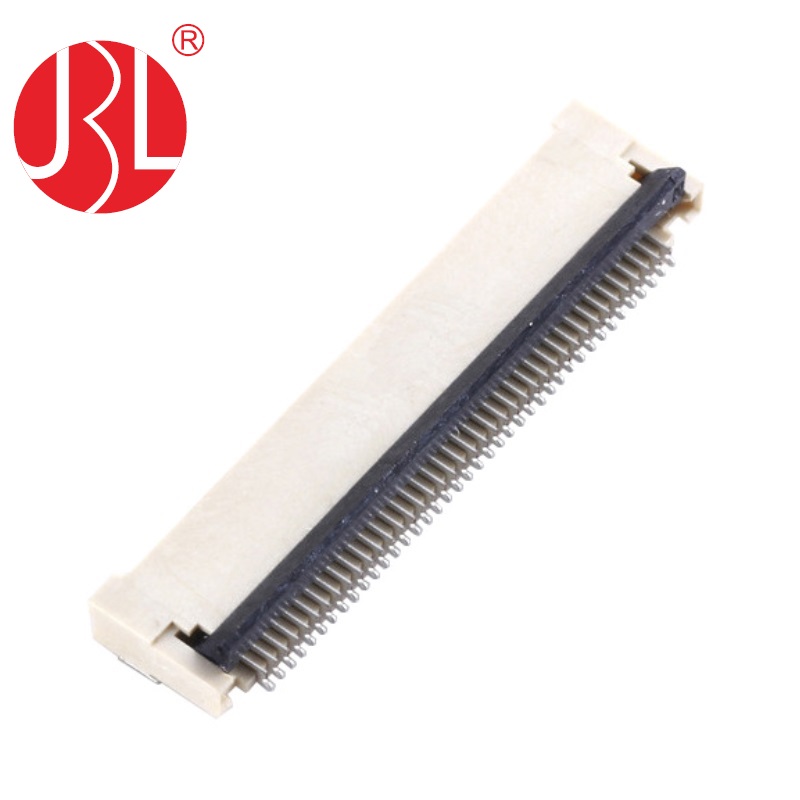

FPC-0.5G-WTX-nP-H2.0 FPC Connector 0.5mm Pitch SMT Right Angle

Short Description:

Flip Lock FPC Connector 0.5mm Pitch Bottom Contact SMD Right Angle Height 2.0mm

Item: FPC Connector

Contact: Bottom Contact

Mount: SMT Right Angle

Circuits: 4 ways to 44 ways

Lock: Flip Lock

Send email to us Download as PDF

Product Detail

Product Tags

Model Number: 0.5G-WTX-nP-H2.0
Type: FFC, FPC Connector Contacts, Bottom 0.020″ (0.50mm) Surface Mount, Right Angle
Place of Origin: Xiamen, China
Brand: jinbeili
Packaging: tape and reel, Tape & Reel (TR)
Description: 0.5MM FPC Connector
Current Rating: 0.5A
Voltage Rating: DC/AC 50V
Height: 1.2mm
Gender: Female
Actuation Type: Flip Lock
Supplier Type: Original manufacturer
Product Description
Product Name : 0.5mm Pitch FPC Connector
Rating : 50V DC/AC , 0.5A
Mounting Angle : Right angle SMT
Position number : 2 to 50 Pins Customizable as buyer’s request
Applicable Cable : 0.3mm flat Proper cable
Termination Style : R/A SMT
Housing: LCP
Contact Material : Phosphor Bronze with Gold Plating
Insulation Resistance: 1000MΩ（MIN）
Contact Resistance : 0.02Ω（MAX）
Dielectric Withstanding Voltage: 500V AC for 1 min
Operation Temperature Range : -25°C ~ +85°C
