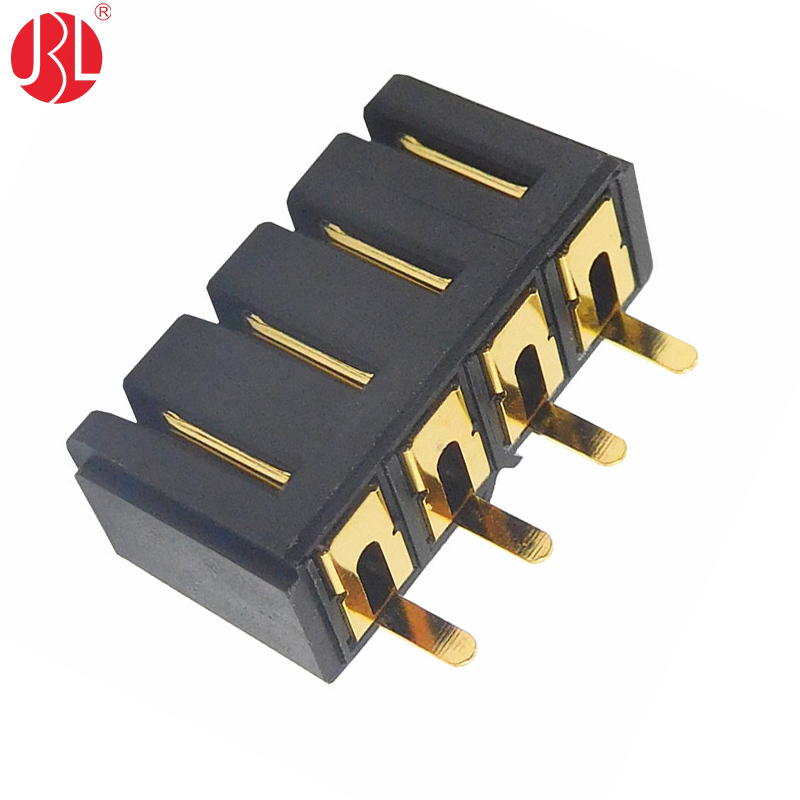

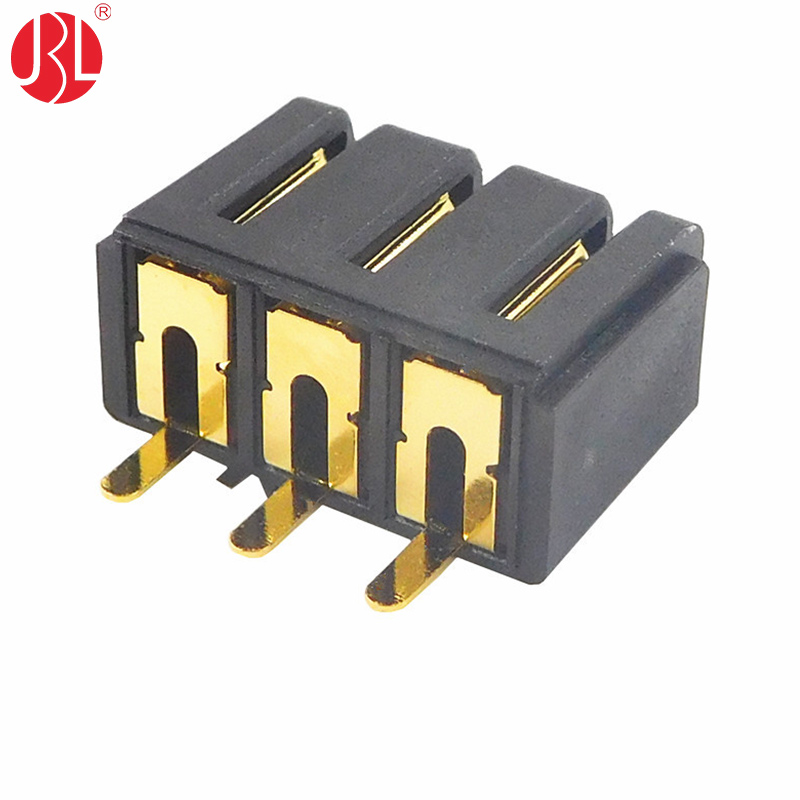

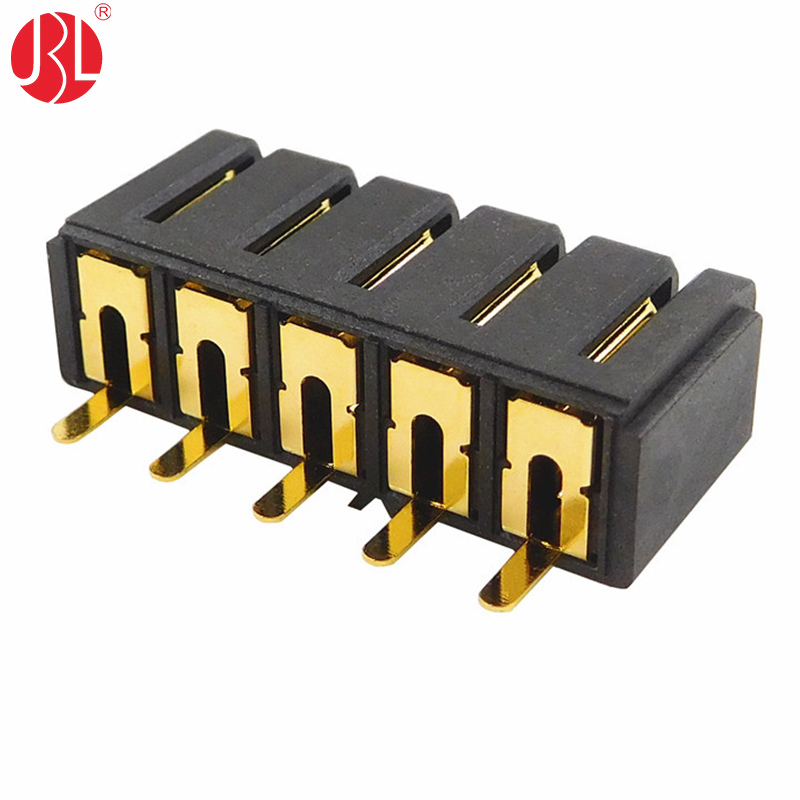

BT-500-C01F-S2-nP 5.0mm Pitch Female Blade Type Power Connector
-
-
-
-
This female blade-type power connector is designed for secure and high-current power connections, featuring a 5.0mm pitch for reliable spacing between terminals. It serves as a battery socket or power input/output interface, compatible with male blade connectors. The connector is constructed with through-hole mounting (THT) for sturdy PCB attachment, ensuring mechanical stability and efficient soldering.
Available in 2-way, 3-way, 4-way, and 5-way configurations, it offers flexibility for various power distribution needs. The connector is rated for DC 30V and 10A, making it suitable for medium-power applications such as battery packs, power supplies, and industrial equipment.
Key Features:
Blade-type female contacts for secure mating with male connectors.
5.0mm pitch for safe spacing and reduced risk of short circuits.
Through-hole design for robust PCB mounting.
High-current handling (10A per contact) with a voltage rating of 30V DC.
Multiple position options (2P to 5P) for versatile circuit designs.
Durable housing typically made of heat-resistant thermoplastic.
Ideal for battery connections, power tools, LED drivers, and automotive electronics, this connector ensures reliable power transmission in compact and high-demand environments.
