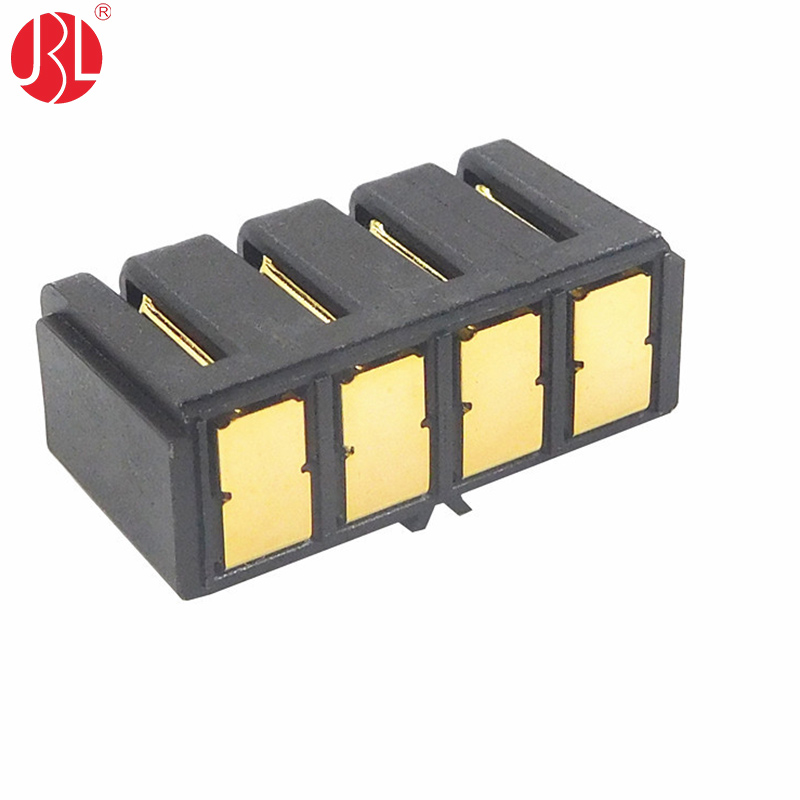

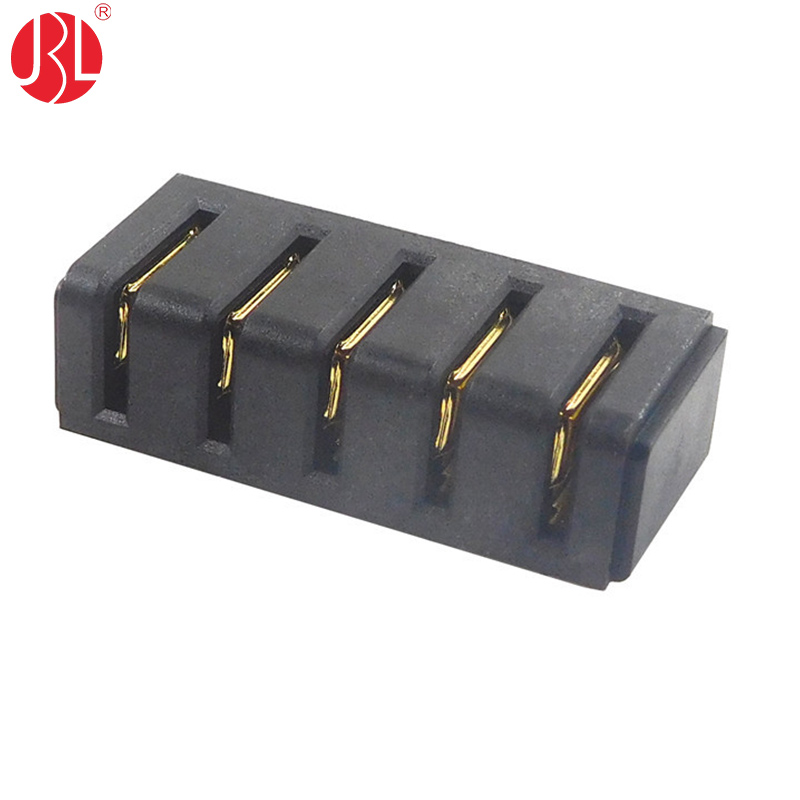

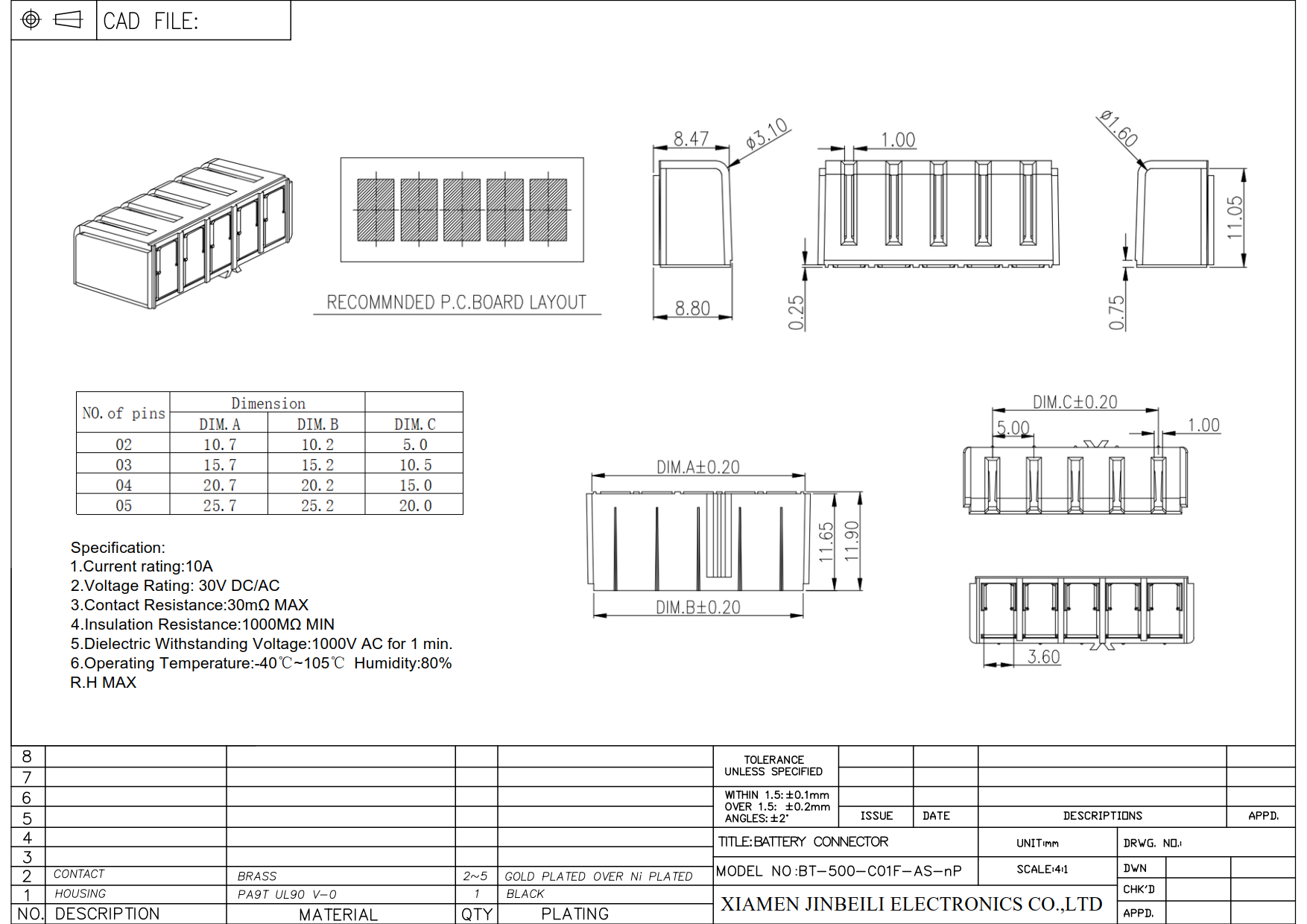

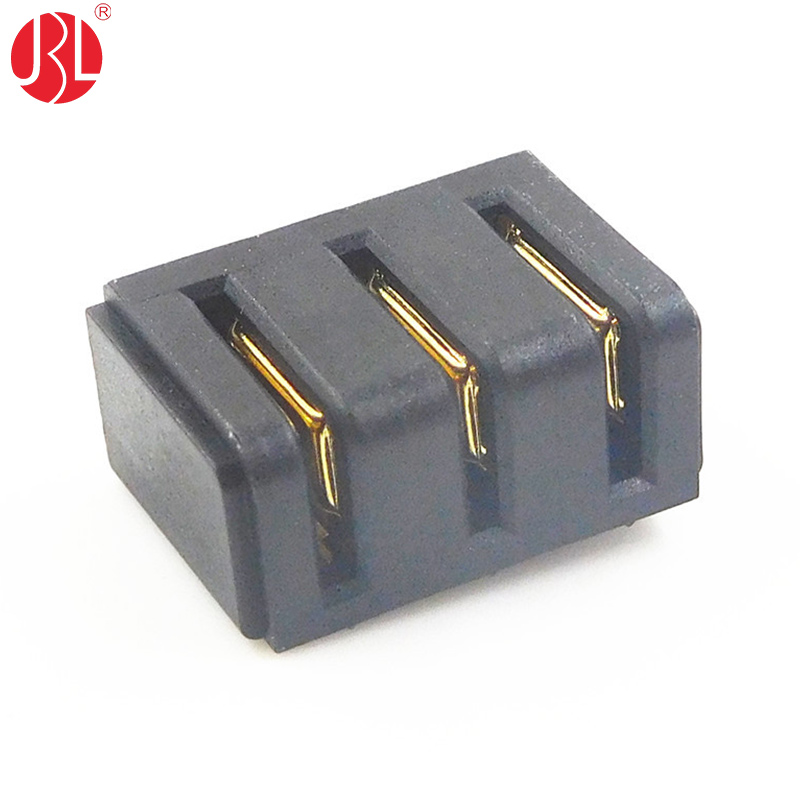

BT-500-C01F-AS-nP 5.0mm Pitch Female Blade Type Power Connector Surface Mount
-
-
-
-
This female blade-type power connector is a surface-mount (SMT) battery socket designed for high-current PCB applications. With a 5.0mm pitch, it ensures safe terminal spacing while maintaining a compact footprint. The connector is engineered for secure mating with male blade terminals, providing a stable power interface for DC 30V, 10A applications.
Available in 2-way, 3-way, 4-way, and 5-way configurations, it offers flexibility for various power distribution needs in space-constrained designs. The SMT (surface-mount) soldering allows for efficient PCB assembly, reducing manual labor compared to through-hole alternatives while maintaining strong mechanical retention.
Key Features:
1, Surface-mount (SMT) design for automated PCB assembly and space-saving layouts.
2, 5.0mm pitch for secure connections and reduced arcing risks.
3, High-current rating (10A per contact, 30V DC) for power-hungry applications.
4, Multiple position options (2P–5P) for versatile circuit designs.
5, Robust female blade contacts ensuring reliable mating and vibration resistance.
6, High-temperature-resistant housing for durability in demanding environments.
Typical Applications:
Battery packs & power modules
LED drivers & industrial controls
Consumer electronics & automotive power systems
Robotics & portable devices
This connector ensures efficient power transmission while optimizing PCB space in modern electronics.
