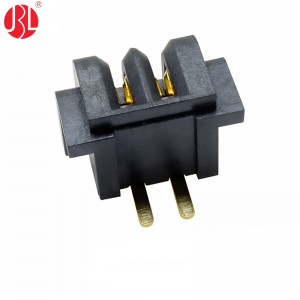

BT-200-A11F-CL-2P 2.0mm Pitch Female Blade Type Power Connector Surface Mount
-
-
-
-
-
-
-
-
This high-density female blade-type power connector features a compact 2.0mm pitch, making it ideal for space-constrained PCB designs while supporting high-current (10A per contact, 30V DC) applications. Designed as a surface-mount (SMT) battery socket, it ensures reliable mating with male blade connectors and is optimized for automated assembly.
Available in 2-way to 16-way configurations, this connector provides exceptional flexibility for multi-circuit power distribution in complex electronics. The SMT design enhances manufacturing efficiency, reduces PCB footprint, and improves mechanical stability under vibration or shock.
Key Features:
1, Ultra-compact 2.0mm pitch for high-density PCB layouts.
2, Surface-mount (SMT) terminals for automated soldering and space savings.
3, High-current capacity (10A per contact, 30V DC) for power-intensive applications.
4, Extended position options (2P–16P) for scalable power distribution.
5, Secure female blade contacts ensuring low insertion force and stable connections.
6, High-temperature-resistant housing for durability in harsh environments.
Typical Applications:
Battery management systems (BMS)
Industrial automation & robotics
Telecom infrastructure & networking devices
Medical equipment & portable electronics
Automotive power modules & LED lighting
This connector delivers high-power transmission in a miniaturized design, making it perfect for modern, compact electronic systems.
