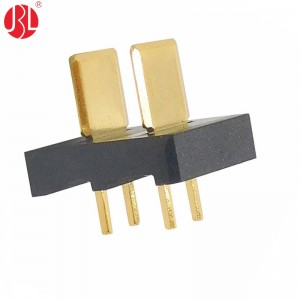

BT-500-C01M-R2-nP 5.0mm Pitch Blade Type Power Connector
-
-
-
-

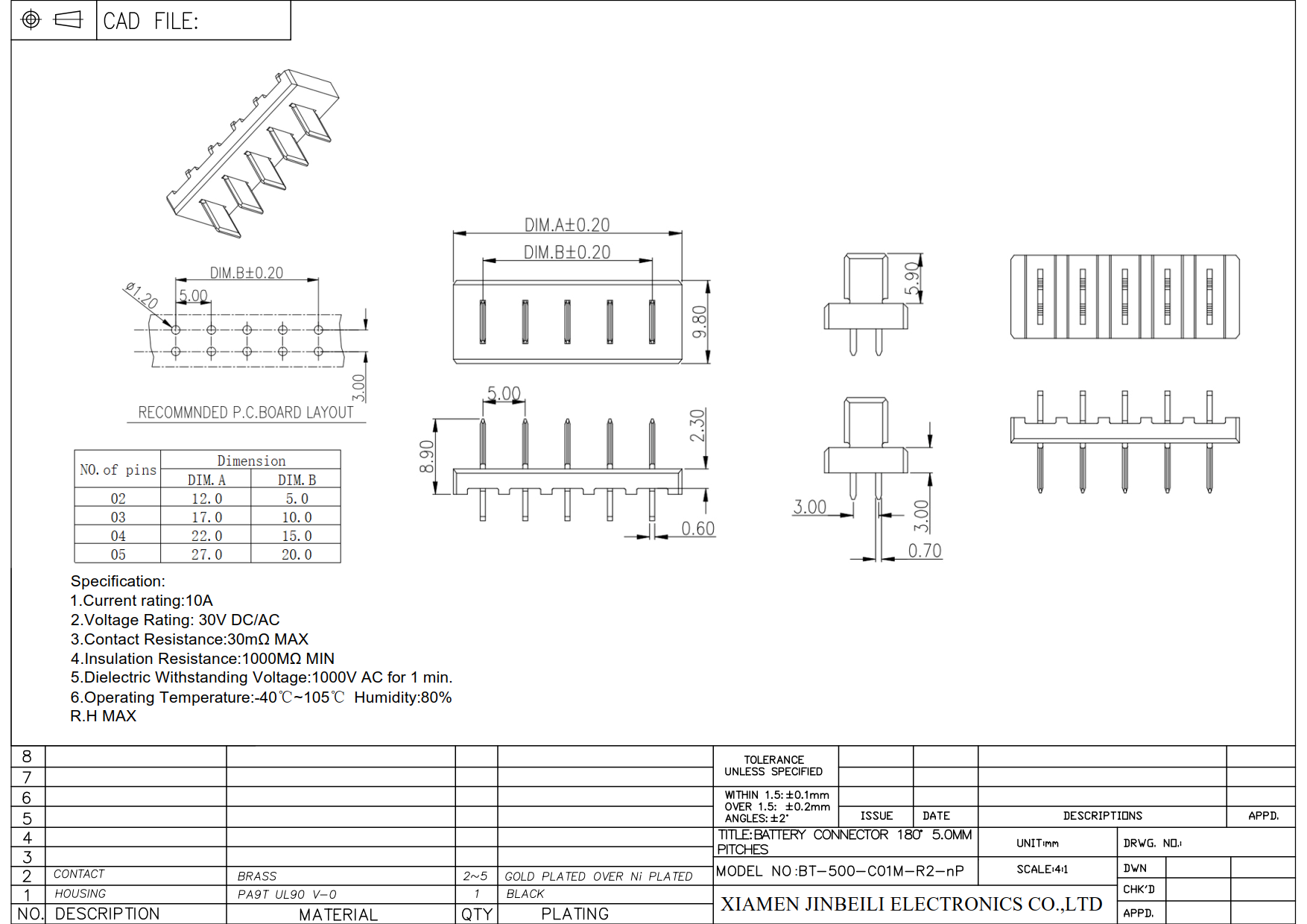

The blade-type power connector is a robust and reliable solution designed for efficient power distribution in electronic systems. This male blade-type power connector header features a 5.0mm pitch, ensuring compatibility with a variety of mating connectors while maintaining a secure and stable connection. With a contact length of 5.9mm, it provides ample surface area for optimal electrical conductivity, minimizing resistance and ensuring consistent power delivery.
Engineered for through-hole mounting, this connector offers excellent mechanical stability, making it ideal for applications that may experience vibration or movement. The through-hole design ensures a strong bond with the PCB, enhancing durability and longevity.

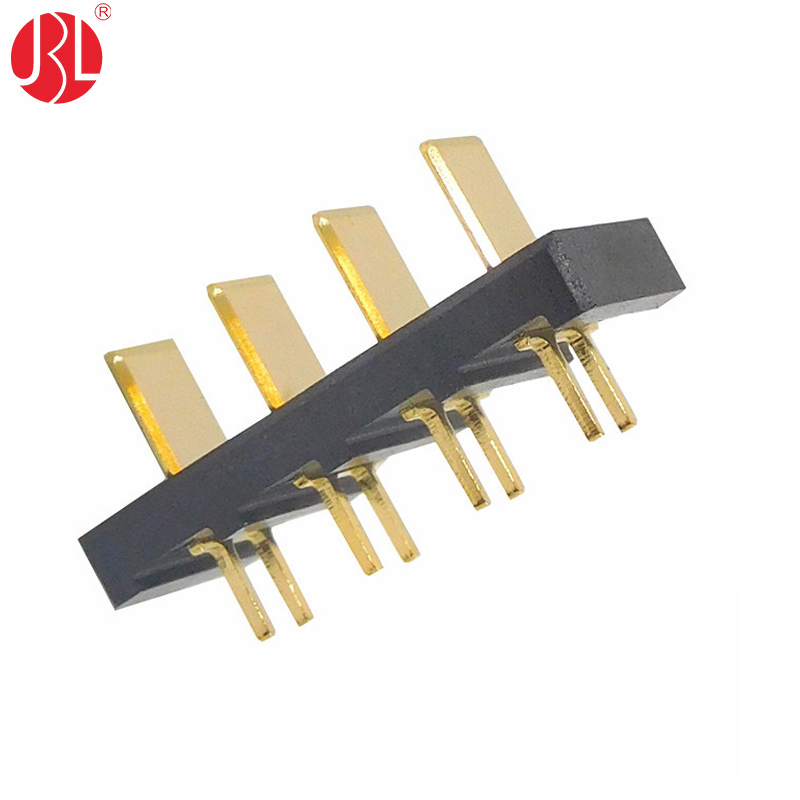

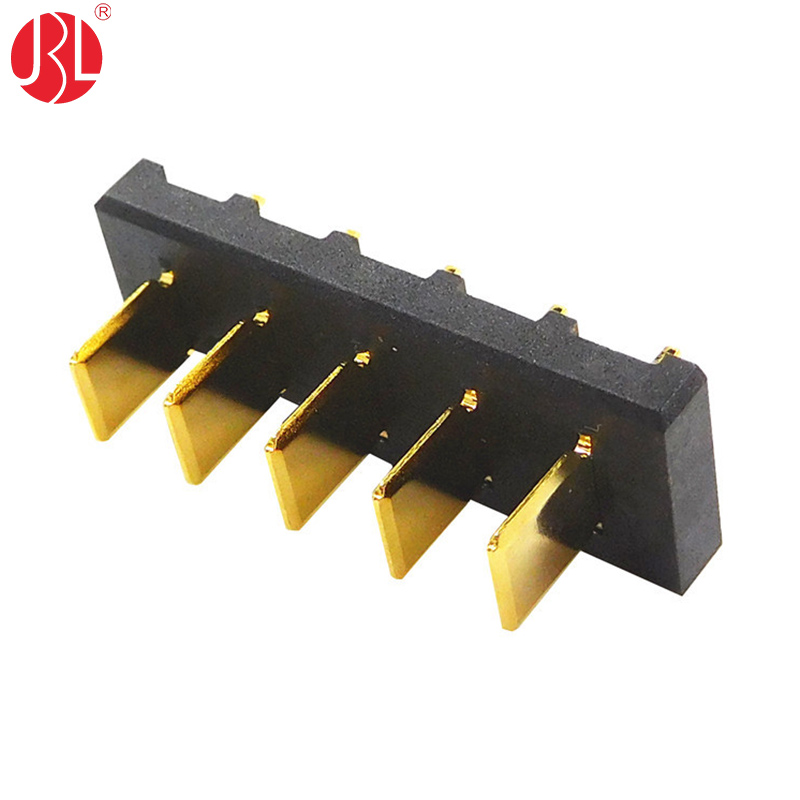

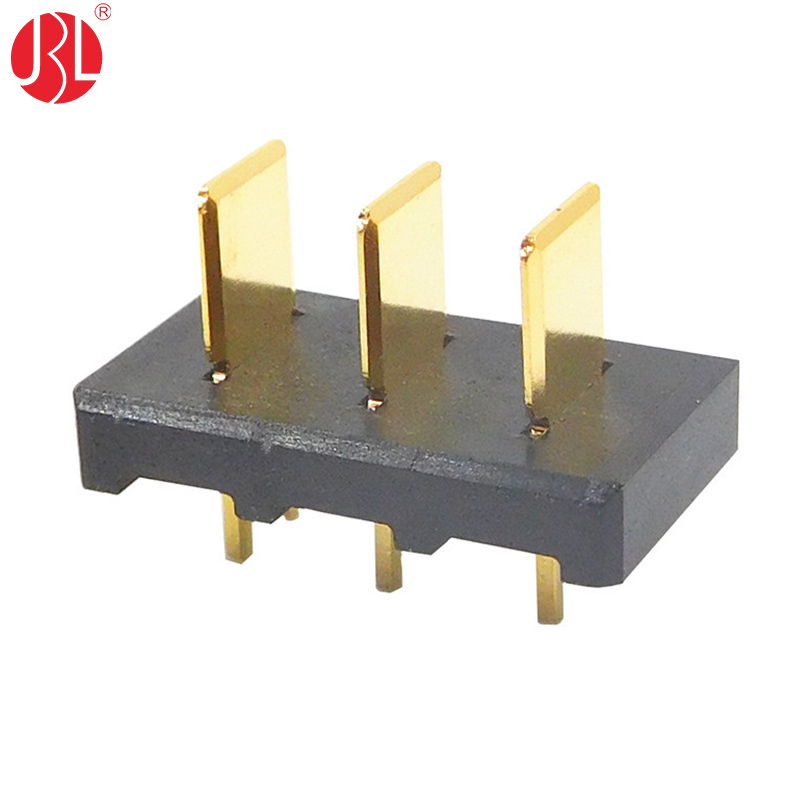

Available in multiple position configurations—2-way, 3-way, 4-way, and 5-way—this connector allows for flexible circuit designs tailored to specific power requirements. Whether you need to connect a single power source or multiple circuits, this connector provides the adaptability needed for efficient power management.
Rated for DC 30V at 15A, it is suitable for medium-power applications, delivering reliable performance without overheating or voltage drops. This makes it perfect for battery-powered devices, consumer electronics, and industrial equipment. Overall, this blade-type power connector combines functionality, durability, and ease of use, making it an excellent choice for engineers and designers seeking a dependable power connection solution.
Previous:

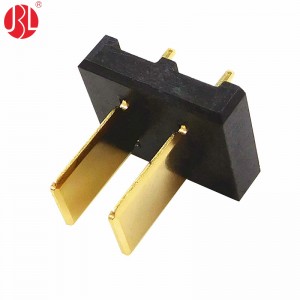

BT-500-C01M-R3A-nP 5.0mm Pitch Male Blade Type Power Connector
