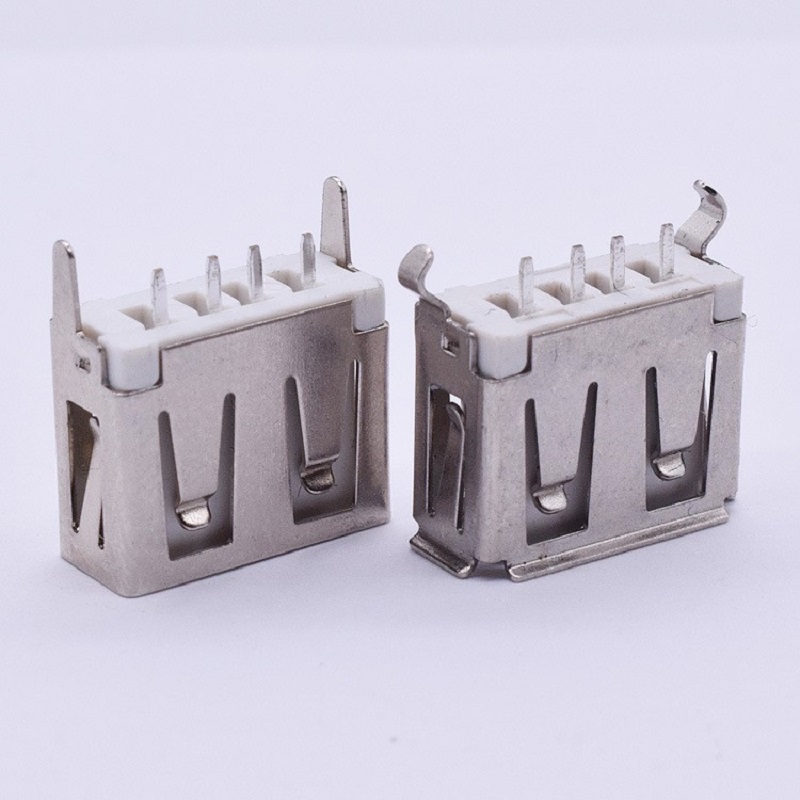

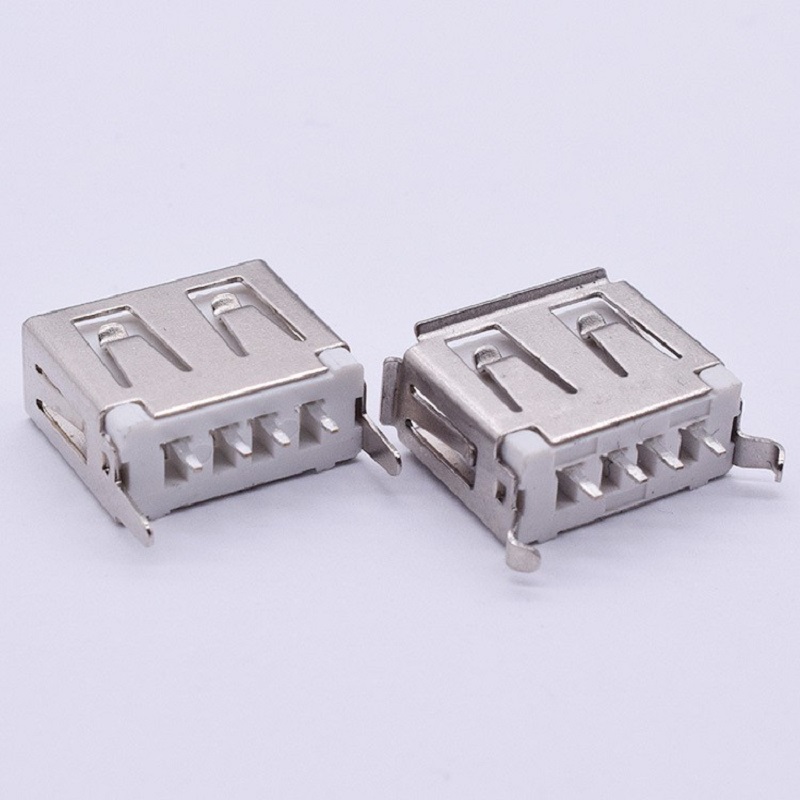

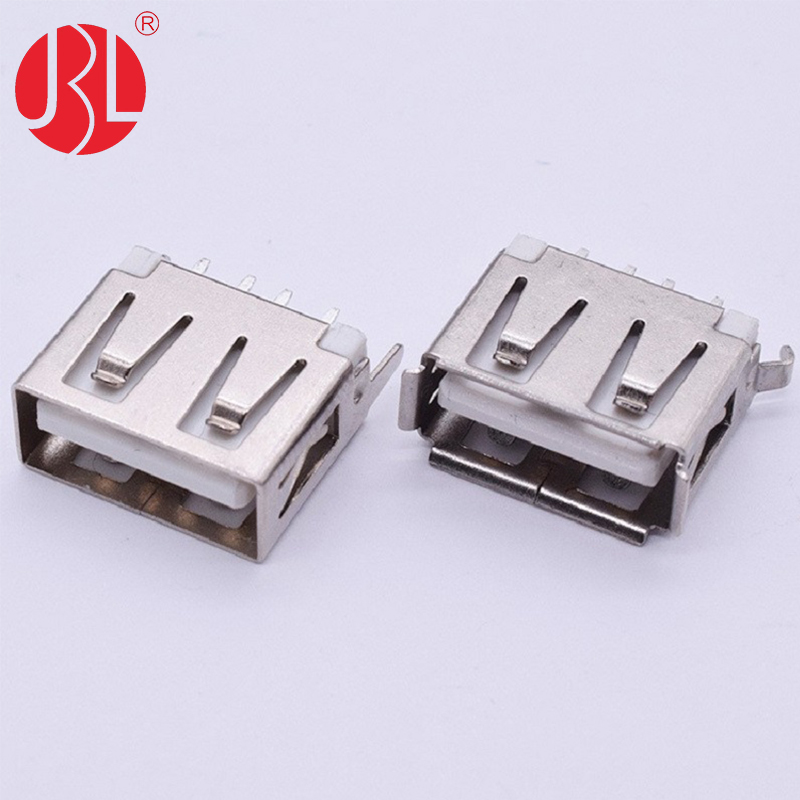

USB-A-SD11J-D-2P Low Profile USB 2.0 Type A Connector Through Hole
-
-
This standard USB 2.0 Type-A female jack offers a reliable, through-hole mounting solution for vertical integration into PCBs. Designed with a low-profile form factor of just 10.5mm in height, it is ideal for space-constrained applications where a vertical orientation is required. The socket features the traditional 4-pin configuration, supporting full USB 2.0 data transfer rates alongside a power rating of DC 30V at 1.5A. Its robust female connector ensures secure engagement with standard USB plugs, making it suitable for diverse host devices, including industrial motherboards, chargers, and embedded systems. The through-hole vertical design provides strong mechanical retention and stable soldering during assembly. Engineered for durability, this jack maintains consistent performance for data and power delivery up to its specified current rating. With a compact footprint and a height of 10.5mm, it balances accessibility with efficient use of vertical board space. This component is a practical choice for designers seeking a standard, low-height USB 2.0 interface with dependable electrical characteristics.

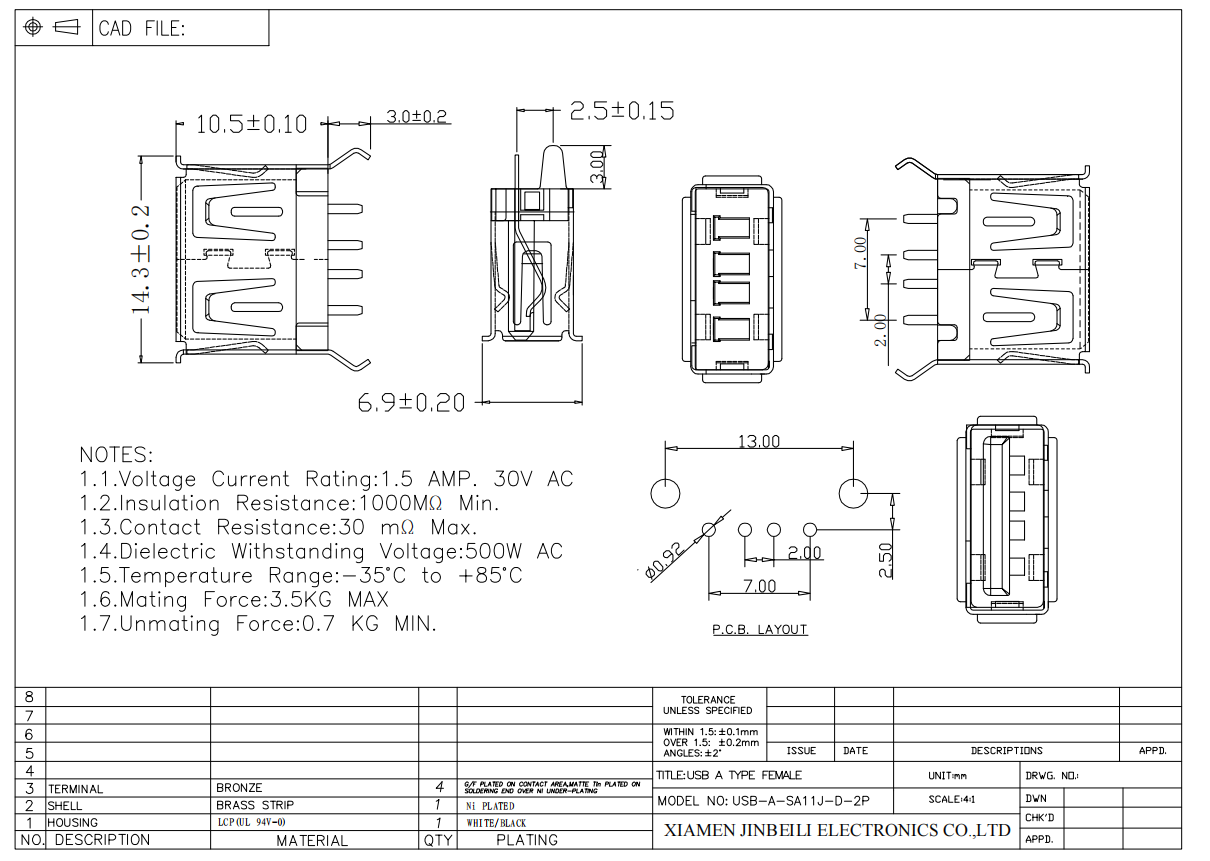

Datasheets :
