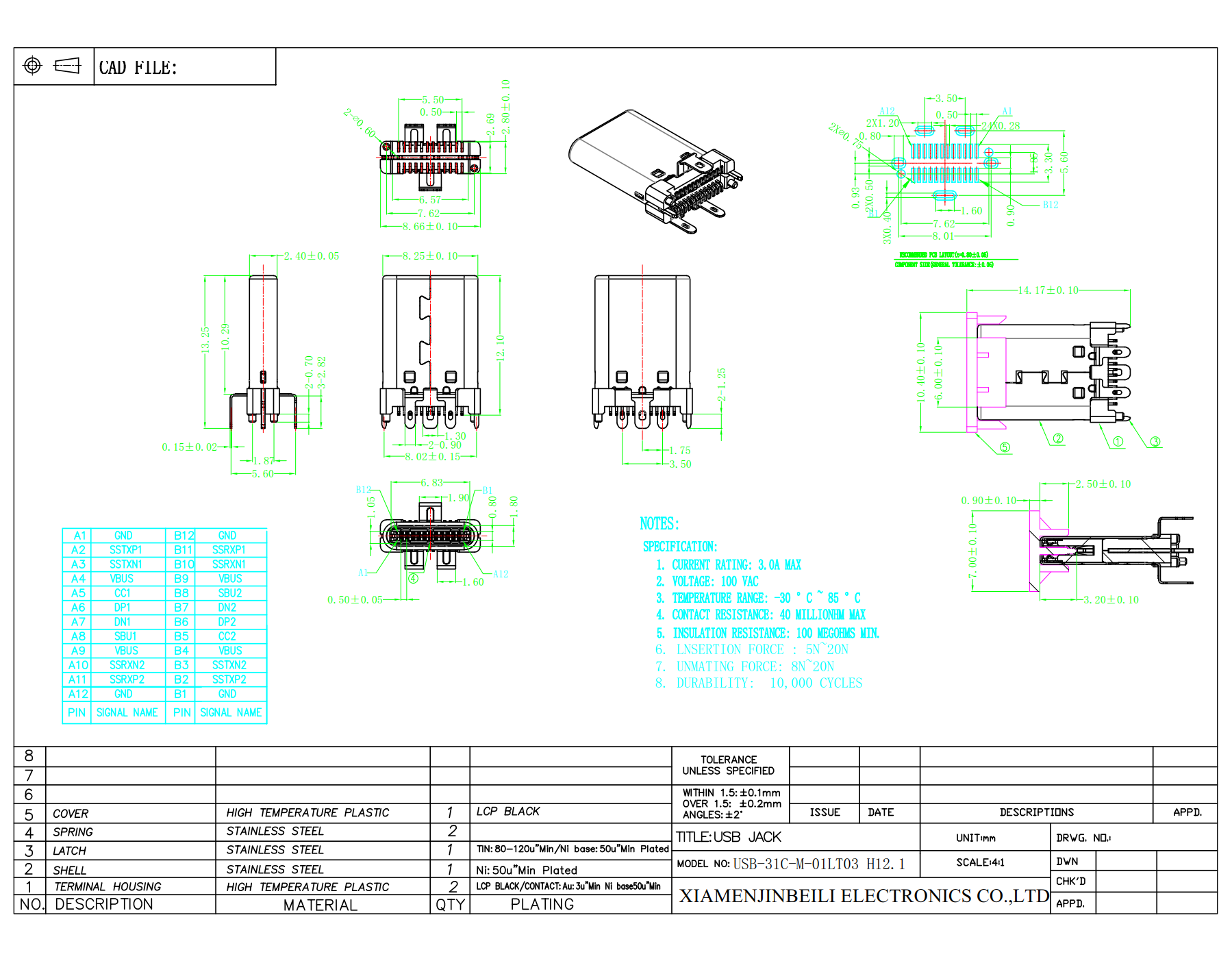

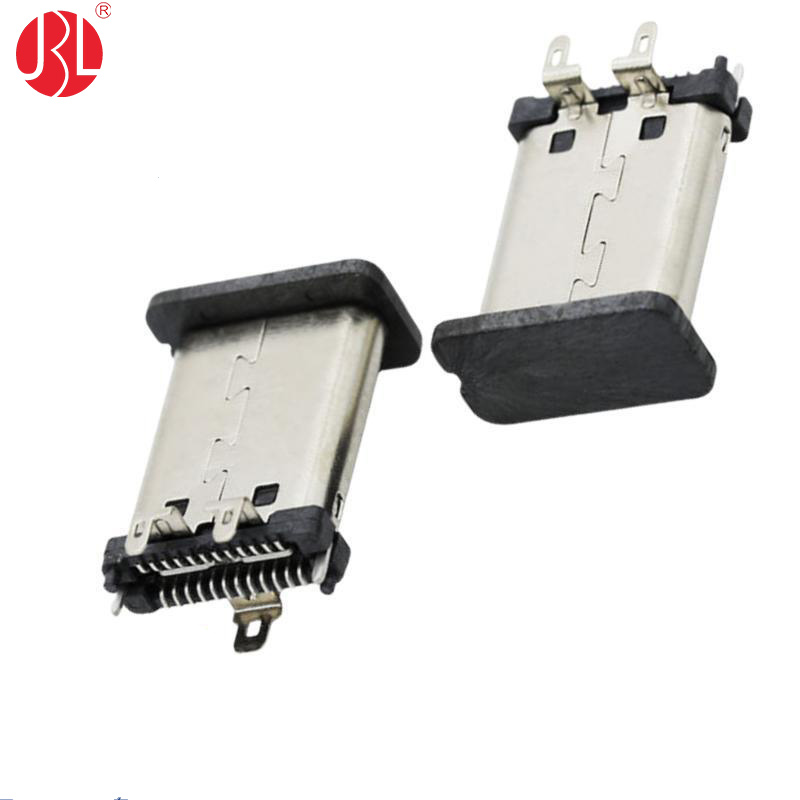

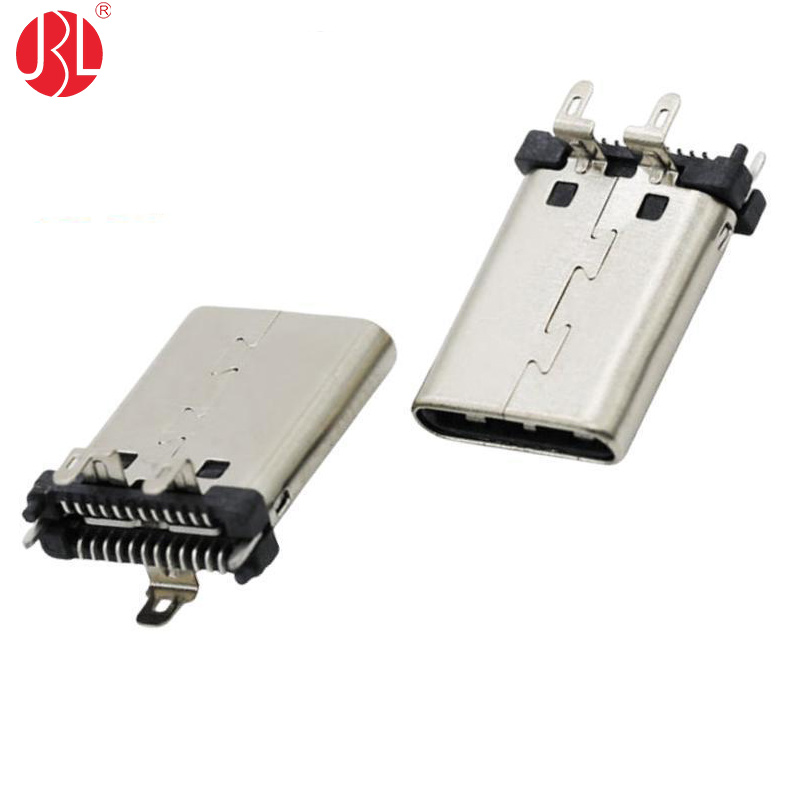

USB-31C-M-01LT03 H12.1 USB 3.1 Type C Male Connector Surface Mount
-
-
This is a high-performance USB 3.1 Gen 2 Type C Male connector, designed for robust data transfer and power delivery in demanding applications. Its 24-pin configuration fully supports the USB 3.1 standard, enabling blazing-fast data speeds up to 10 Gbps, along with alternate modes like DisplayPort and power delivery of up to 100W.
A key distinguishing feature is its extended body length of 12.1mm. This “long body” design provides superior mechanical stability and PCB retention, making it ideal for applications subject to frequent mating cycles, physical stress, or where enhanced strain relief is paramount. The connector offers versatile mounting with both Surface Mount (SMT) and Through-Hole (THT) termination styles in a vertical orientation. This dual approach ensures a strong, reliable solder joint to the motherboard, capable of withstanding significant mechanical force.
The reversible Type-C design guarantees user-friendly, foolproof insertion. This combination of high-speed data capability, robust power handling, and exceptional physical durability makes this connector perfect for industrial equipment, specialized instrumentation, high-end audio/video devices, and other mission-critical applications where standard connectors are insufficient.
