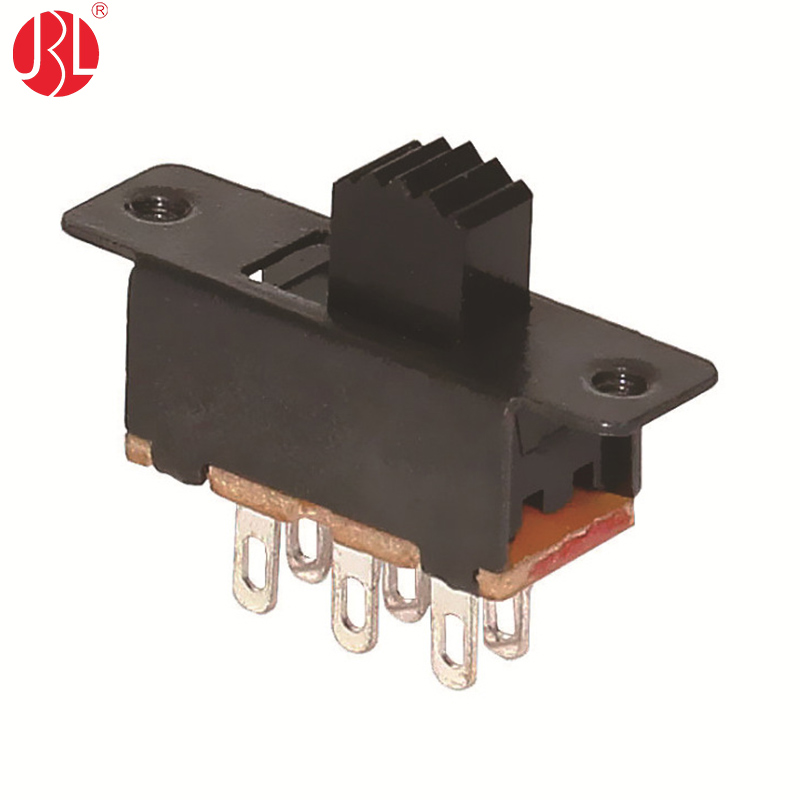

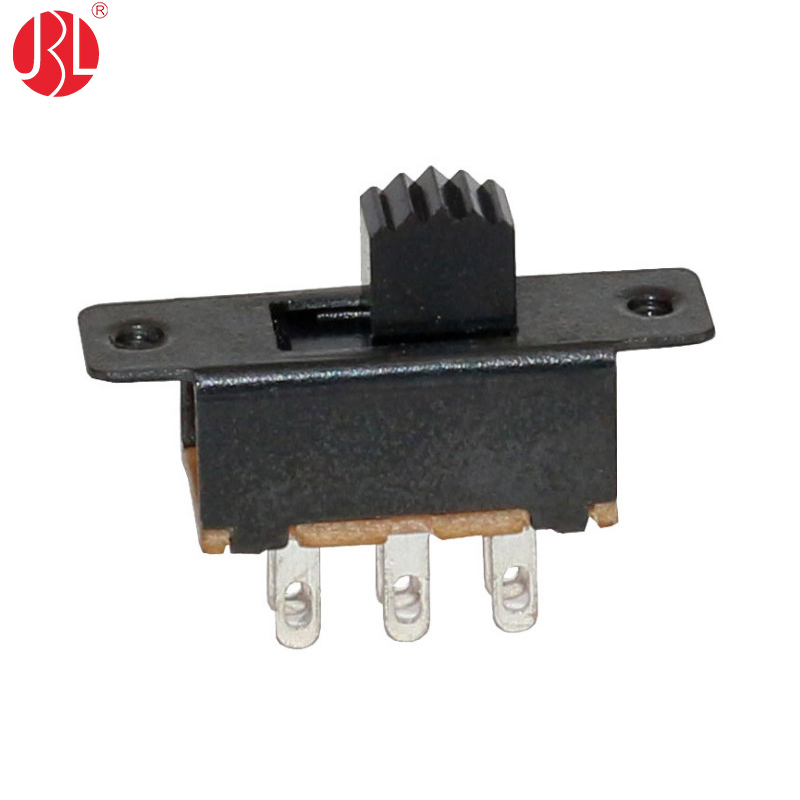

SS-22F25 Panel Mount Slide Switch DPDT
-
-

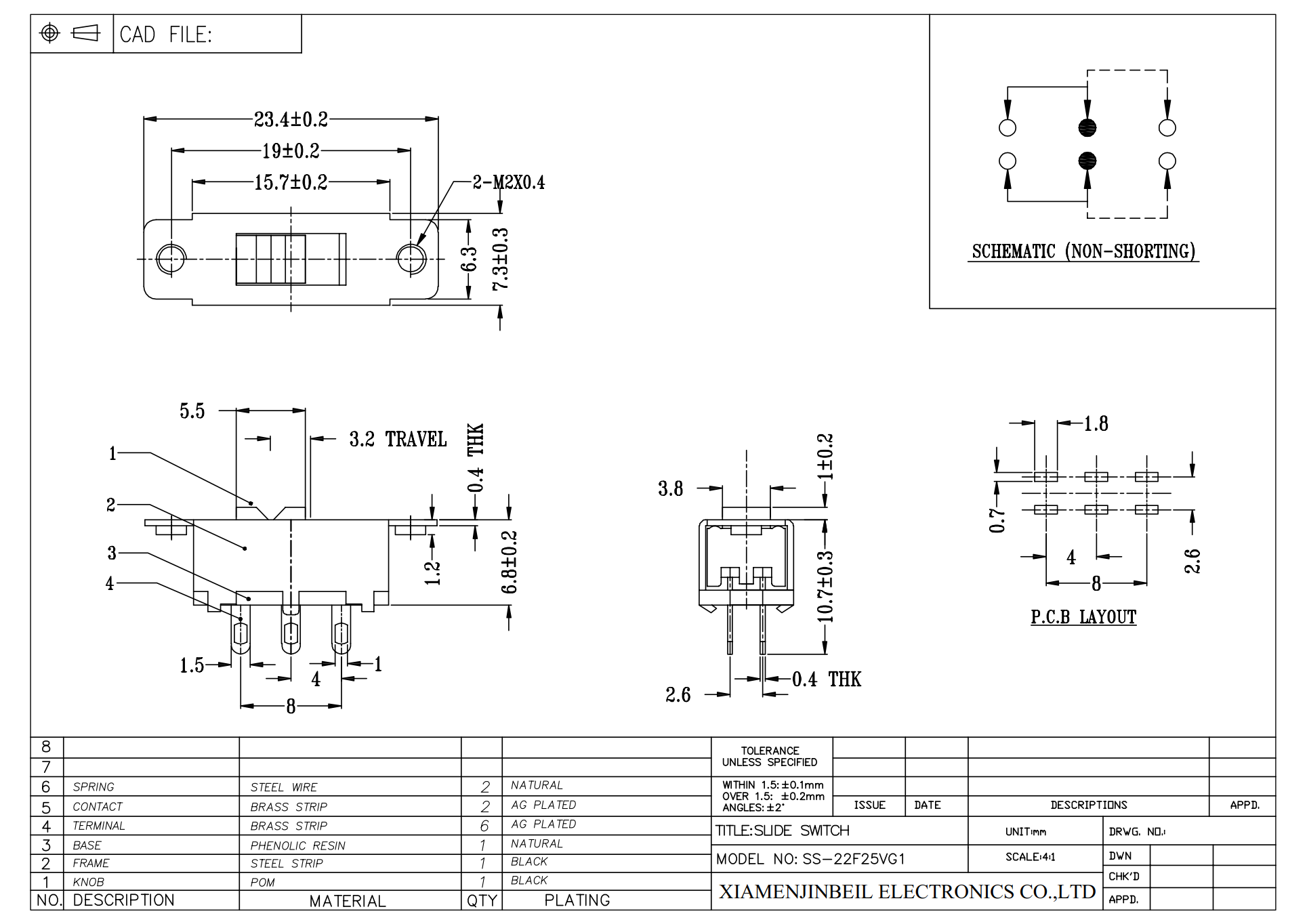

Screw Lock Panel Mount Slide Switch – 6-Pin, 2P2T, 3.2mm Travel, Solder Terminals
This panel-mount slide switch features a secure screw lock mechanism, ensuring stable mounting and resistance to vibration or accidental movement. Designed for durability, it has 6 solder terminals for reliable through-hole PCB connections, making it ideal for industrial, automotive, and electronic applications.
The switch operates on a 2P2T (2 Pole, 2 Throw) circuit, allowing control of two independent circuits with a single actuation. It provides a smooth 3.2mm travel distance, ensuring precise switching and tactile feedback.
Available in multiple actuator length options (1.0mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, and 4.0mm), this switch accommodates various panel thicknesses and user preferences. The panel-mount design allows for easy installation on control panels, dashboards, or enclosures, while the screw lock feature prevents loosening over time.
Constructed with high-quality materials, this slide switch supports high electrical ratings and is suitable for power switching, signal routing, and mode selection in demanding environments. Its compact yet robust design ensures long-term reliability, making it an excellent choice for applications requiring consistent performance.
