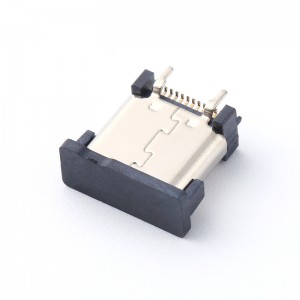

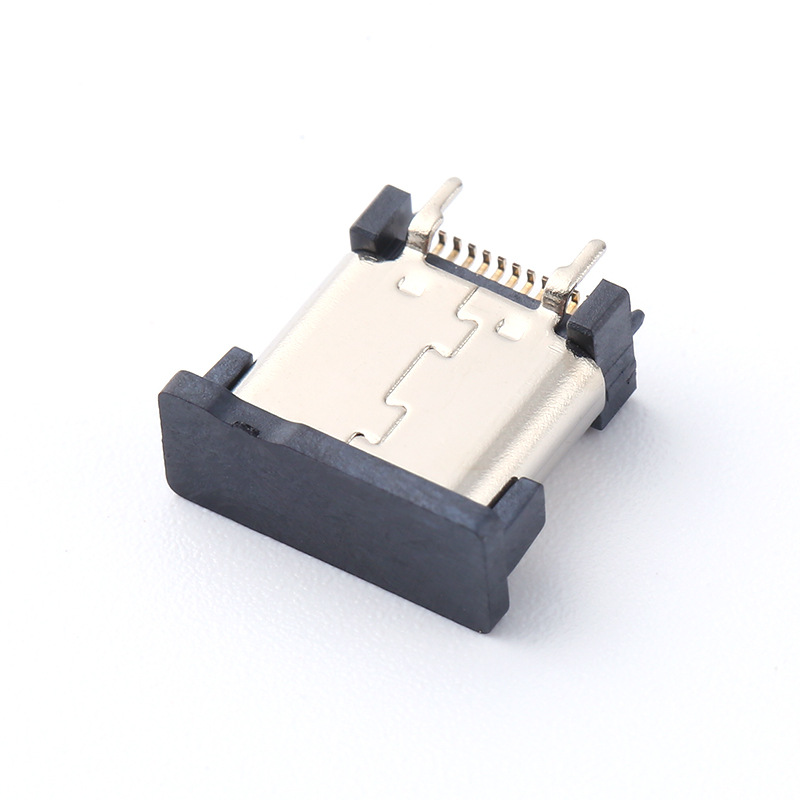

USB-31C-F-01BS01 USB 3.1 Type C 24Pin SMD Through Hole Vertical
-
-
-
Product Descriptions :
Product name : USB Type C with PCB
Positions : 24 Pin
Features : Surface mount, Through Hole, Vertical
1.Current Rating: 5A MAX.
2.Voltage Rating: 20V AC/DC
3.Contact Resistance: 40mΩ
4.Insulation Resistance: 100MΩ
5.Dielectric Withstanding Voltage: 100VAC
6.Durability: 10,000 Cycle
7.Insertion Force: 5N to 20N
8.Extraction Force: 8N to 20N
9.Operating temperature range: -40°C~+105°C
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C

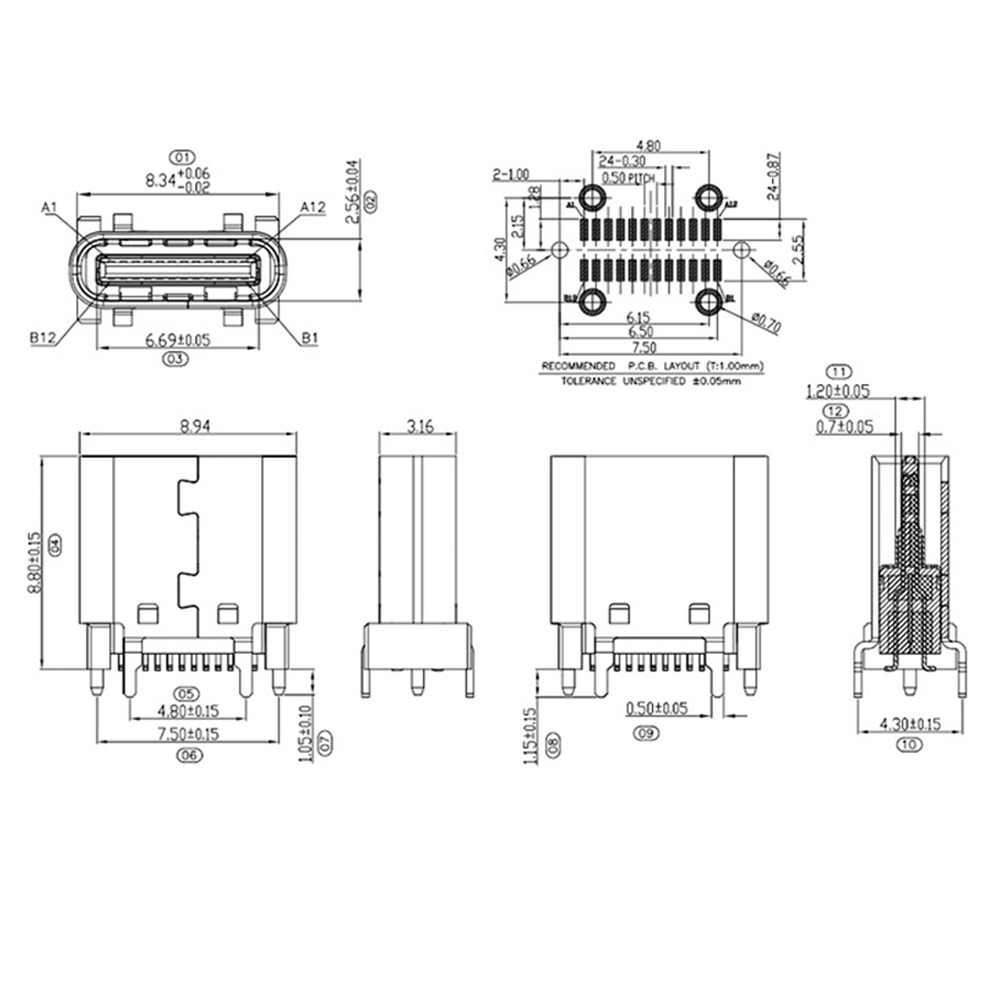

Datasheets :
We have experienced workers and facilites to 1:1 re-build components as original brand drawings or manufacture prototypes as buyers’ drawings
