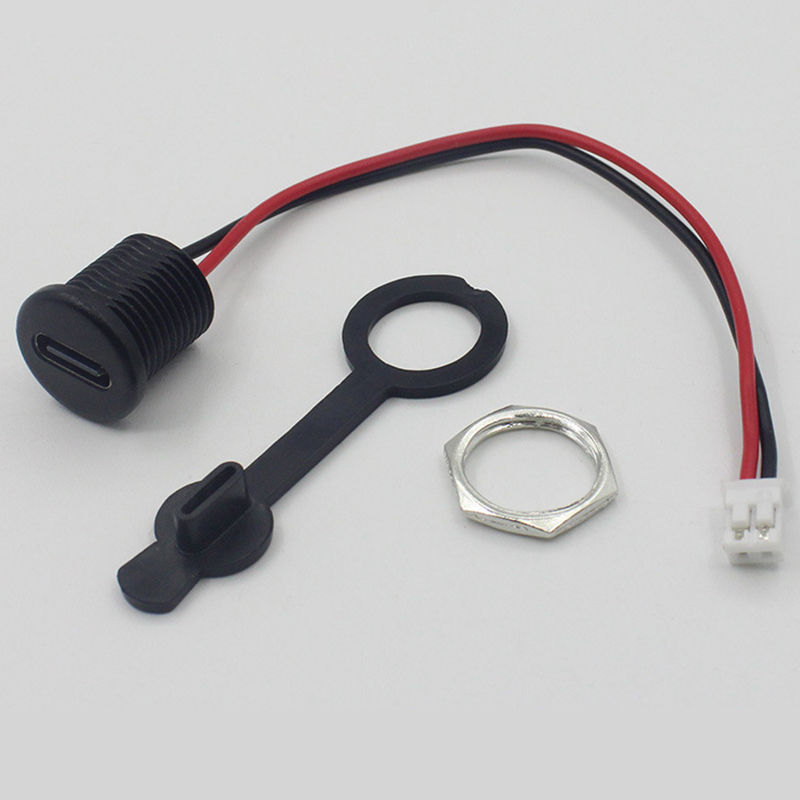

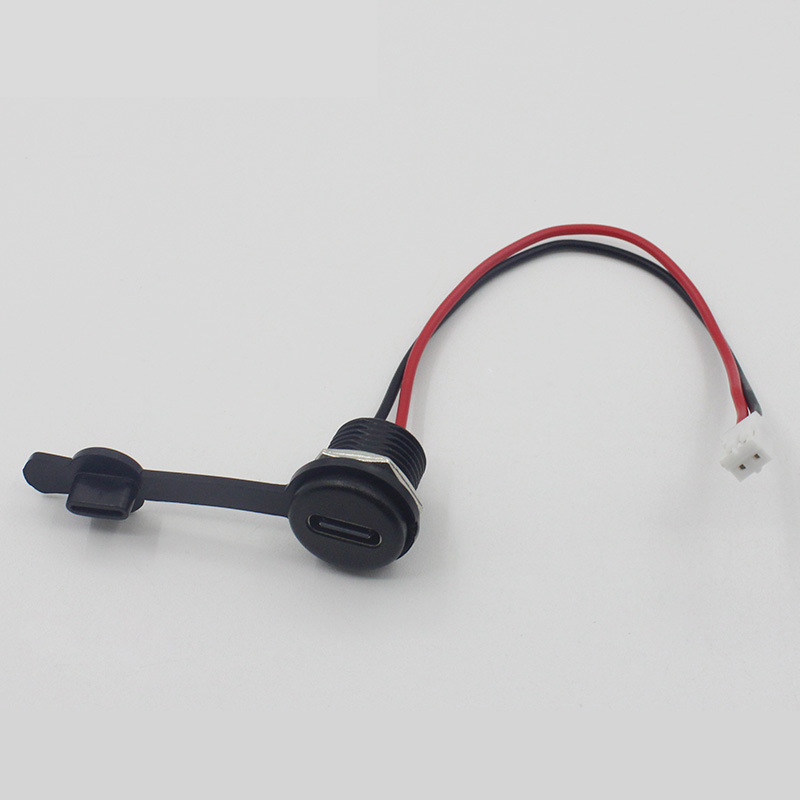

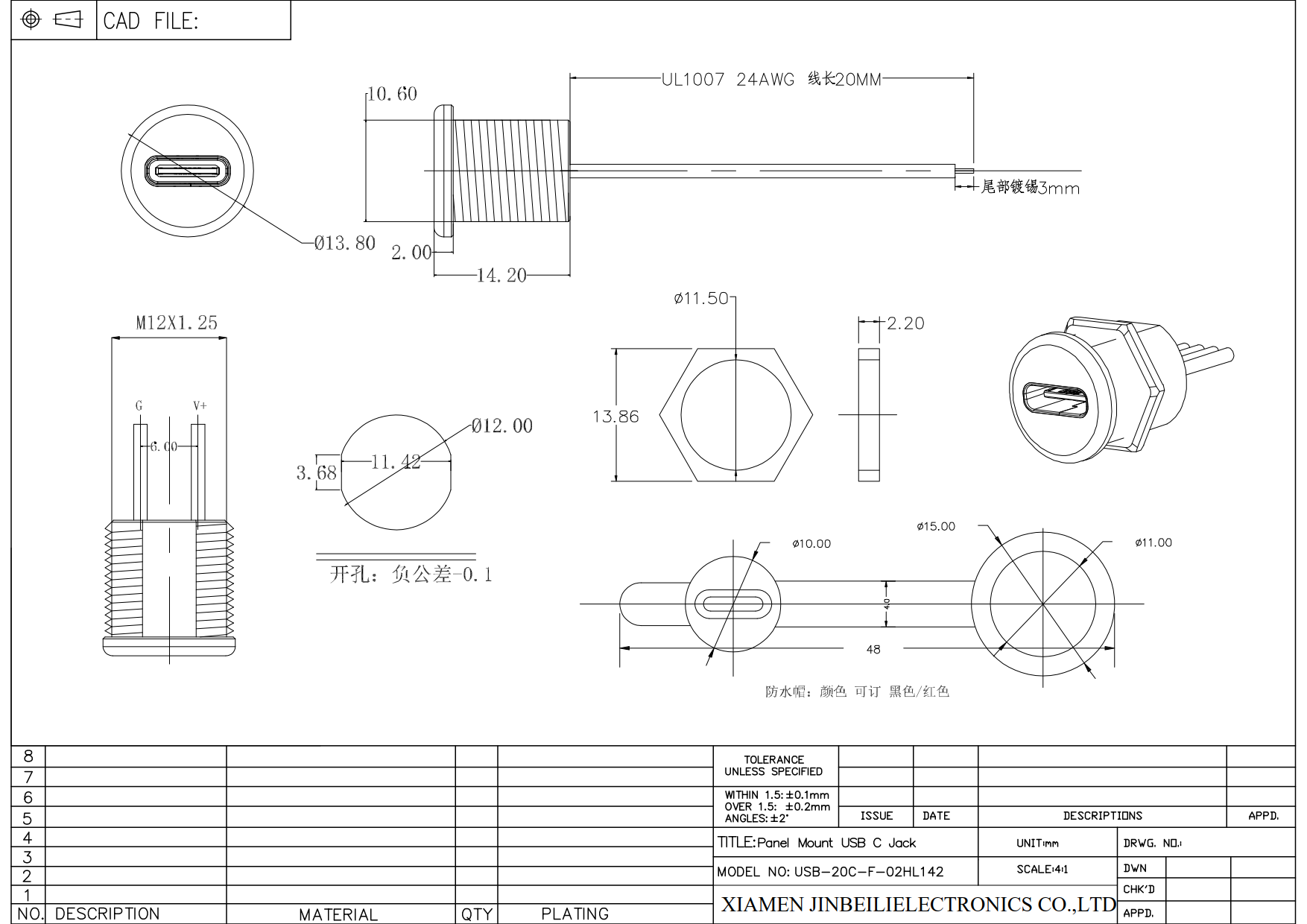

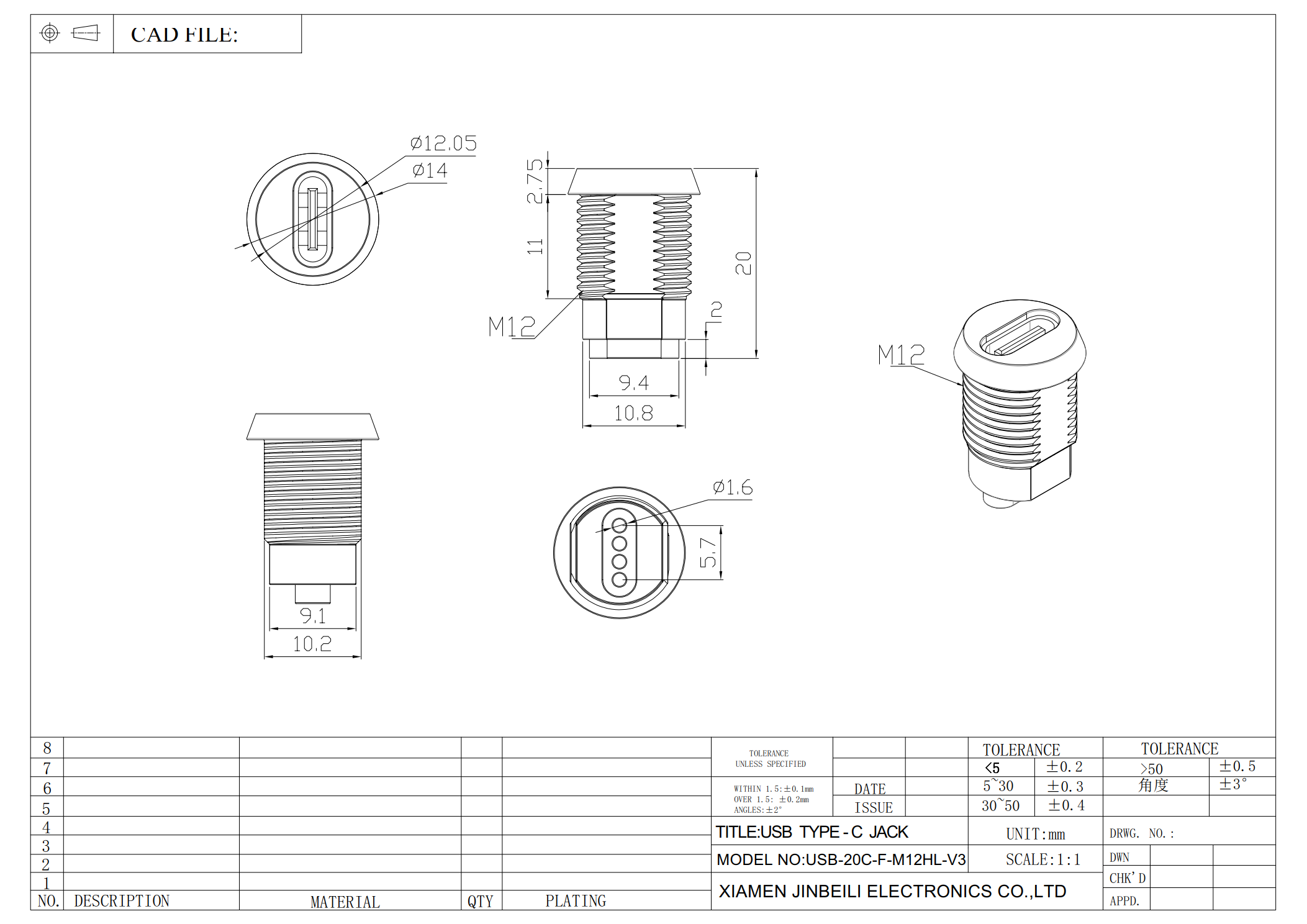

Industrial M12 Bulkhead Panel Mount USB Type-C Jack Socket

Engineered for the harshest industrial environments, this M12 Bulkhead Panel Mount USB Type-C Jack Socket bridges the gap between legacy ruggedized connectivity and modern high-speed data transfer. Designed for seamless integration into machinery, outdoor equipment, and transportation systems, this robust receptacle offers IP67/IP68 sealing capability when properly mated, ensuring unwavering performance against dust, moisture, and vibration. Its threaded bulkhead design guarantees a secure, flush-mount installation on panels, enclosures, or chassis, providing a durable interface that withstands constant mechanical stress.

Flexible Configuration Options

Understanding that every application has unique power and data requirements, we offer five distinct pin-out configurations to match your specific needs:

• Configuration 1 (Vbus & GND): A dedicated power-only solution ideal for battery charging or direct DC supply.
• Configuration 2 (Vbus, GND, D+, D-): Standard USB 2.0 data transfer capability with power delivery.
• Configuration 3 (Vbus, GND, D+, D-, CC1, CC2): Full-featured USB-C enabling orientation detection and basic USB Power Delivery (PD) negotiations.
• Configuration 4 (Vbus, GND, D+, D-, SUB1, SUB2): Designed for sideband use (SBU), perfect for analog audio or DisplayPort Alt Mode auxiliary signals.
• Configuration 5 (Vbus, GND, CC1, CC2, SUB1, SUB2): A specialized data-free configuration for advanced power negotiation via the CC pins alongside sideband signals.

Custom Wiring & Termination

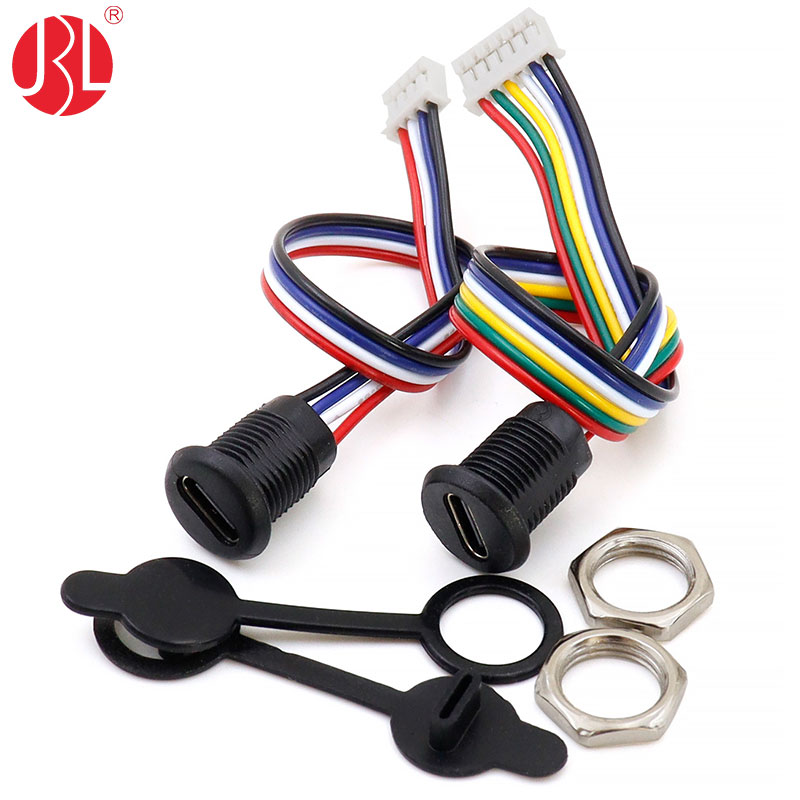

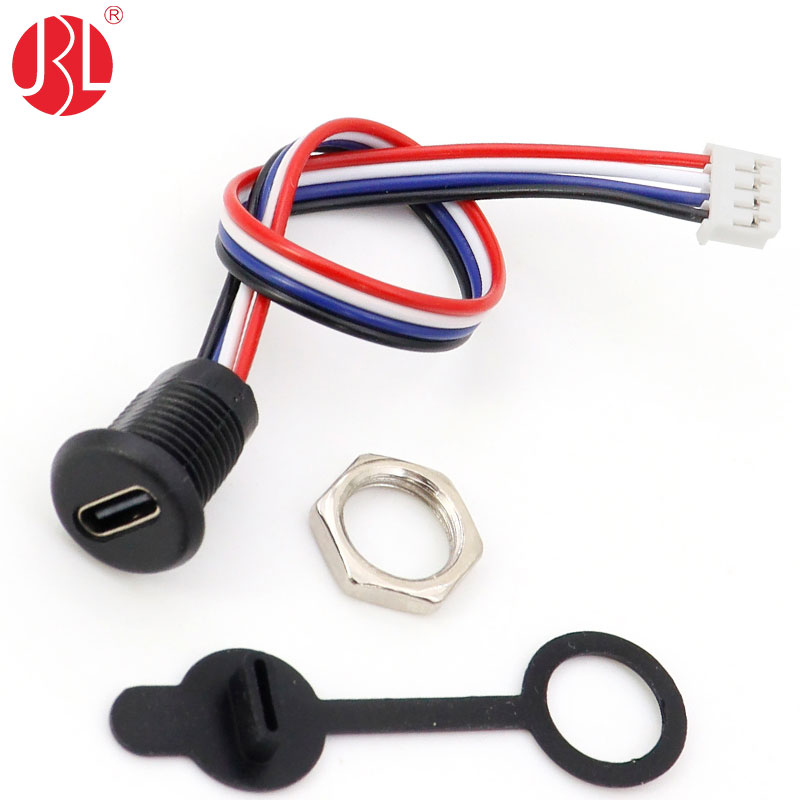

To accommodate diverse installation spaces, the pre-attached wires are available in 22 AWG, 24 AWG, or 26 AWG gauges, ranging in length from 50mm to 1000mm. The flying leads can be terminated exactly as required—choose from simple tinned ends for soldering, or pre-installed crimp connectors such as JST PH-series or Molex headers for quick, tool-free harness integration.

Advanced Smart Circuitry Options

Beyond standard pass-through connections, we can embed intelligent circuits directly within the jack housing to simplify your system design:

• Pull-Down Resistors: Incorporating two 5.1kΩ pull-down resistors on the CC lines to GND, enabling the jack to correctly identify itself as a legacy or “Powered Cable” device.
• Apple Charging Support: Add two 22kΩ or 56kΩ pull-up resistors to enable the socket to trigger optimal charging currents for Apple devices, including the iPhone 15, 16, and 17 series.
• PD Trigger Module: Integrate a USB Power Delivery trigger circuit to negotiate fixed voltages of 9V, 12V, or 24V directly from a PD power adapter, eliminating the need for a separate DC-DC converter.
• Visual Indicators: Opt for a clear, translucent housing with integrated LED light indicators to provide real-time visual feedback for power status or data activity.

Built for reliability and tailored for innovation, this M12 USB-C jack is the definitive solution for bringing next-generation connectivity to rugged industrial applications.
