Short Description:

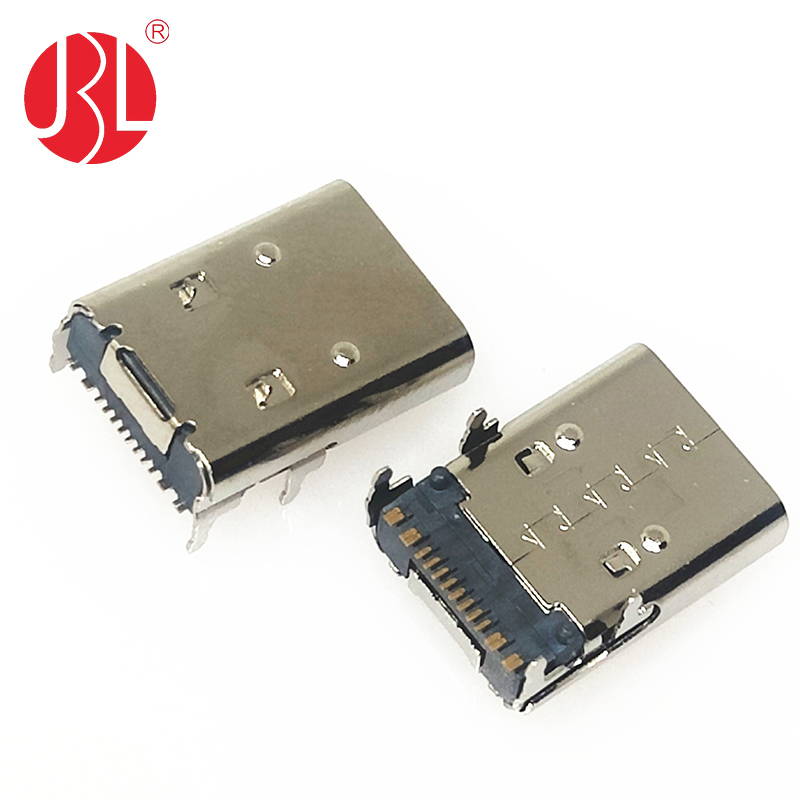

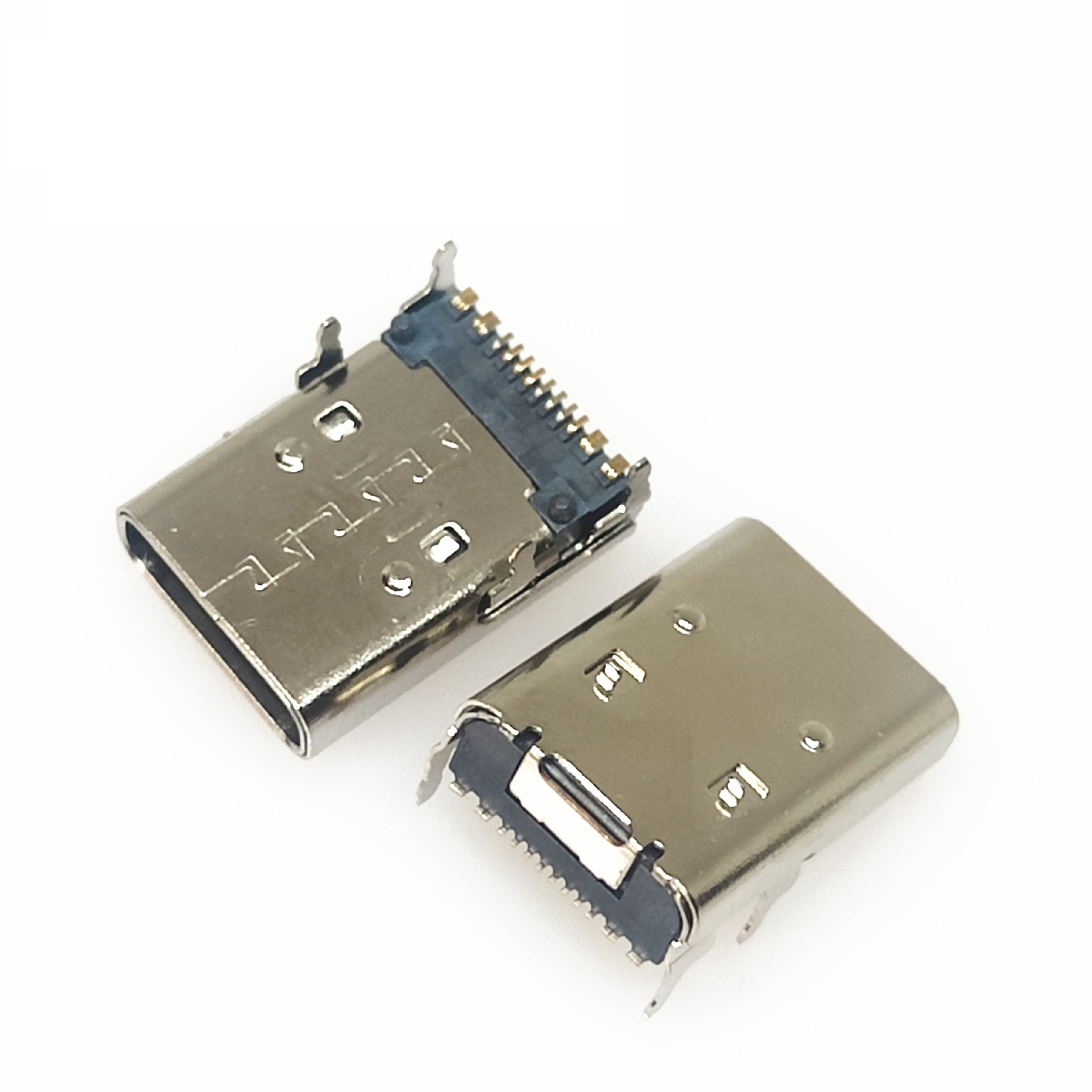

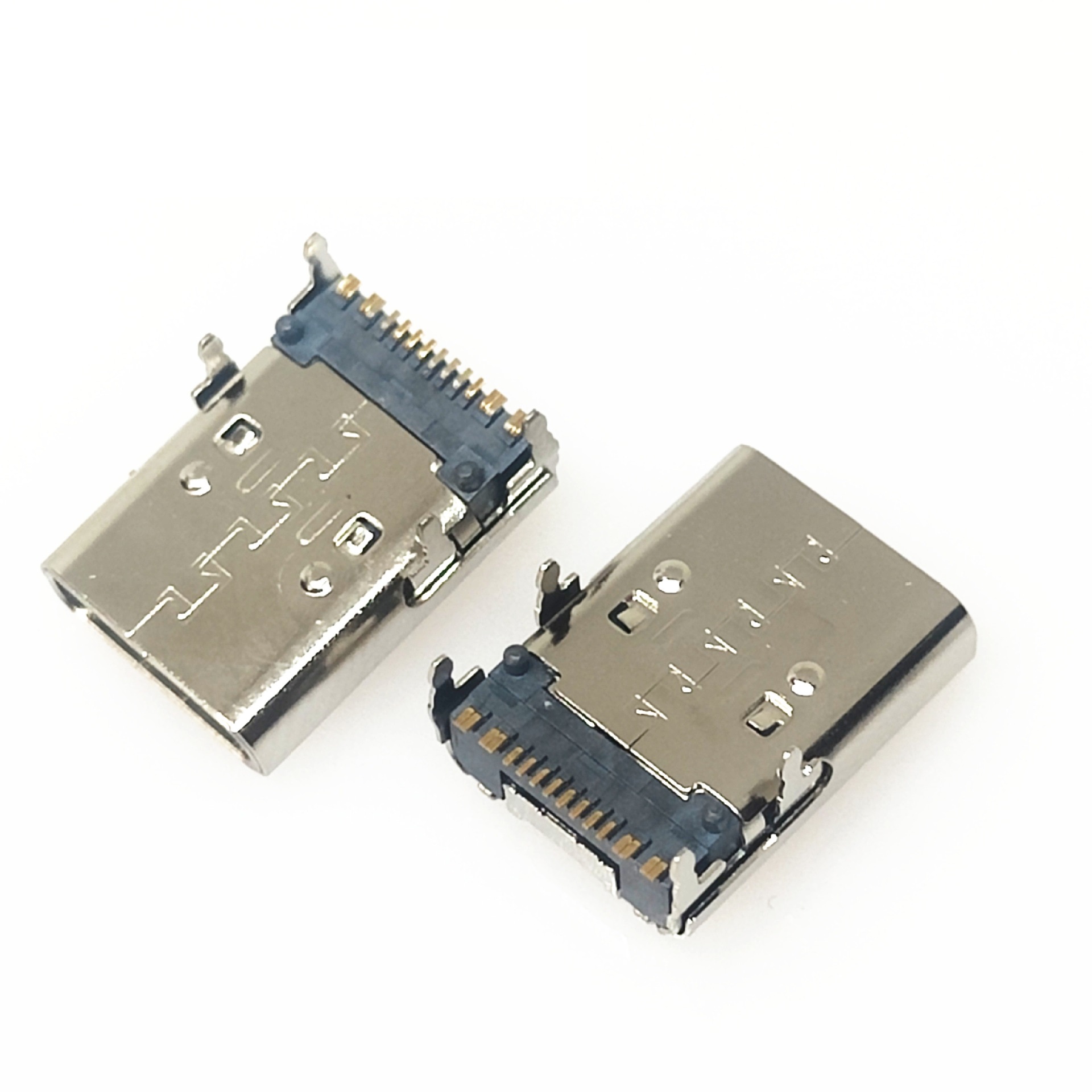

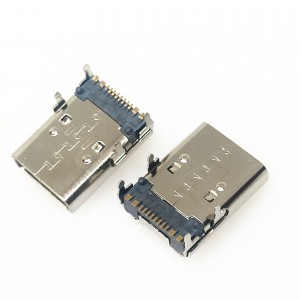

Long Body 12.4mm USB Type C Female Connector SMD Through Hole Right Angle


  • Item: USB Type C Jack
  • Contact: 16 Position
  • Mounting : SMT, Through Hole, Right Angle
  • Body Length: 12.4mm
  • Power Rated: DC24V 3A
    • Download as PDF

    Product Detail

    Product Tags

    Product Descriptions :

    Product name : USB type C

    Positions : 16Pin

    Features :  SMD, Right Angle, THT, long body 12.4mm

    Voltage : DC30V

    Current : 1A

    Working Temp : -25°C ~ 85°C

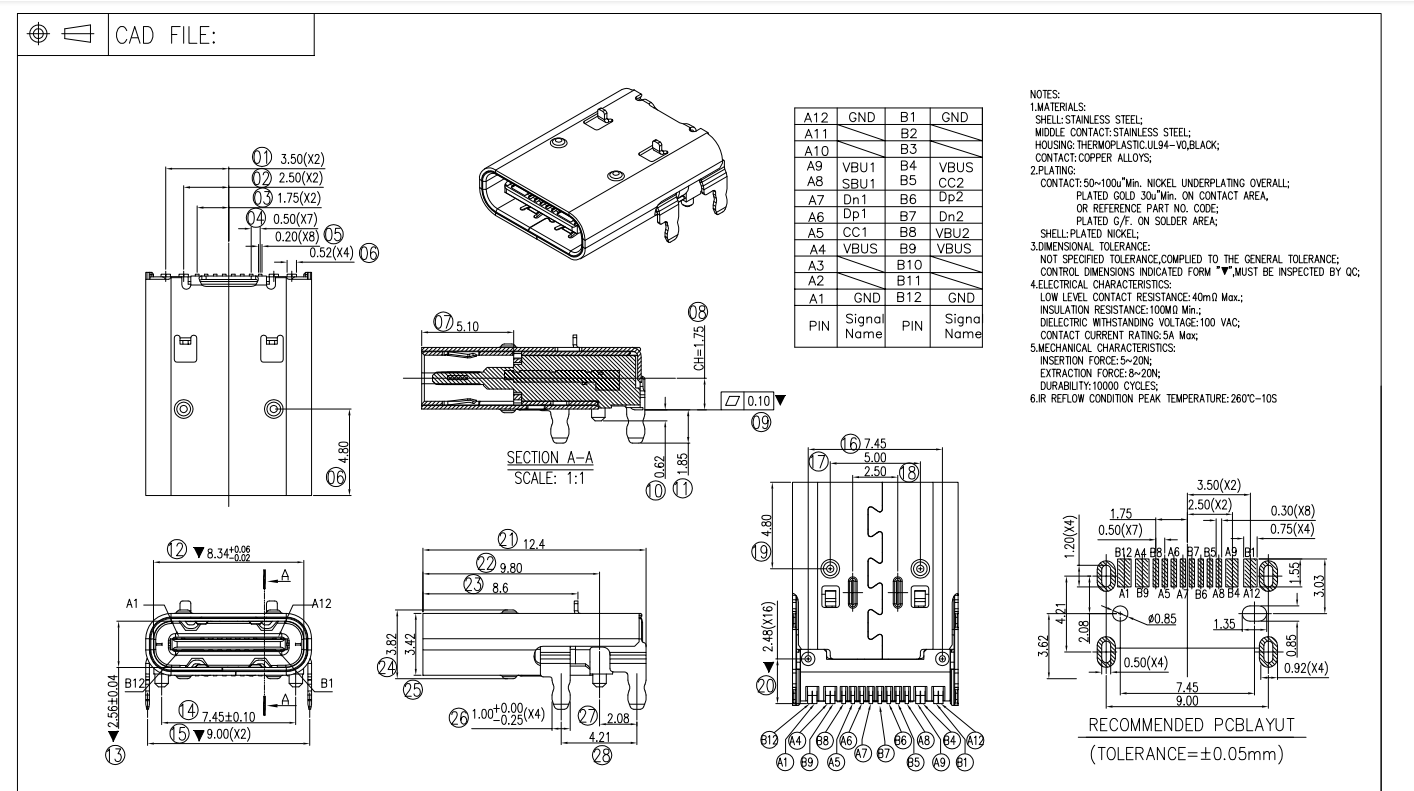

    Datasheets :



    USB-20C-F-01 L12.4
