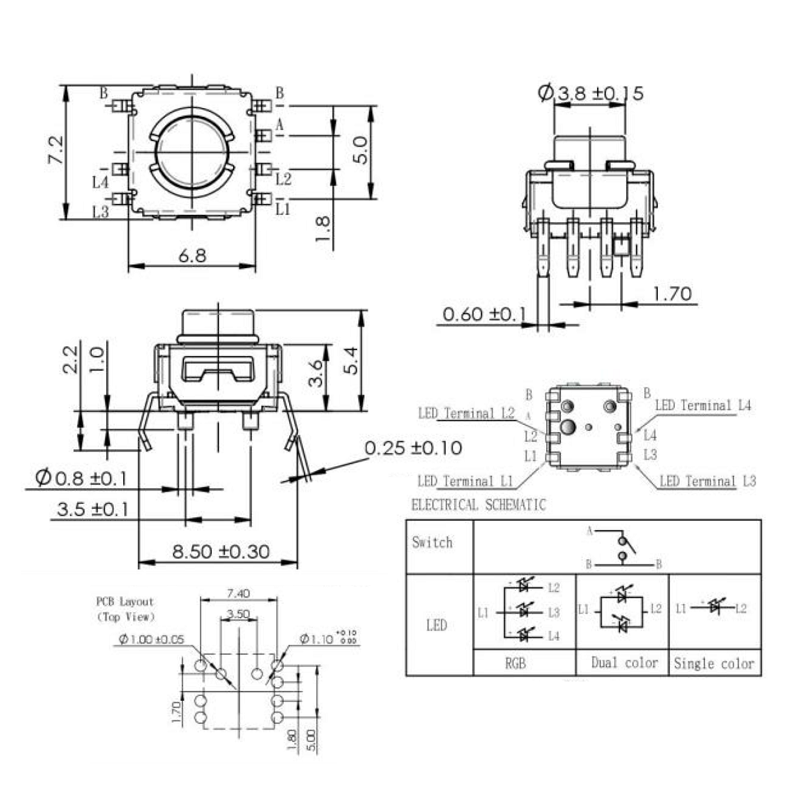

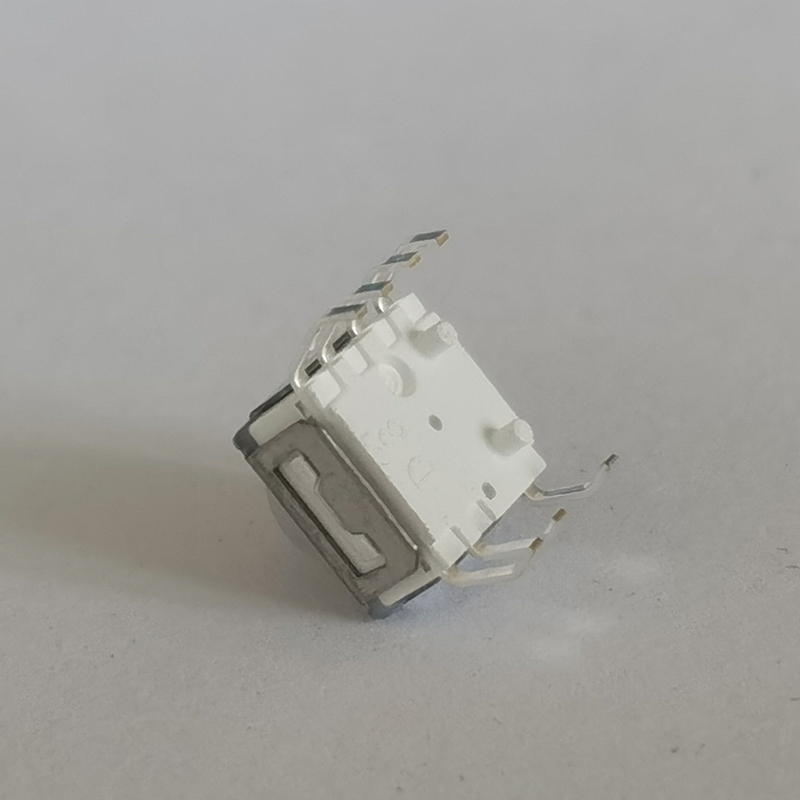

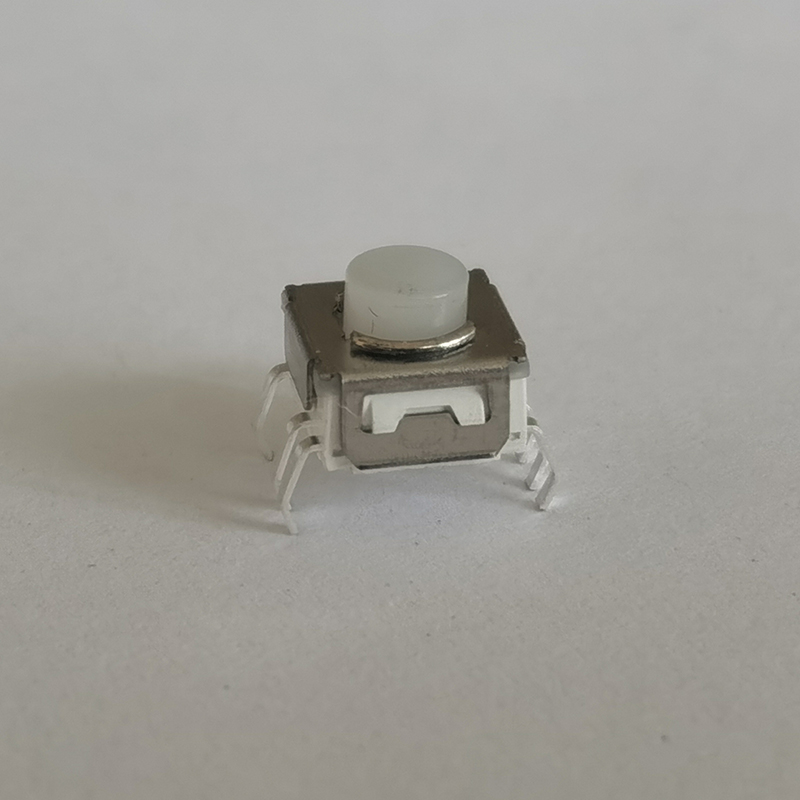

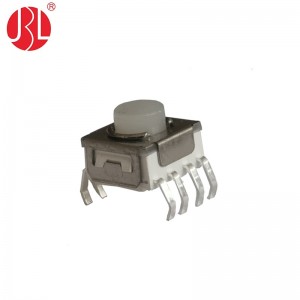

TD618DVL IP67 Waterproof Illuminated LED Tactile Switch DIP DC12V 50mA Multiple LED Options for Audio Apparatus
-
-
-
-
-

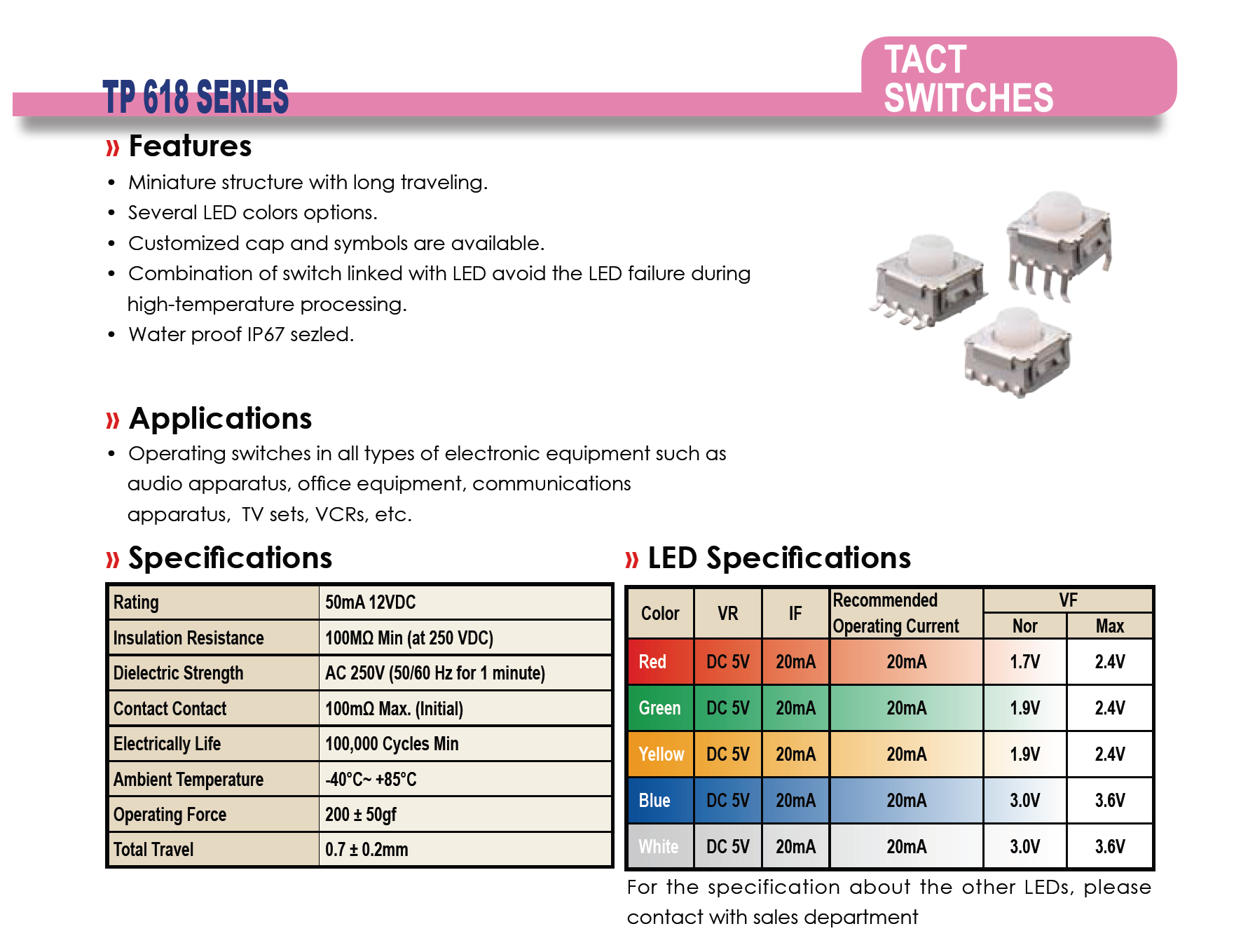

1.Electrical Specifications
1.1.Contact Resistance:100 milliohms
1.2.Insulation Resistance: Between insulated terminals 100 megohms
1.3.Dielectric Strength : 1 minute between adjacent switches 250 VAC
1.4.Nonswitching Rating : DC 12V 50 mA
2. Mechanical and Environmental
2.1.Soldering :
Maximum reflow temperature, 260°C for 3 seconds
Maximum wave temperature, 265°C for 5 seconds
Maximum manual temperature, 350°C for 3 seconds
2.2. RoHS: Lead-Free. Fully compliant to RoHS Directive 2011/65/EU and 2015/863/EU
2.3.Operating Force: 200gf ± 50gf
2.4.Actuation Life: 100,000 cycles
2.5.Actuator Strength: 2 Kgf maximum
2.6.Travel : 0.7 ± 0.2mm
2.7.Packaging : Standard tape and reel packaging for surface mount gull wing terminal
Tray packaging for standard though hole
2.8. Operating Temperature : Range -40°C to +85°C
2.9. Storage Temperature : Range -40°C to +85°C
2.10. Waterproof Grade: IP67
2.11.MSL Level :1 for tray packaging/3 for tape and reel packaging
