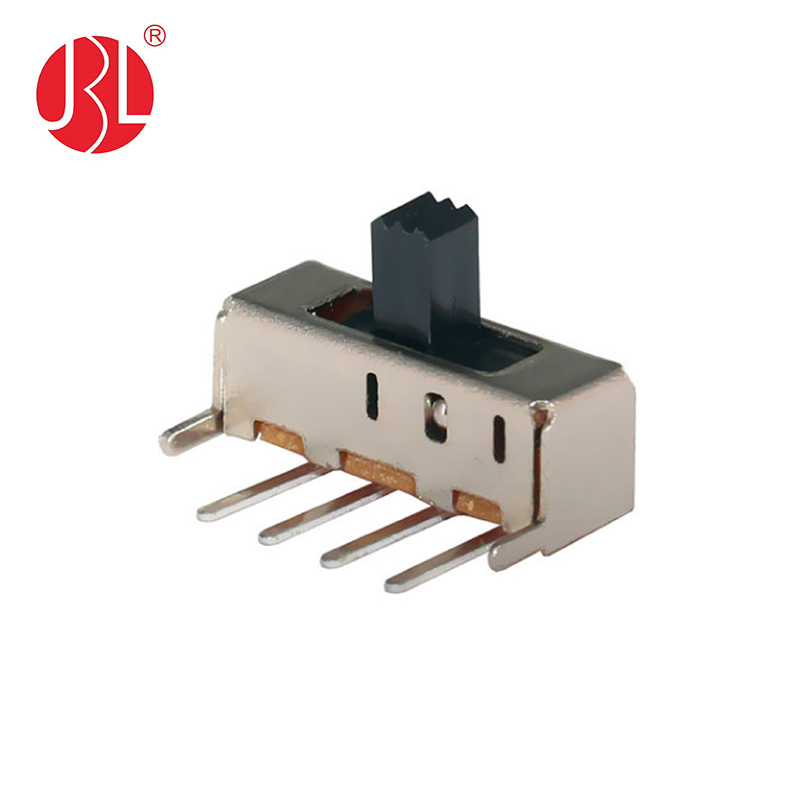

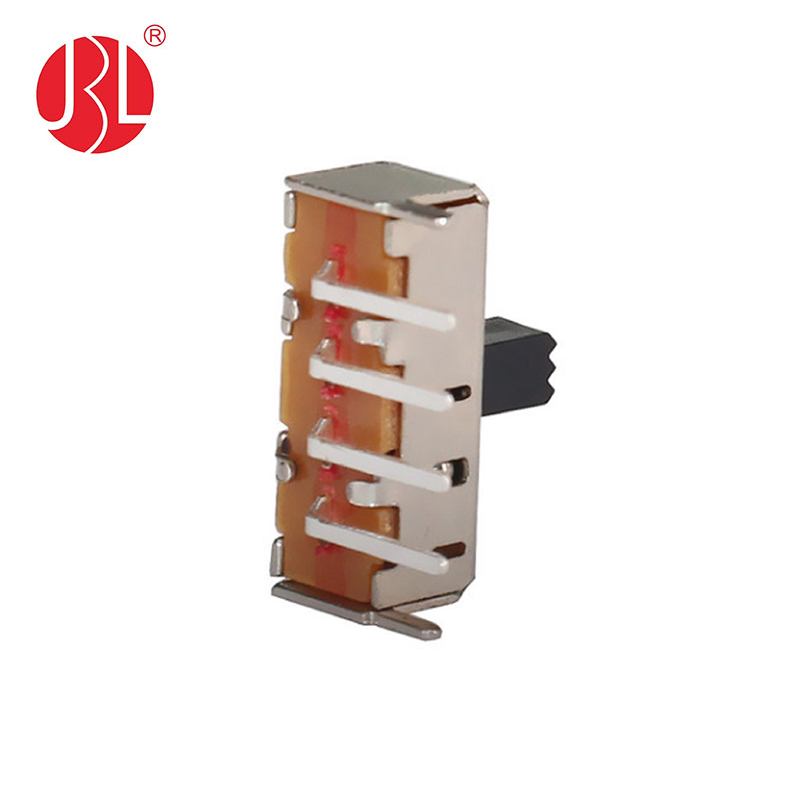

SS-13F24 SP3T Slide Switch Through Hole Right Angle
-
-
Slide Switch – 1P3T, Through-Hole Right Angle, 3.2mm Travel
This high-performance slide switch is designed with a Single Pole Three Throw (1P3T) configuration, offering versatile switching between three distinct circuits. It features a through-hole right-angle mounting design, which allows for efficient use of space and simplifies integration into circuit boards with a compact footprint. The switch provides a 3.2mm travel distance, delivering smooth and precise sliding action with clear tactile feedback for accurate operation.
Key Features:
- 1P3T Configuration: Enables control over three separate circuits, providing flexibility for various switching applications.
- Through-Hole Right Angle Mounting: Facilitates easy PCB integration with a right-angle design that saves space and simplifies board layout.
- 3.2mm Travel: Ensures a smooth and precise sliding motion with clear tactile feedback, enhancing the reliability and ease of operation.
Ideal for use in electronic devices, control panels, and other compact applications, this slide switch combines functional versatility with a space-saving design, making it a practical choice for a wide range of electronic and control systems.

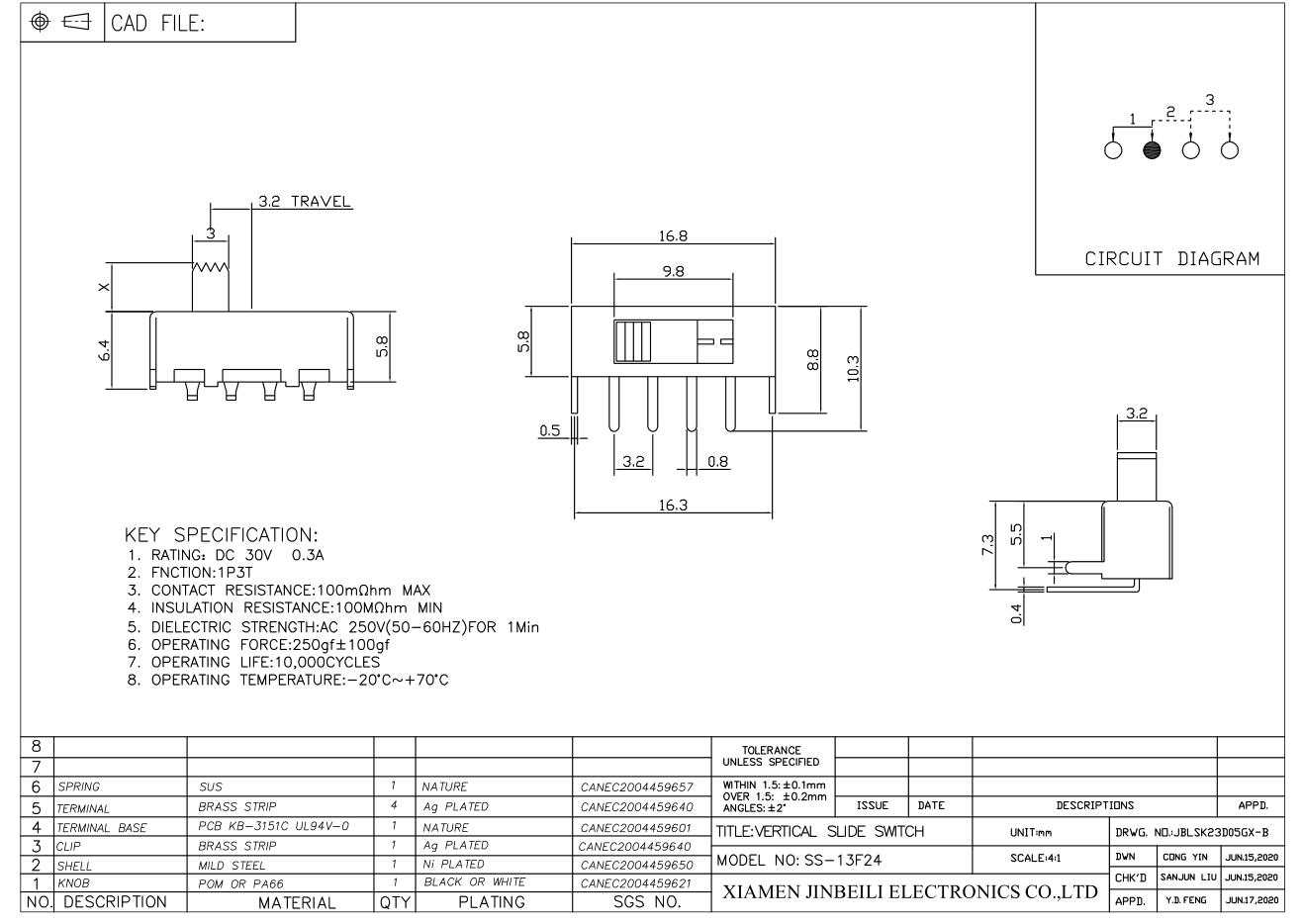

Datasheets :
Previous:
SS-23D03 DP3T Slide Switch DIP Through Hole Horizontal
Next:
SS-23D01 DP3T Slide Switch Metal Knob Actuator DIP Through Hole Horizontal
1p3t slide switch tht hole SP3T 1P3T Slide switches Through Hole Right Angle SP3T Slide Switch sp3t slide switch thru hole right angle
