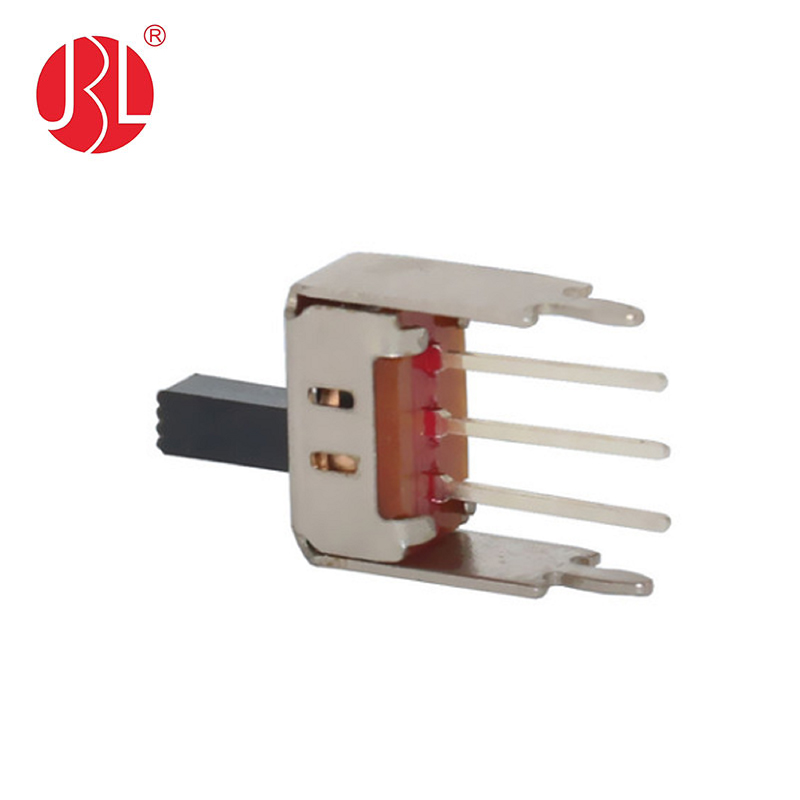

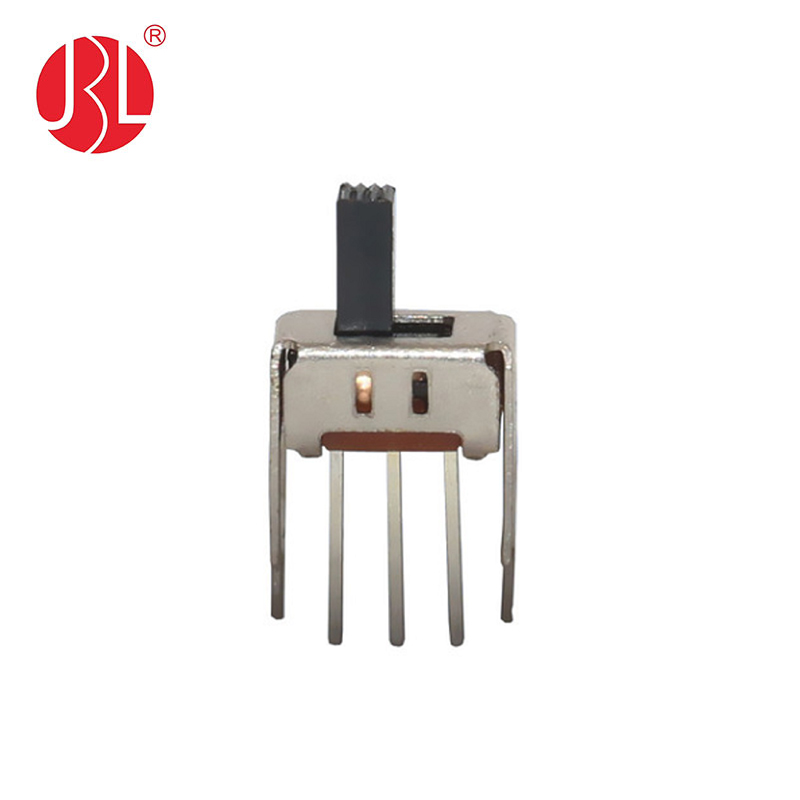

SS-12D17 SPDT Slide Switch DIP Through Hole Vertical PC Pin
-
-
Product Descriptions :
1.Rated load: DC 12V 30V 0.3A 0.5A
2.Contact impedance: ≤50mΩ
3.Insulation resistance: ≥100mΩ DC500V
4.Soldering resistance temperature: 250±5°5s
5.Service life: 10,000 cycles
6.Operating temperature: -25 ℃ to 80 ℃
7.Operating humidity: ≤85% RH
8.Operating force: customization available
9.Handle length: customization available

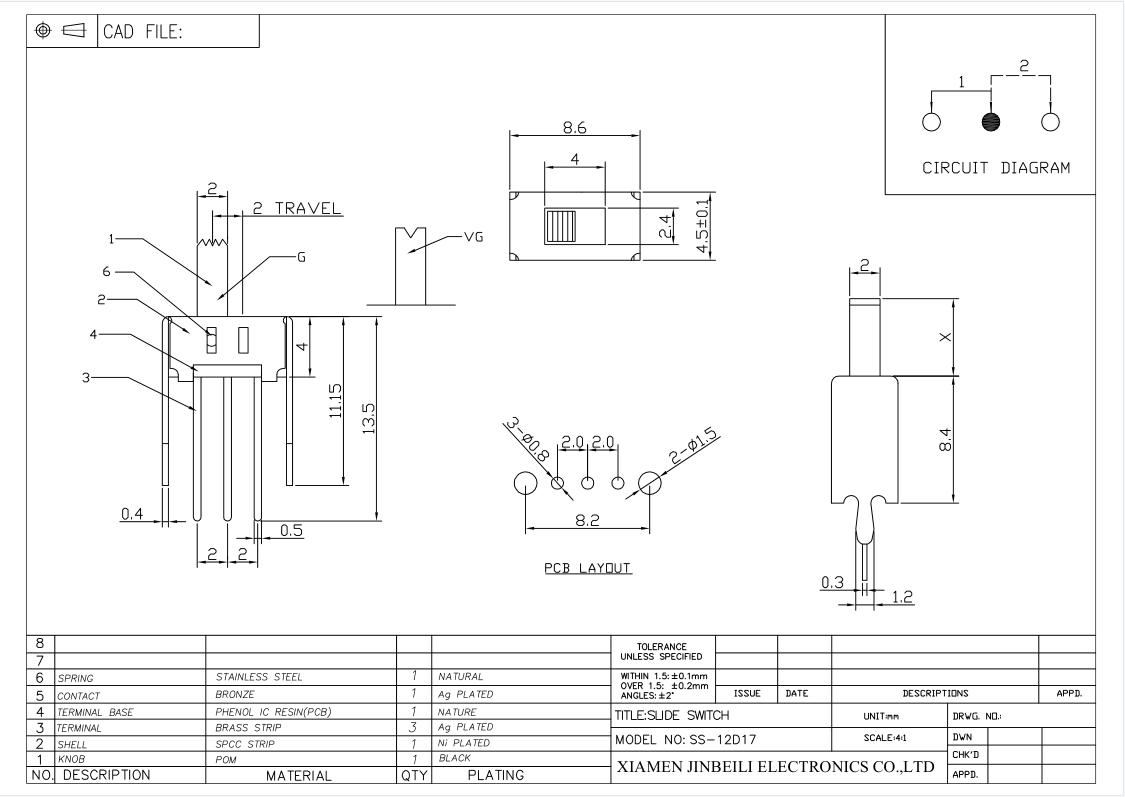

Datasheets :
Previous:
SS-12F13 Screw Panel Mount Slide Switch SPDT
Next:
SS-12D08A SPDT Slide Switch DIP Through Hole Vertical Solder Lug
spdt slide switch SPDT Slide Switch DIP SPDT Slide Switch THROUGH HOLE spdt slide switch through hole Vertical
