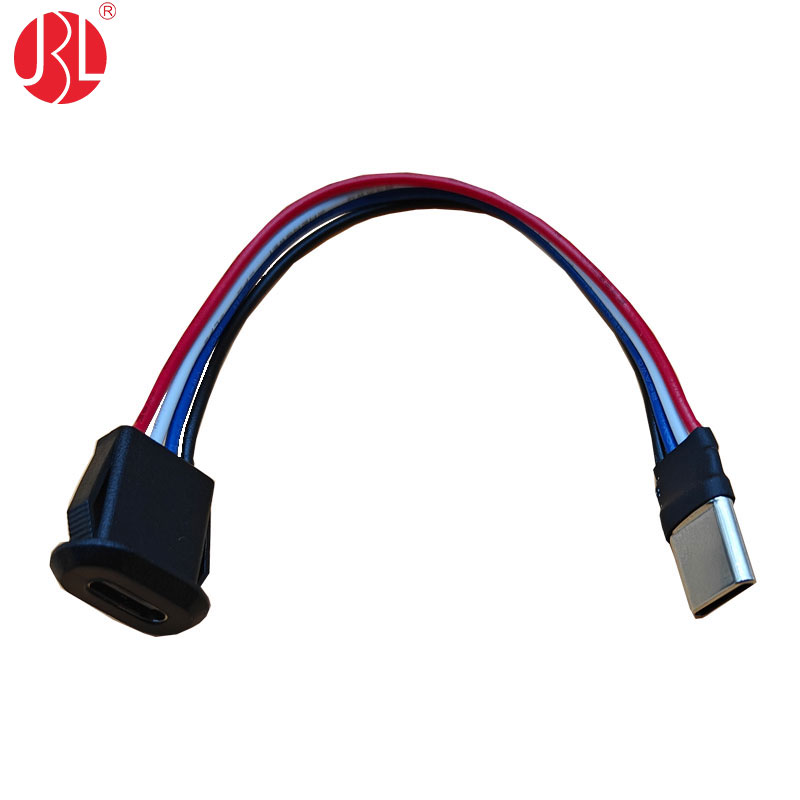

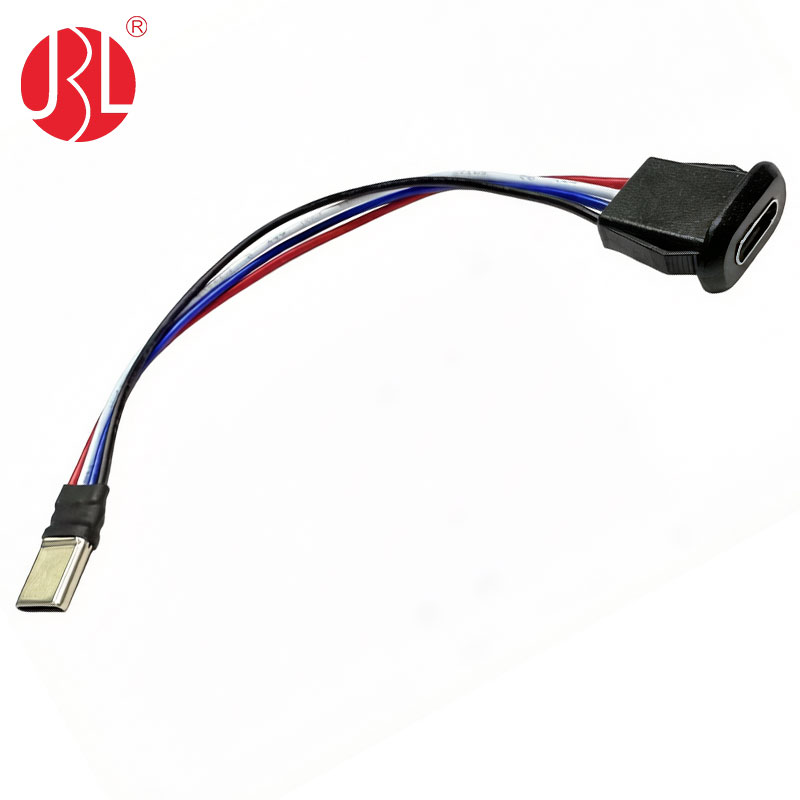

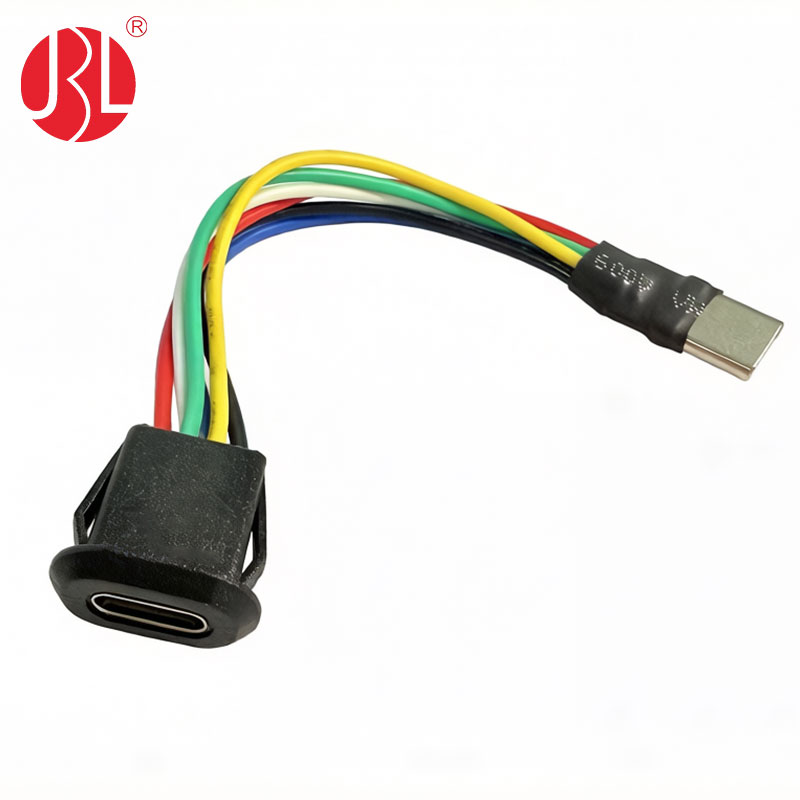

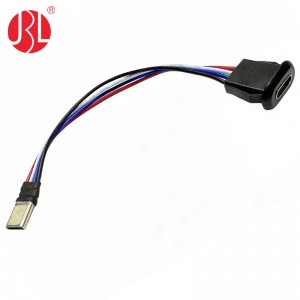

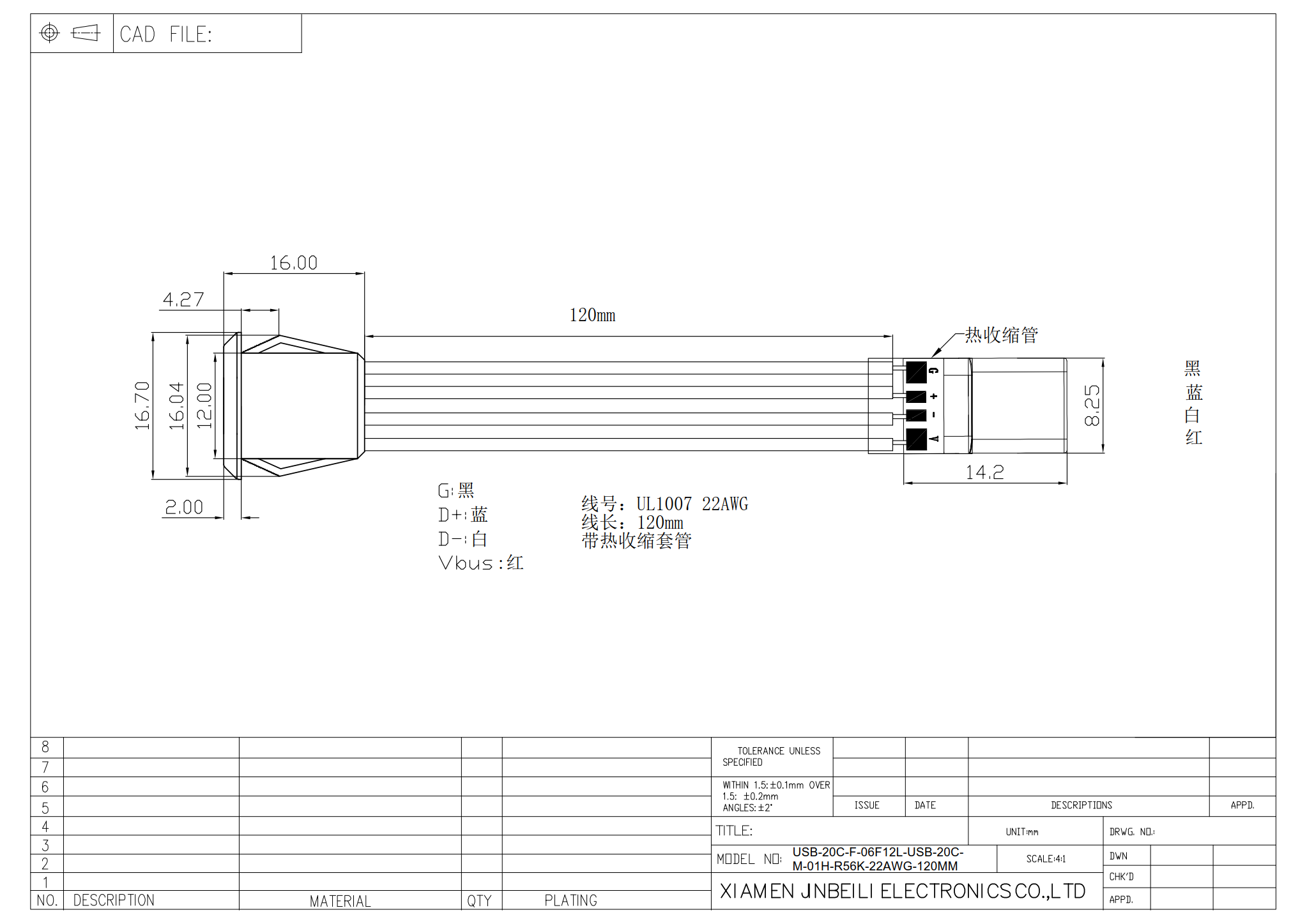

Custom Snap-In Panel Mount USB Type-C Female to Male Cable

Our premium custom USB Type-C Female to Male Cable is expertly designed for secure panel integration and versatile electronic applications. The USB-C female connector features a reliable snap-in panel mount design, allowing for fast, tool-free installation directly into device panels, enclosures, control boxes, and industrial equipment.

Supported by a team of experienced engineers and advanced manufacturing facilities, we provide complete customization of the USB-C jack to meet your exact specifications. Available pin configuration options include:

• Option 1 (2-pin): VBUS + GND – Ideal for basic power and charging needs.
• Option 2 (4-pin): VBUS, GND, D+, D- – Suitable for USB 2.0 data transfer and charging.
• Option 3 (6-pin): VBUS, GND, D+, D-, CC1, CC2 – Full-featured USB-C for power delivery and configuration channel support.
• Option 4 (6-pin): VBUS, GND, D+, D-, SUB1, SUB2 – Custom auxiliary connections for specialized functions.

We also accommodate advanced hybrid 6-pin configurations such as VBUS, GND, D+, D-, CC1+CC2, SUB1+SUB2, offering greater flexibility for complex custom projects.

Our factory excels at integrating custom circuitry into the USB-C jack according to buyer demands. One common solution includes installing 2pcs 5.1KΩ pull-down resistors on the CC lines to GND and 2pcs 56KΩ pull-up resistors, ensuring full compatibility with iPhone 15, 16, and 17 series for stable and reliable charging. We can design and produce any custom circuit required for your specific application.

Wire specifications are fully customizable to match performance and space requirements. Choose from high-quality wire gauges: 22AWG for maximum current capacity and fast charging, 24AWG for balanced performance, and 26AWG for compact, flexible installations. Cable length options range from a short 50mm up to 1000mm, providing the perfect fit for any panel-to-device distance.

Manufactured with strict quality control using premium materials, these cables deliver excellent durability, stable signal integrity, and long-term reliability in demanding environments.

Whether you need a straightforward charging solution or a highly specialized USB-C interface, our custom panel mount cables offer the technical precision, customization depth, and quality you can trust.

FAQS

Q1: Can you please share STEP file of the USB C female connector?

A1: Of course, kindly contact me : sales08@jblec.com

Q2: Can you make the USB C jack with resistors ? like 2pcs of pull-up resistors 22K Ohm?

A2: Yes, we can make with resistors like pull down 5.1k resistor, pull-up 10K 22K 56K resistors for PD circuit

Q3: Is this USB C Female to male cable compatitble with Iphone 15 16 17 charging

A3: We can customize it to fit Iphone 15 16 17

A4: Are you able to make this USB C jack with PD trigger circuit ?

Q4: Yes, we can, we can make it with chips IP2721 CH224K FUSB302 for PD trigger circuit.  But this overmoled USB C jack dimensions would be changed, becuase  USB C jack with PD trigger circuit would be larger than normal USB C. It’s necessary to make a new mold

Q5: What is MOQ of custom USB C cable ?

A5: MOQ is usually 500pcs depending on the complexity of customization. Lead time for standard configurations is 7–14 days; custom circuits or special pinouts may take 15–25 days. Please contact us for exact details.

Q6: Can you make this USB C jack to be with 20AWG wires for handling 5A above ?

A6: I am sorry the max cable we can use is 22AWG.  but I think 22AWG is able to handle 5A
