PLC N1TGN ATW Push Button Switch With LED Non Lock
-
Description of this PLC N1TGN ATW Push button switch with LED, non-lock
PLC N1TGN ATW Push button switch with LED, DC 28V 0.4A, non lock, 200,000 cycles operating life
Parameter of this PLC N1TGN ATW Push button switch with LED, non-lock
XIAMEN JINBEILI ELECTRONICS CO.,LTD
*Key Specifications
1.Circuit:SPDT,SPST
2.Current Rating: 0.4A MAX
3.Voltage Rating:DC 28V
4.Dielectric withstanding voltage: 500VAC for 1 min
5.Contact Resistance:100m ohm max
6.Insulation Resistance:100M ohm min
7.Operating Force:200gf±100gf
8.Total Travel:2.2mm±0.3mm 9.Operating life:200,000Cycles
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
11.Funcition: Momentray non lock 12. Operating Temperature:-20°C~+70°C

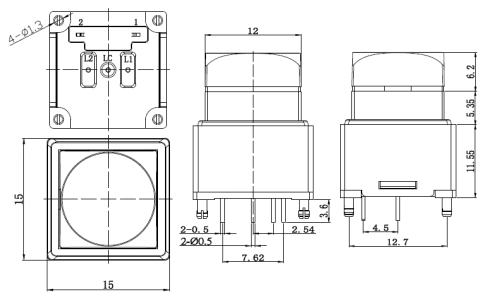

*Product Size (Dimensional drawing is for reference only,for detailed specifications,contact us pls.)
Product Application:
1.Studio equipment; 2.Audio and video products; 3.Broadcast system; 4.Small home appliance; 5.Instrumentation; 6.Automobile peripheral products...

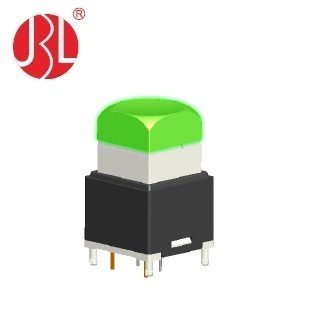

Image of this PLC N1TGN ATW Push button switch with LED, non-lock

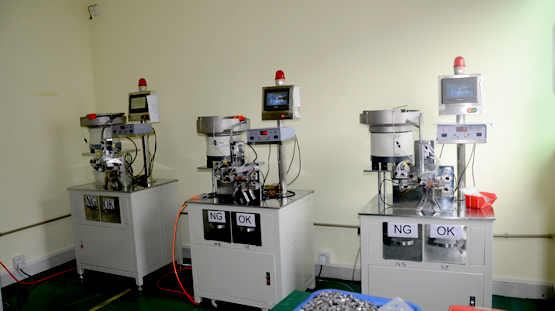

Our Factory of this PLC N1TGN ATW Push button switch with LED, non-lock
Our Service of this PLC N1TGN ATW Push button switch with LED, non-lock
Certifications of this PLC N1TGN ATW Push button switch with LED, non-lock
