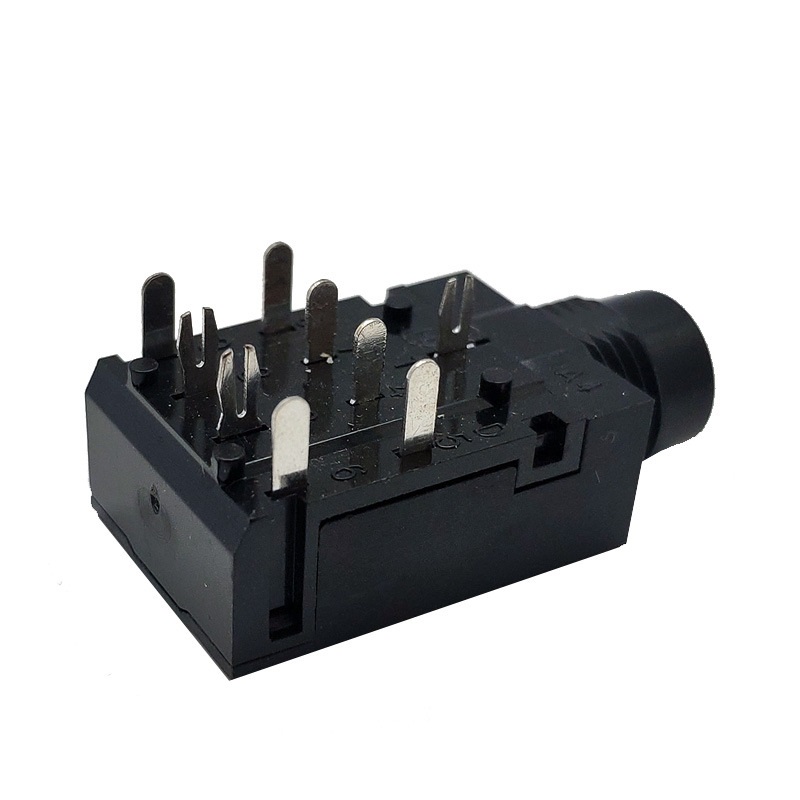

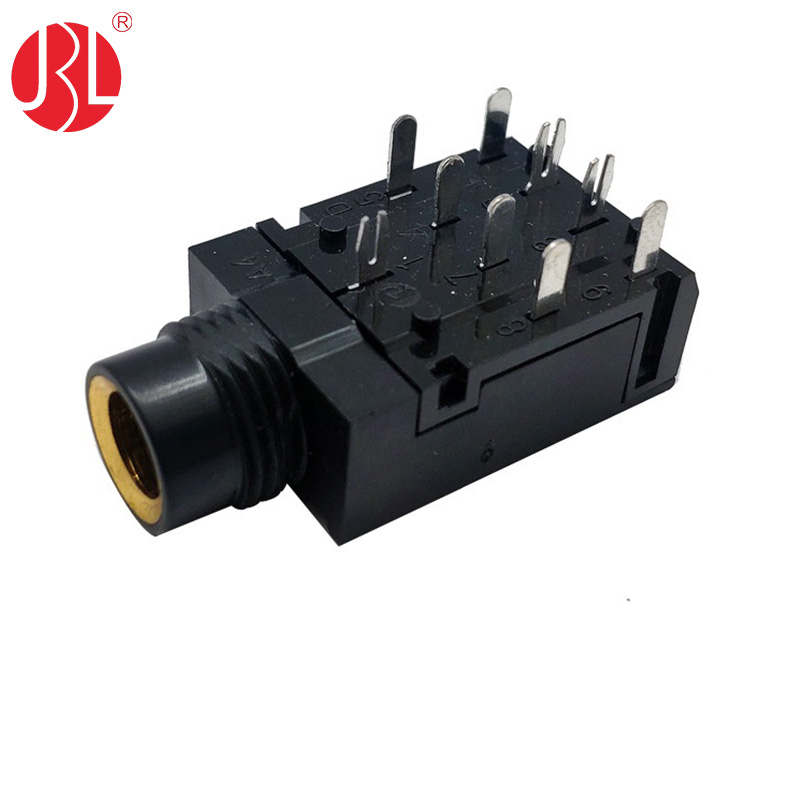

The PJ-606A is a high-reliability 1/4″ (6.35mm) phone jack designed for professional audio and switching applications. This through-hole, right-angle connector features a TRRRS (Tip-Ring-Ring-Ring-Sleeve) configuration, providing 5 poles and 5 conductors to support advanced audio signals—such as balanced stereo with a microphone or dual bidirectional audio paths.

With a total of 9 contacts (including two normally-closed internal switches), the PJ-606A enables intelligent circuit routing. When no plug is inserted, the internal switches create a default signal path; inserting a 6.35mm plug mechanically breaks these connections, rerouting signals to the external device. This makes it ideal for applications requiring automated detection or signal bypass (e.g., headphone jacks with speaker cutoff).

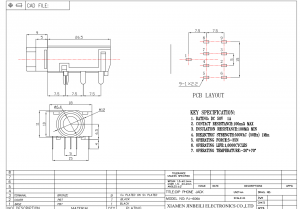

Electrically, the jack is rated at DC12V 1A, making it suitable for low-power switching and line-level audio signals. The right-angle, through-hole package ensures robust mechanical retention on PCBs, while the compact footprint matches industry-standard mounting holes.

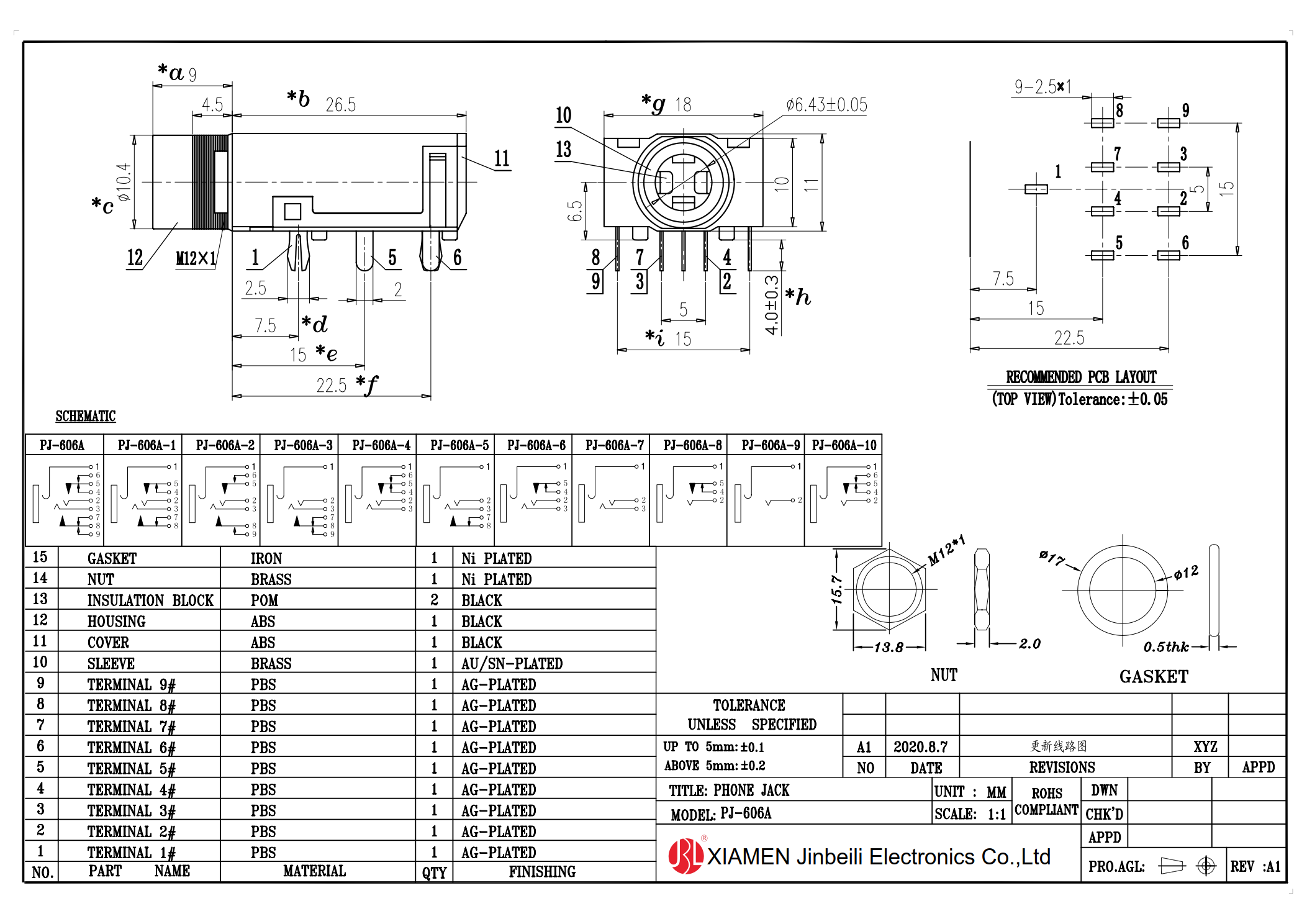

Crucially, the PJ-606A shares identical dimensions and specifications with the Samesky CUI SJ-63043F and SJ-63043H models, serving as a direct, drop-in alternative. Whether for audio mixers, guitar amplifiers, or communication equipment, this 5-conductor jack delivers reliable performance in a widely compatible mechanical format.
