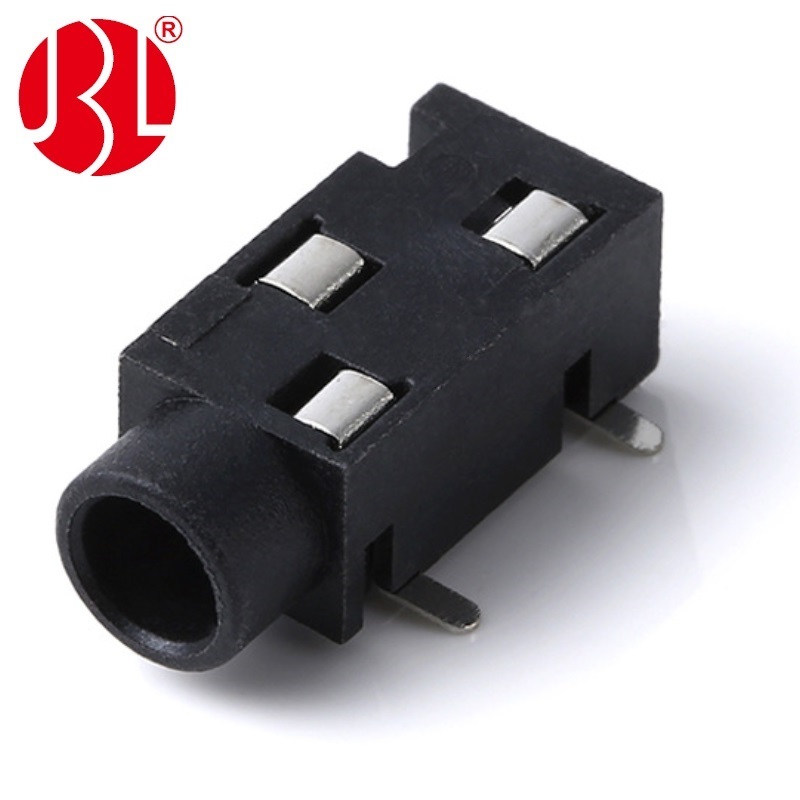

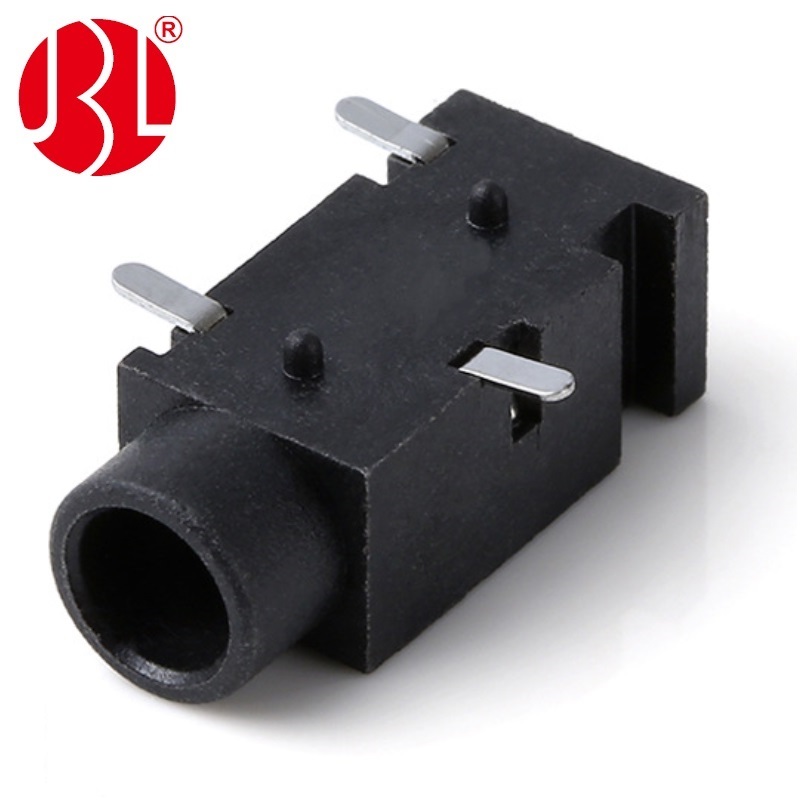

PJ-320B TRS Audio Jack SMD Right Angle
-
-
The 3.5mm Stereo Phone Jack is a compact and reliable audio connector designed for use in various electronic devices. Featuring an SMD (Surface Mount Device) right-angle design, this jack allows for space-saving installation in devices where traditional straight jacks would be impractical.
The jack is a TRS (Tip, Ring, Sleeve) type, which supports stereo audio signals through its 3 conductors. It does not include a switch, allowing for a simpler and more streamlined design. The 3.5mm size is a standard in the audio industry, ensuring compatibility with a wide range of headphones, headsets, and other audio peripherals.
This jack is perfect for applications requiring high-quality audio transmission with limited space constraints. Its robust construction and reliable performance make it an excellent choice for audio engineers and enthusiasts looking to incorporate high-fidelity audio connectivity into their electronic devices.

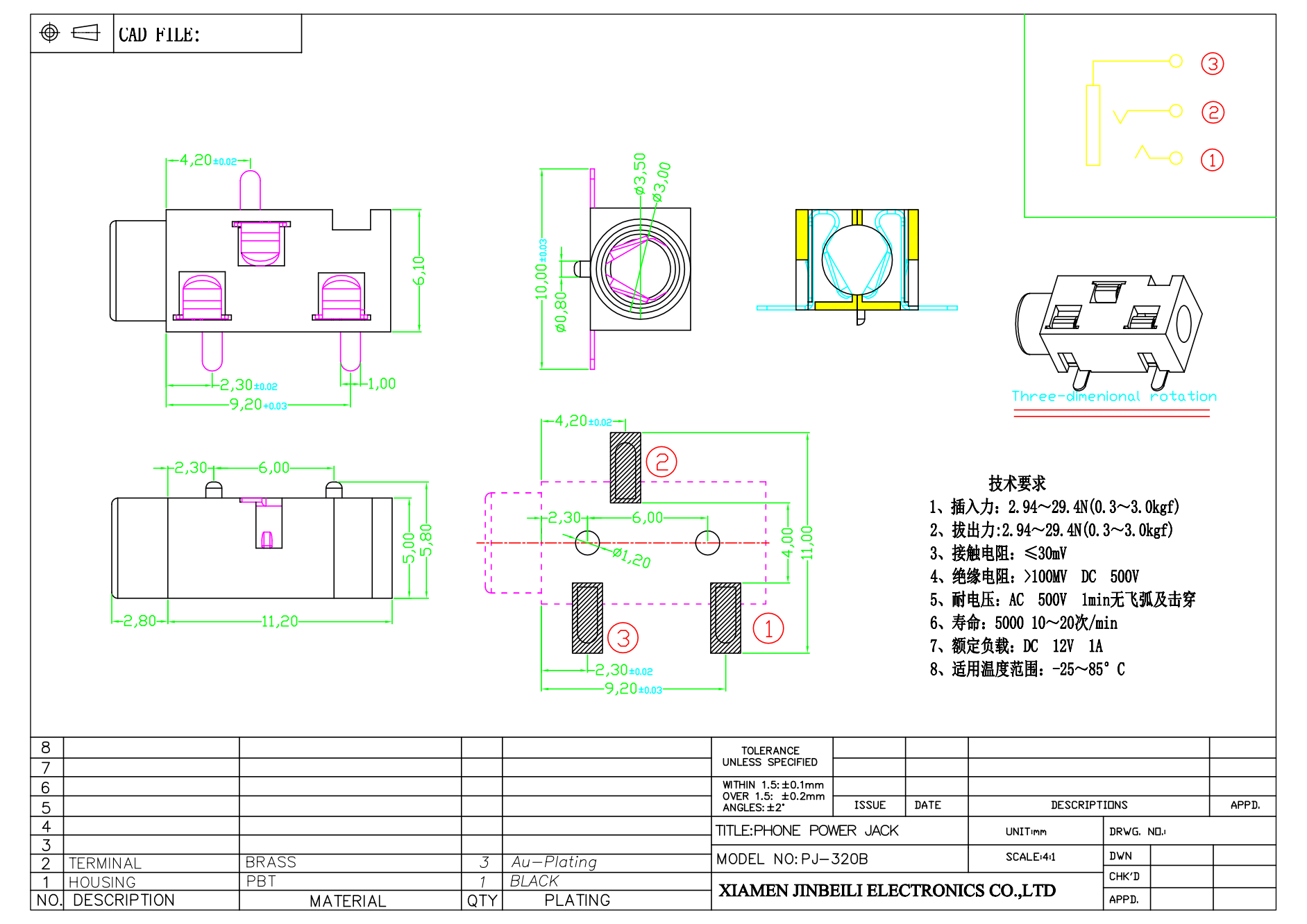

Datasheets :
