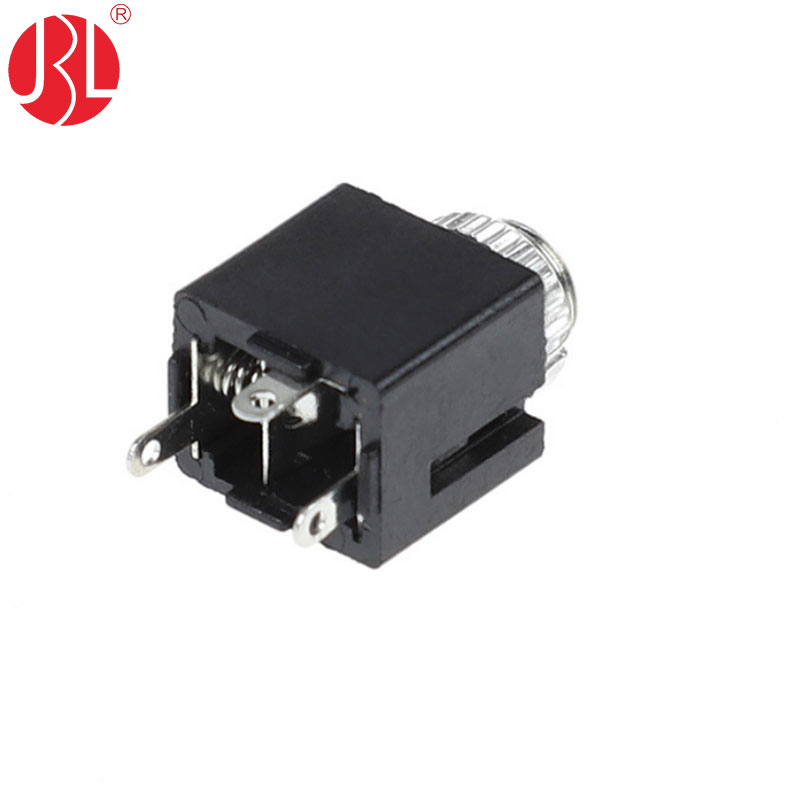

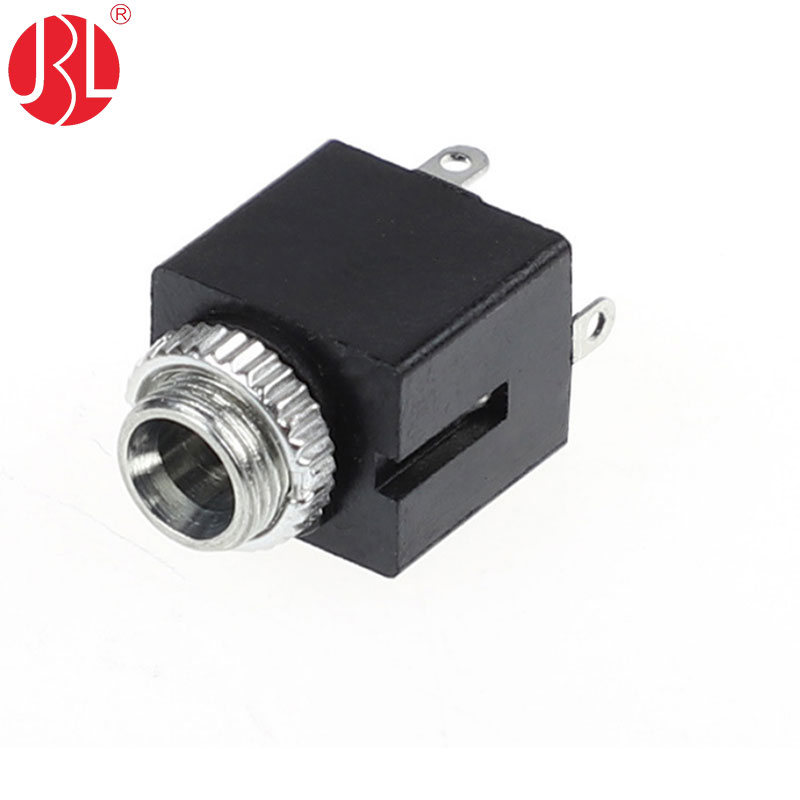

PJ-301CM Panel Mount Audio Jack 3.5mm
-
-
The 3.5mm audio jack is a small, circular connector commonly used for transmitting audio signals. This particular version is a panel mount M6 Bulkhead jack, meaning it is designed to be mounted through a panel or bulkhead, with an M6 thread for secure installation. It features solder terminals for easy and reliable electrical connection.
The jack is a 3-conductor TRS (Tip, Ring, Sleeve) type, which allows for stereo audio transmission as well as a ground connection. It does not have a switch, making it a straightforward and reliable option for audio applications.
As an alternative to the Marushin Electric Jack MJ-355W or Kobiconn Jack 161-MJ355W-EX, this 3.5mm audio jack offers similar functionality and performance in a compact and durable design. It is suitable for use in a variety of audio applications, including headphones, speakers, and audio interfaces. With its panel mount design and solder terminals, it is easy to integrate into existing systems and provides a reliable and cost-effective audio connection solution.

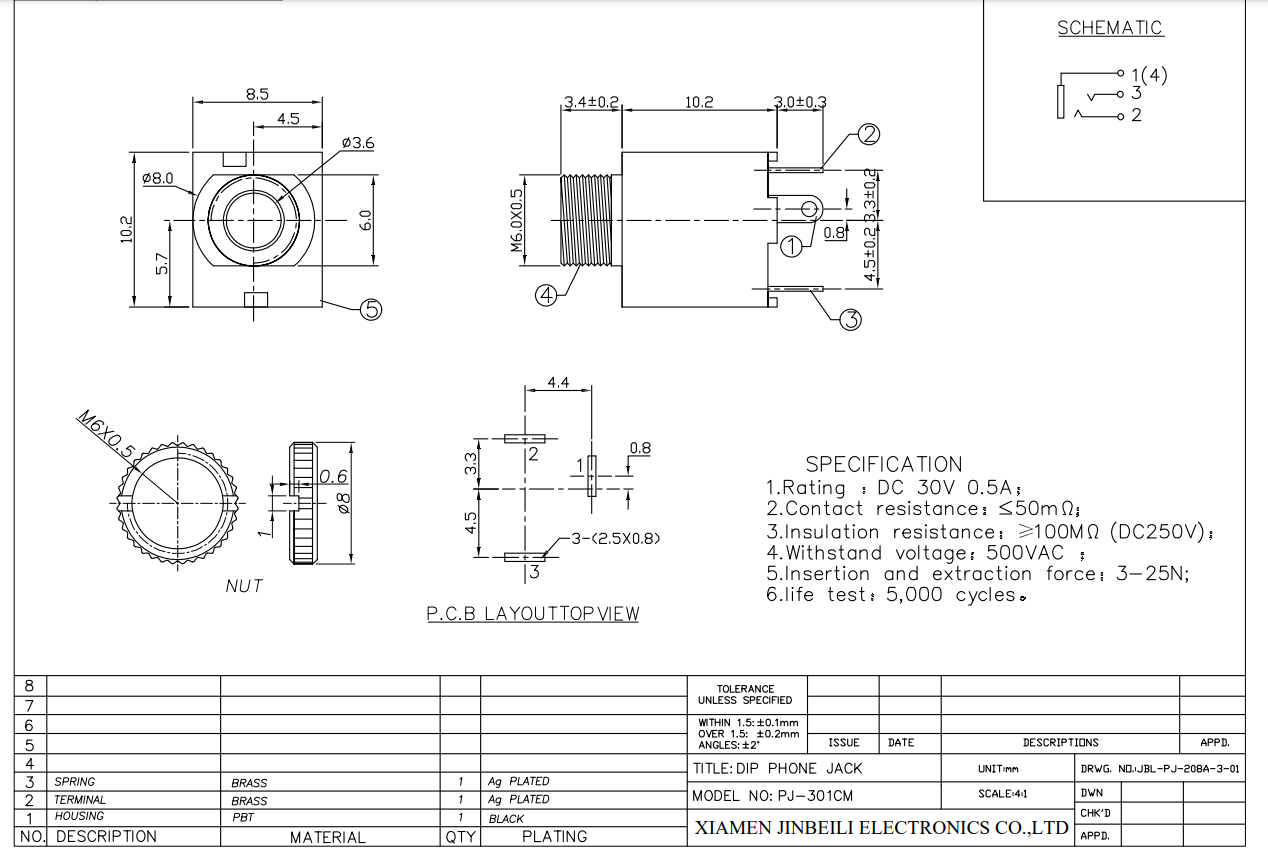

Datasheets :
