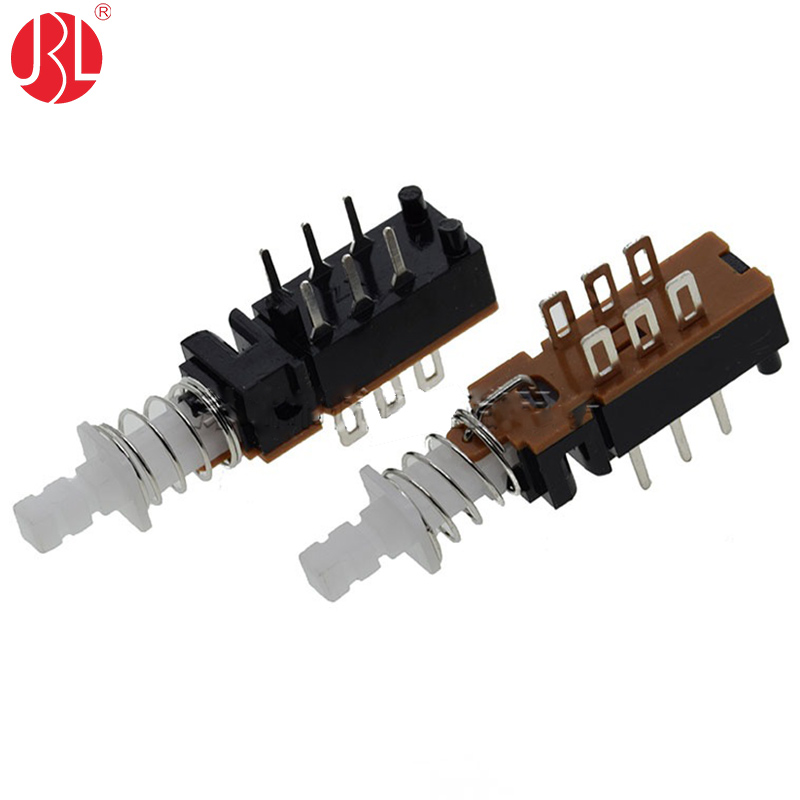

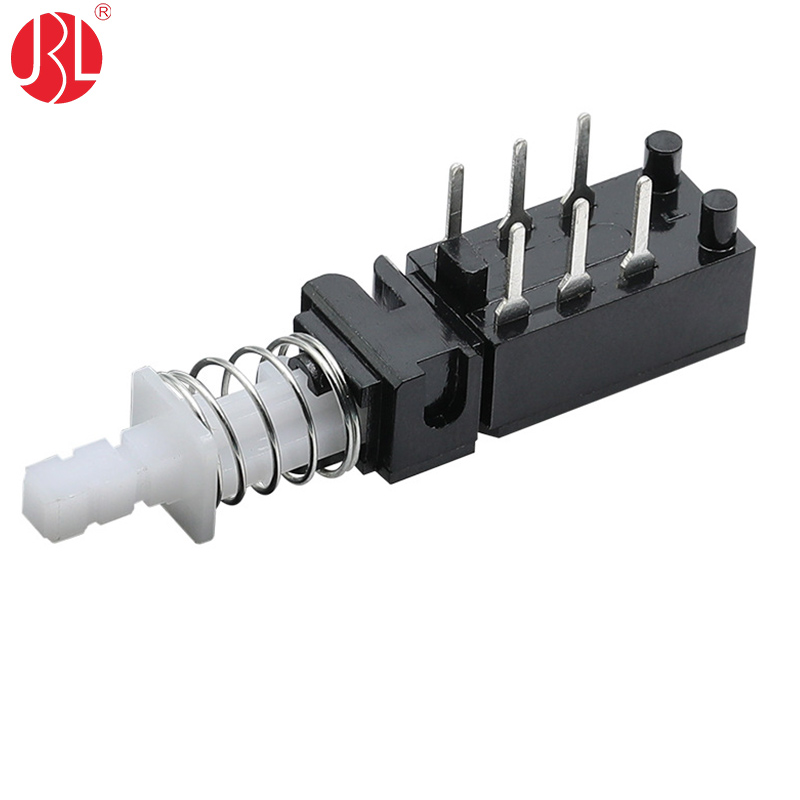

PBS-22H03 DPDT Push Button Switch THT Hole Right Angle
-
-
This DPDT (Double Pole Double Throw) Push Button Switch is a versatile and compact component designed for reliable switching in various electronic applications. It features through-hole, right-angle PC pin terminals for secure PCB mounting, ensuring stable connections in tight spaces. The switch offers two operation options: latching (maintains state after pressing) and momentary (returns to default when released), providing flexibility for different circuit requirements.
Rated for 30V DC and 0.5A current, this switch is suitable for low-power control circuits, signal switching, and small electronic devices. Its double-pole, double-throw (DPDT) configuration allows it to control two separate circuits simultaneously, making it ideal for applications requiring multi-circuit switching.
Constructed with durability in mind, this push button switch serves as a direct alternative to C&K models F2UOA01AAU, F2UOATBAU, and F2UOA TB, offering similar performance and compatibility. The right-angle design helps save space in compact layouts, while the PC pin terminals ensure easy soldering and strong mechanical retention on PCBs.
Whether used in industrial controls, consumer electronics, or DIY projects, this DPDT push button switch provides dependable performance with the convenience of both latching and momentary operation modes.
