new 3 way switch SMT type SM3-05N

Short Description:


Product Detail

Product Tags

Description  of this new 3 way switch SMT type SM3-05N
SPDT microswitch Micro Switch Roller tip lever Snap action switch

Parameter of this new 3 way switch SMT type SM3-05N

*Key Specifications 1. Rating Current:1A MAX
2. Rating Voltage:DC 12V
3. Contact Resistance: 100mΩMax
4. Insulation Resistance: 100MΩMin
5. Dielectric Strength: AC 100V for 1min
6. Operating Force: Mid-Push:45gf±15gf
7. Operating Life: 100,000 cycles
8. Salt Spray Test: NSS 24H(Can be customized according to customer requirements)
9. Operating Temperature:-20°C~+70°C

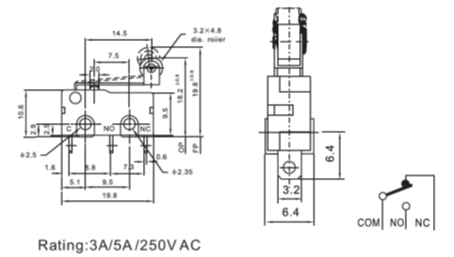

*Product Size                          (Dimensional drawing is for reference only,for detailed specifications,contact us pls.)

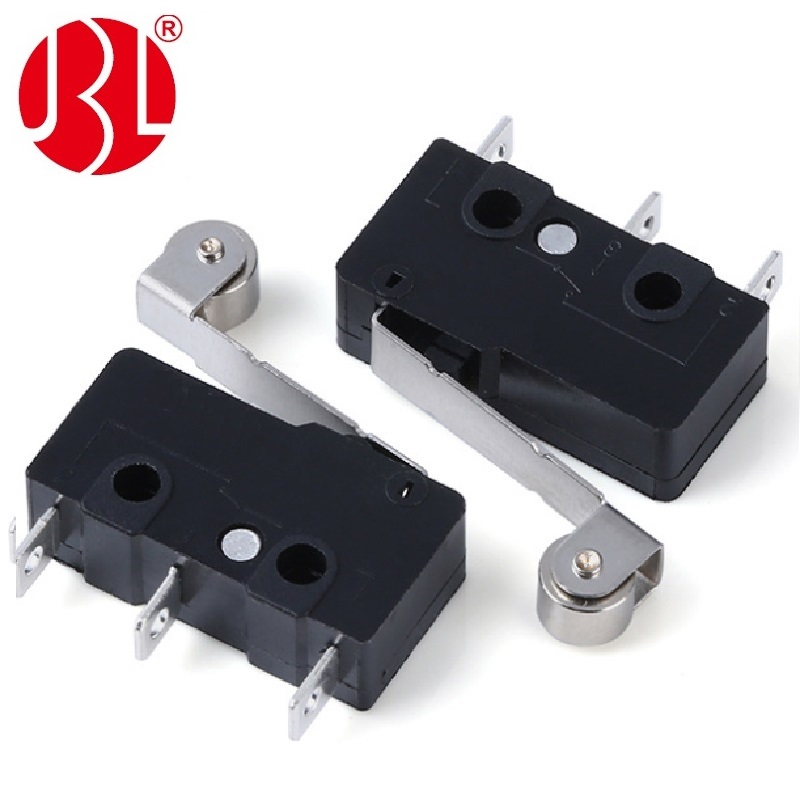

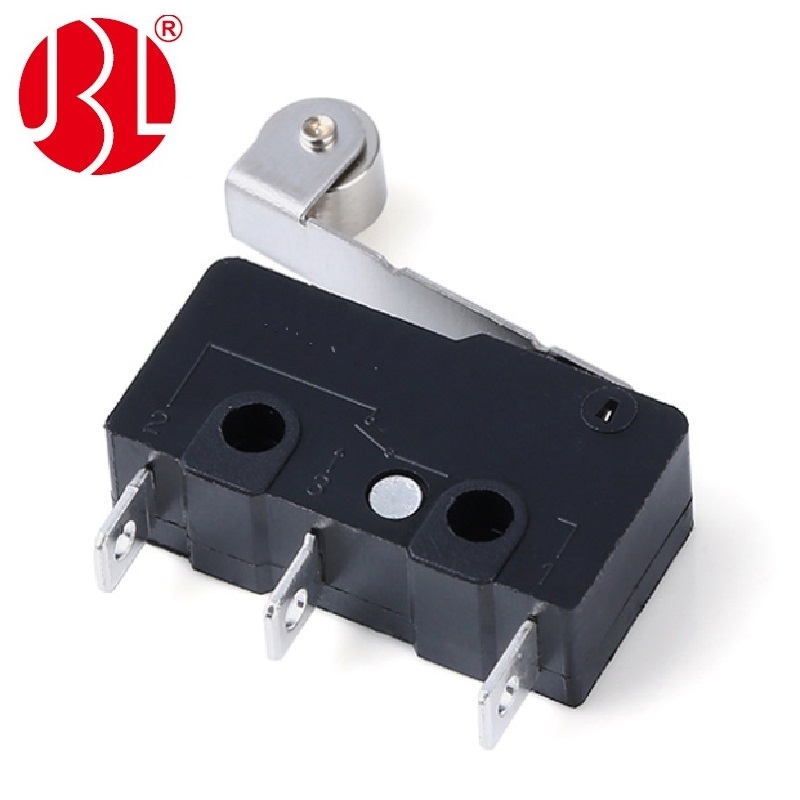

Image of this new 3 way switch SMT type SM3-05N

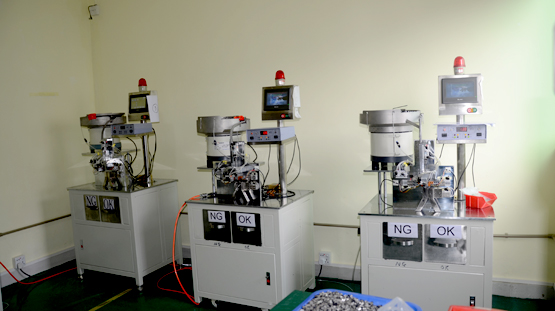

Our Factory  of this new 3 way switch SMT type SM3-05N

Our Service  of this new 3 way switch SMT type SM3-05N



 Certifications of this new 3 way switch SMT type SM3-05N
