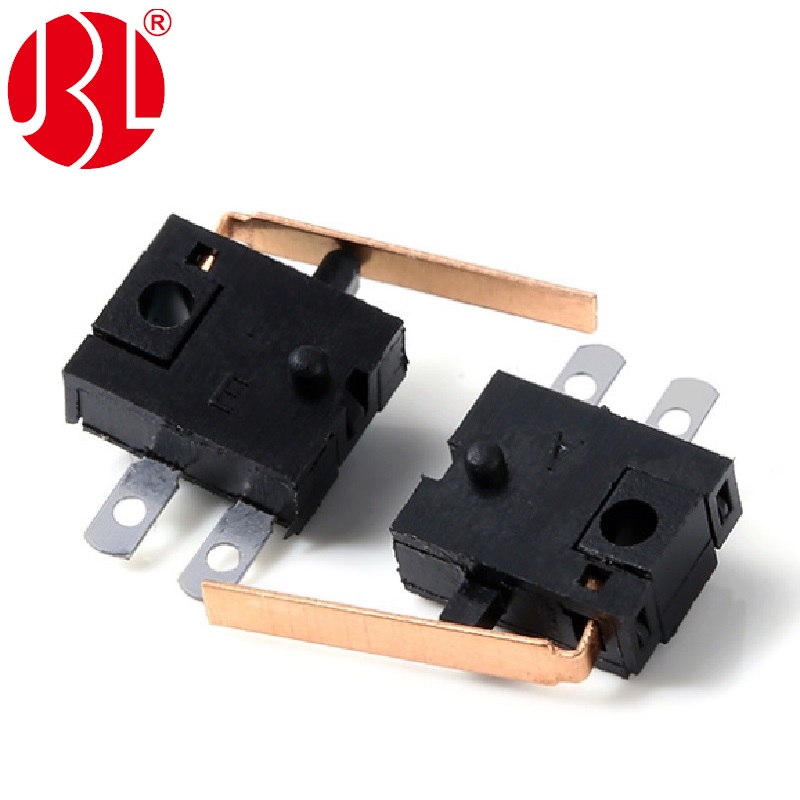

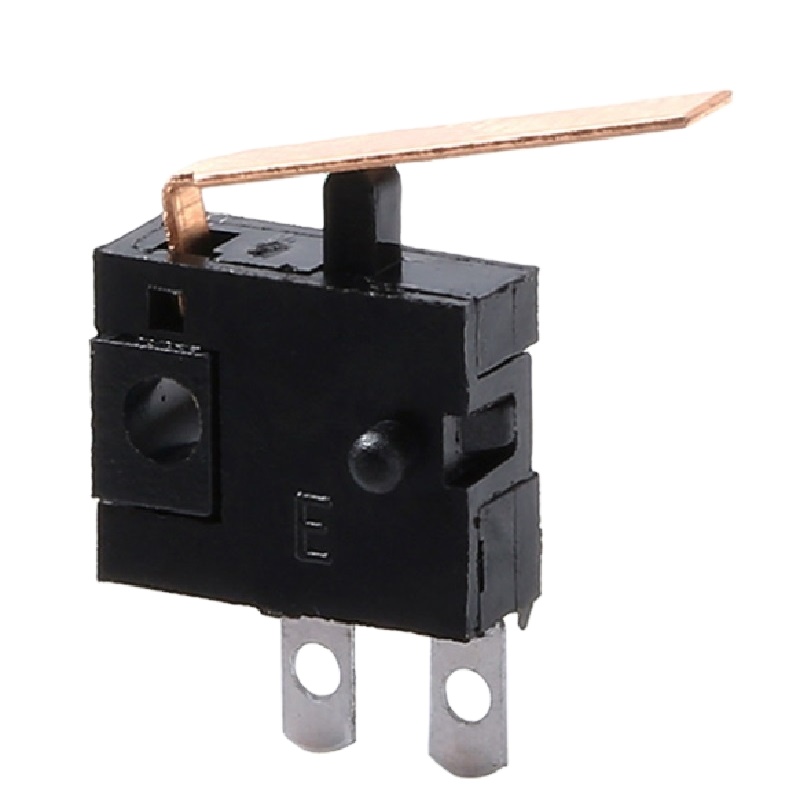

MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch
English

MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch

MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch Featured Image
  • MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch
  • MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch
  • MX-1201 Detector Switch 8×6.5mm DIP Through Hole Solder Plug Snap Action Switch

Short Description:

Snap acting switch limit switch 6.5×8 mm DIP Through Hole 5V 10mA.


Download as PDF

Product Detail

Product Tags

Product Descriptions :

Product name : Detector Switch

Features : DIP ,Through Hole

Power Rated : 5V 10mAh

Operating force options : 35gf

Operating life : 100000 cycles

Working Temp : -25°C ~ 85°C

Packaging : bag

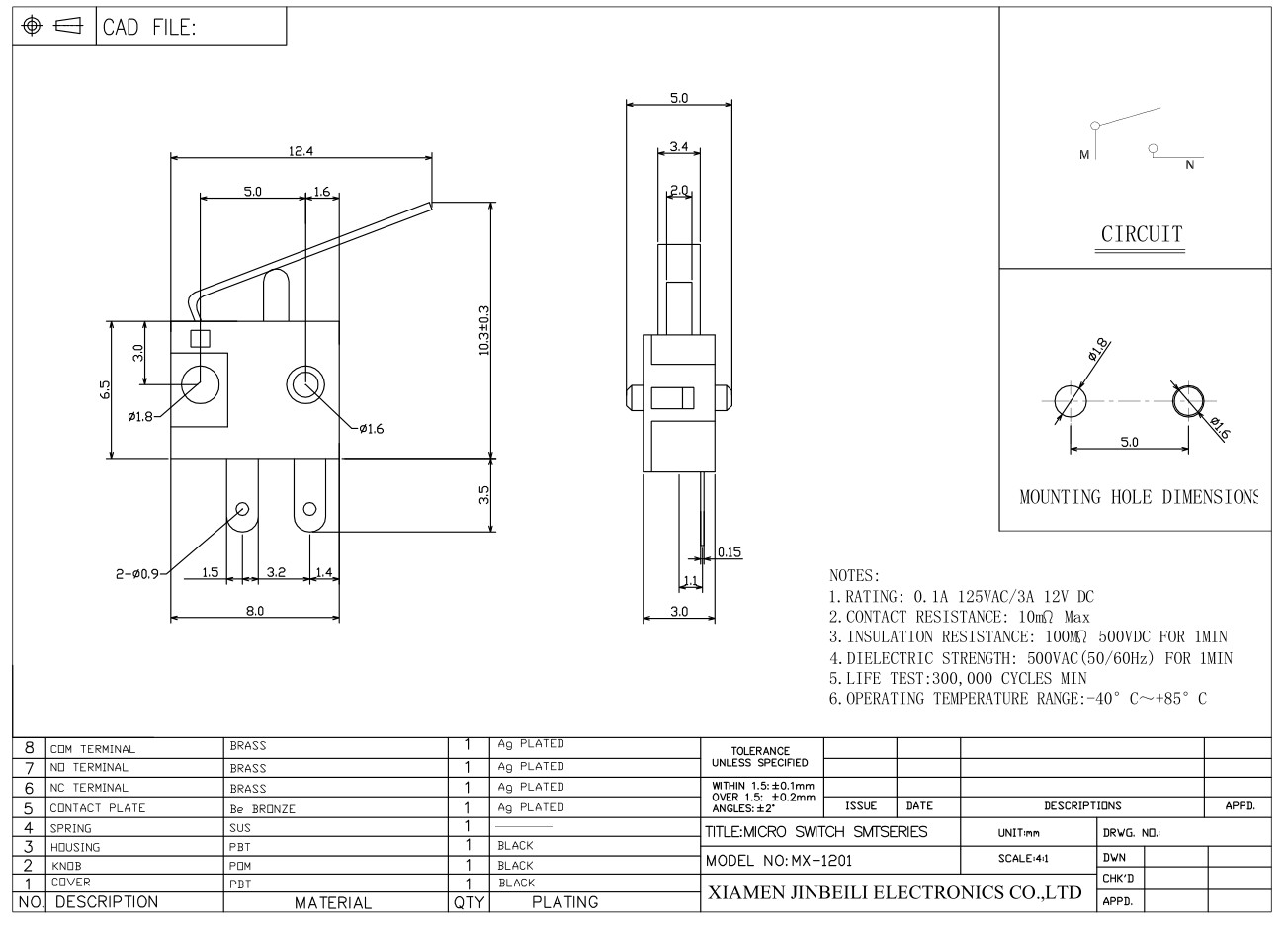

Datasheets :

mx-1201 detector switch (2)
