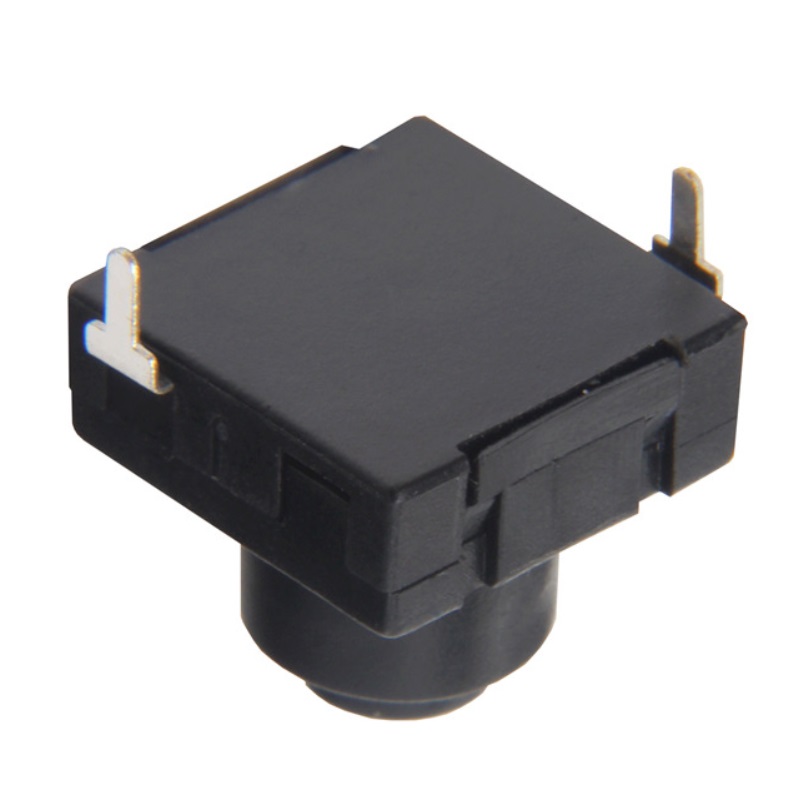

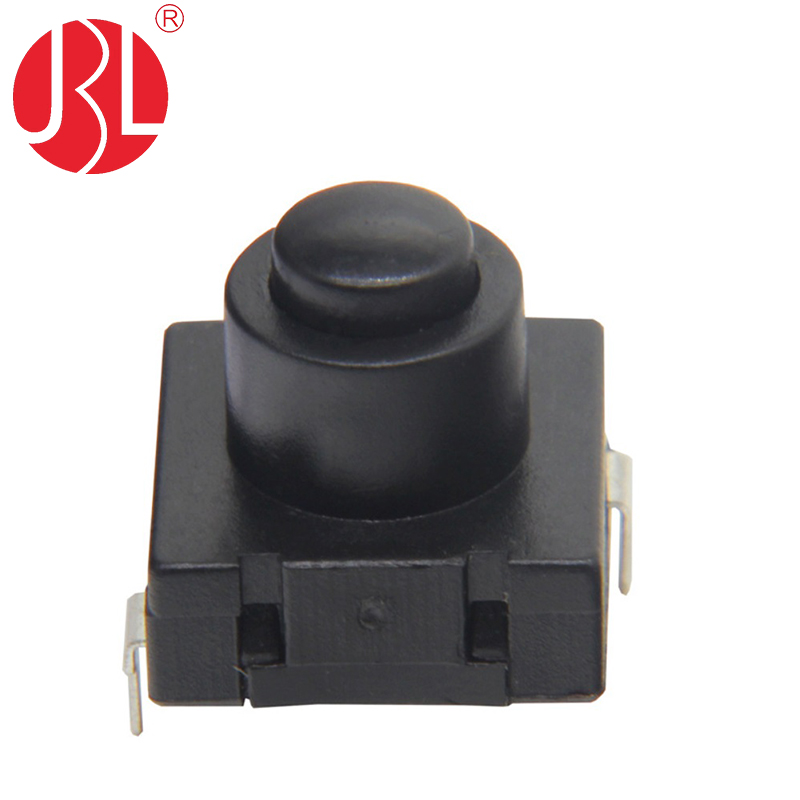

JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical
English

JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical

JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical Featured Image
  • JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical
  • JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical
  • JBL8-1120-201 ON-OFF Flat Pushbutton Switch 12x12mm 2Pin Through Hole DIP Vertical

Short Description:

ON OFF Push button switch 12×12 mm 2P DIP Vertical DC50V 0.5A


Download as PDF

Product Detail

Product Tags

Product Descriptions :

Product name : Push button switch

Features : DIP, Vertical

Switch Function : On-Off

Power Rated : DC14V 2A

Operating force options : 750gf / customization available

Actuator height off PCB : 8.6mm / customization available

Actuator color options : Black , Red / Customization available

Operating life : 50000 cycles

Working Temp : -25°C ~ 85°C

Packaging : BAG

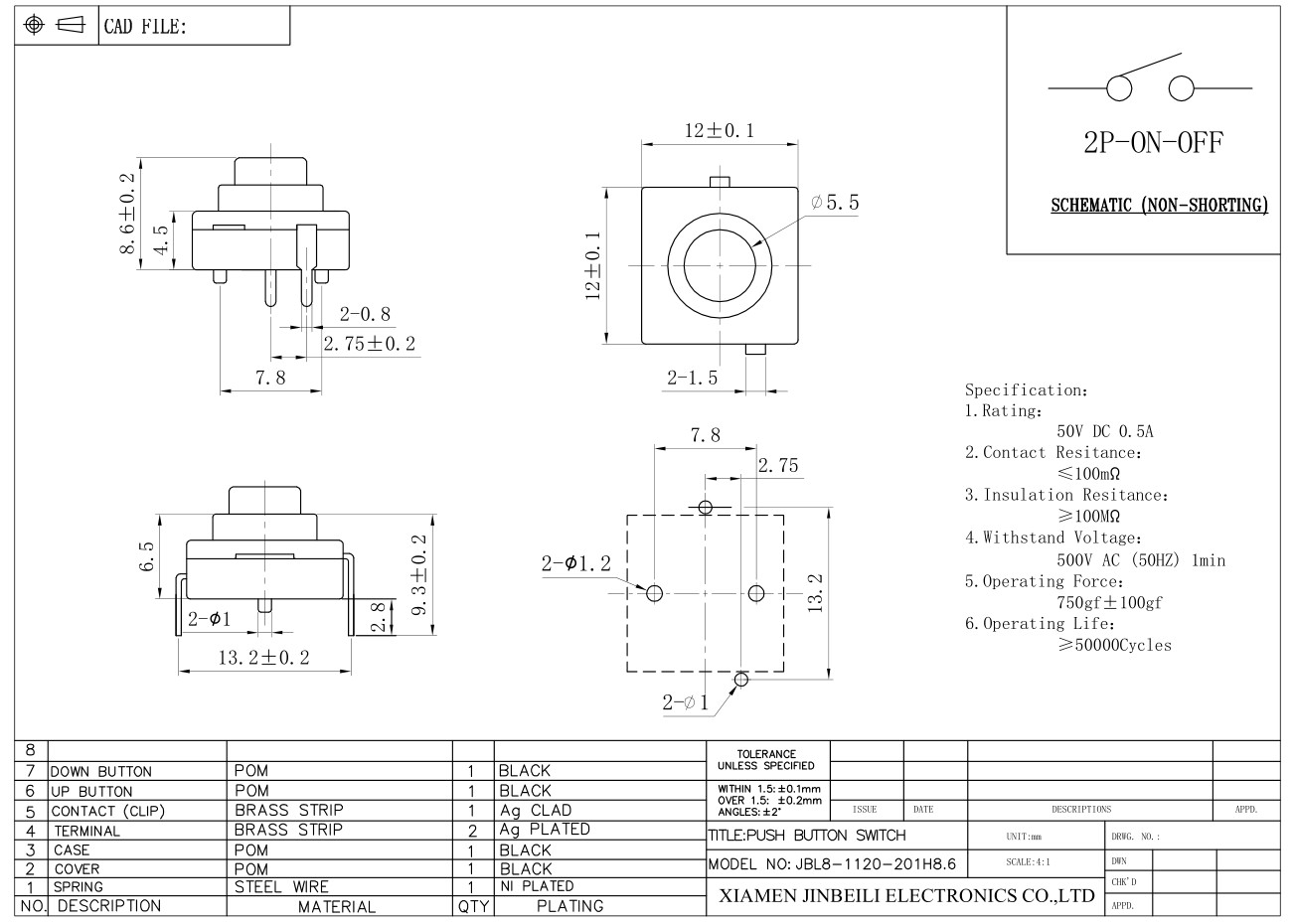

Datasheets :

on off switch (2)
