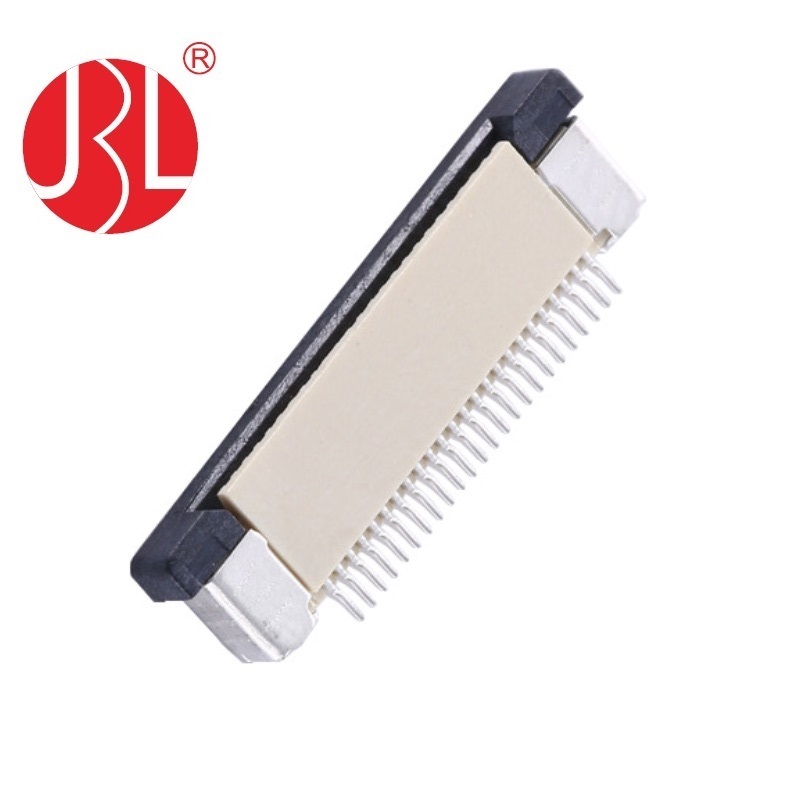

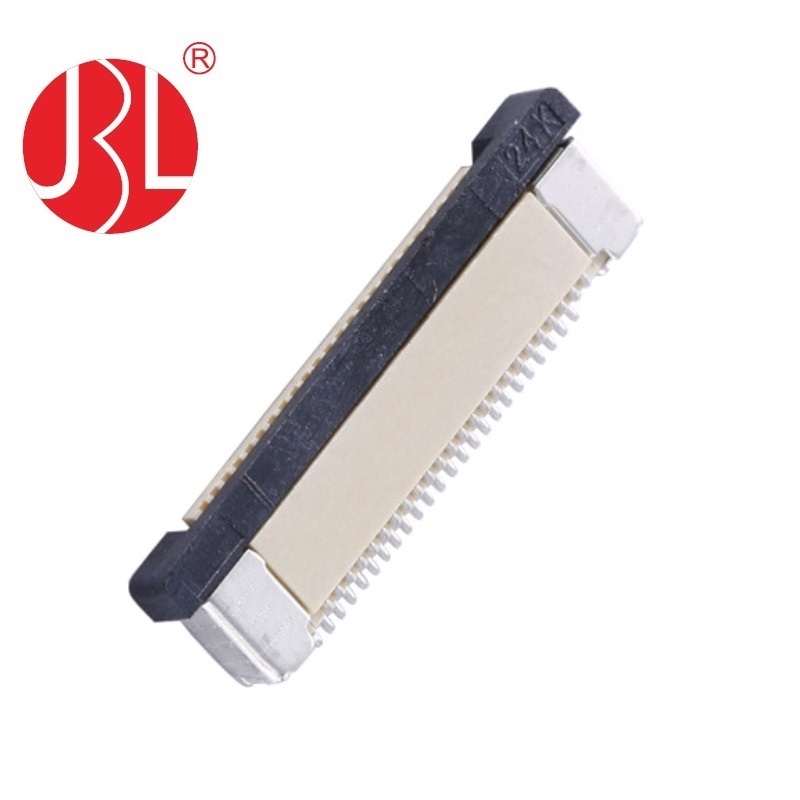

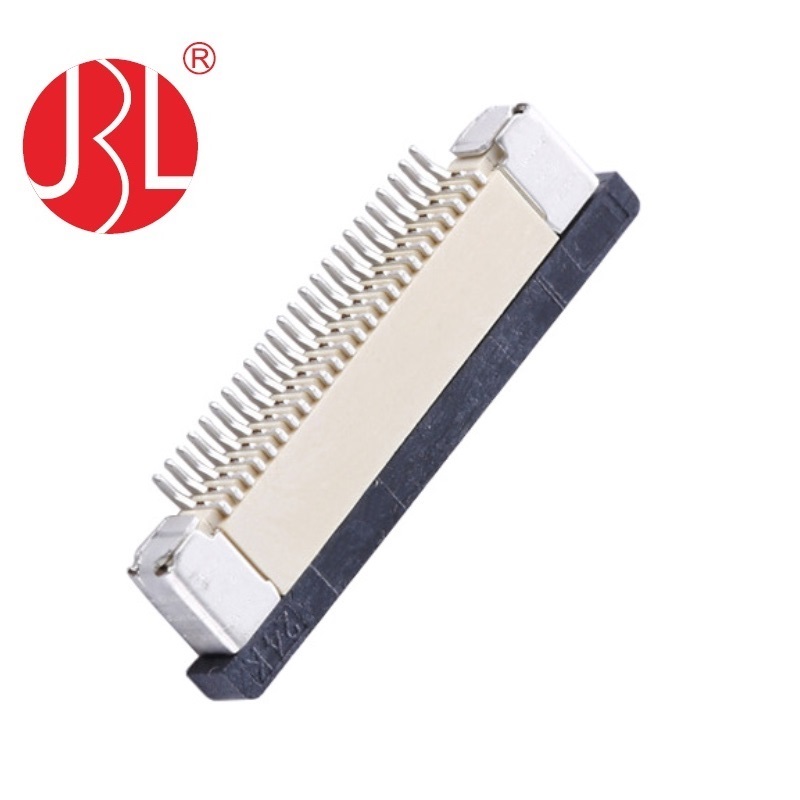

FPC FFC Connector 0.5mm Pitch 31 POS Right Angle IL-FPR-31S-HF-N1 Contact Numbers Customization

Short Description:

31 Position FPC Connector Contacts, Bottom 0.020″ (0.50mm) Surface Mount, Right Angle

FPC FFC Connector 0.5mm Pitch 31 POS Right Angle IL-FPR-31S-HF-N1 Contact Numbers Customization

Replacement part :

0541323362，ZF5S-40-01-T-WT，F32R-1A7H1-11008，24FLZ-RSM2-TB(LF)(SN)，ZF5S-50-01-T-WT，68711614522，ZF5S-25-01-T-WT-K-TR，10085901-50115EHLF，ZF5S-10-01-T-WT-TR，ZF5S-20-01-T-WT-K-TR，ZF5S-40-01-T-WT-TR，ZF5S-10-01-T-WT，

Send email to us Download as PDF

Product Detail

Product Tags

Model Number:FPC-0.5A-WTX(S)-nP
Flat Flex Type: 0.5mm pitch FPC Connector
Place of Origin: Xiamen, China
Brand: jinbeili
Packaging: tape and reel, Tape & Reel (TR)
Description: 0.5MM FPC Connector
Current Rating: 0.5A
Voltage Rating: DC/AC 50V
Height Above Board: 0.079″ (2.00mm)
Gender: Female
Locking Feature: Slide Lock
Supplier Type: Original manufacturer
Product Description
Product Name : 0.5mm Pitch FPC Connector
Rating : 50V DC/AC , 0.5A
Mounting Angle : Right angle SMT
Position number : 4 to 60 Pins Customizable as buyer’s request
Applicable Cable : 0.3mm flat Proper cable
Termination Style : SMD / SMT
Housing: LCP
Contact Material : Phosphor Bronze with Gold Plating
Insulation Resistance: 1000MΩ（MIN）
Contact Resistance : 0.02Ω（MAX）
Dielectric Withstanding Voltage: 500V AC for 1 min
Operation Temperature Range : -25°C ~ +85°C

Replacement part :

1734592-6，0527450497，1-1734592-0，1-1734592-4，1-1734839-2，0527450697，62684-452100ALF，62684-501100ALF，62684-401100ALF，0527460671，68710614522，0527460871，0527451033，62684-502100ALF，0527451297，30FLZ-RSM2-TB(LF)(SN)，0541045033，08FLZ-SM2-TB(LF)(SN)，12FLZ-SM2-TB(LF)(SN)，68710814522，0527450833，62684-40110E9ALF，68711014522，20FLZ-SM2-TB(LF)(SN)，24FLZ-SM2-TB(LF)(SN)，68712414522

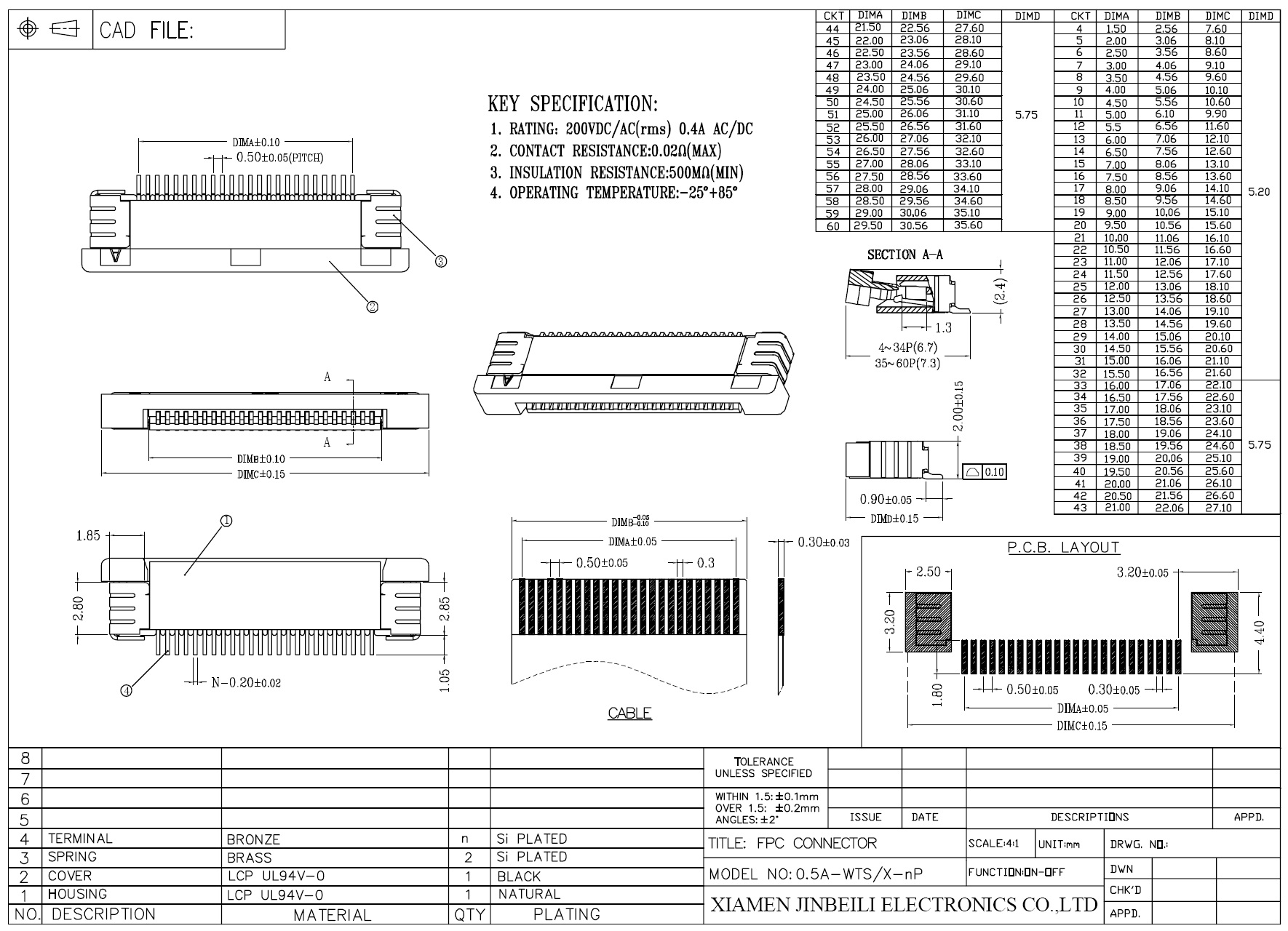

Datasheet:
