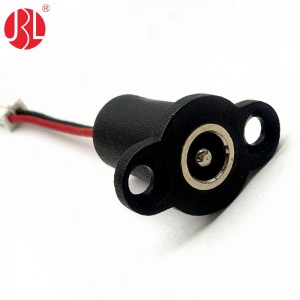

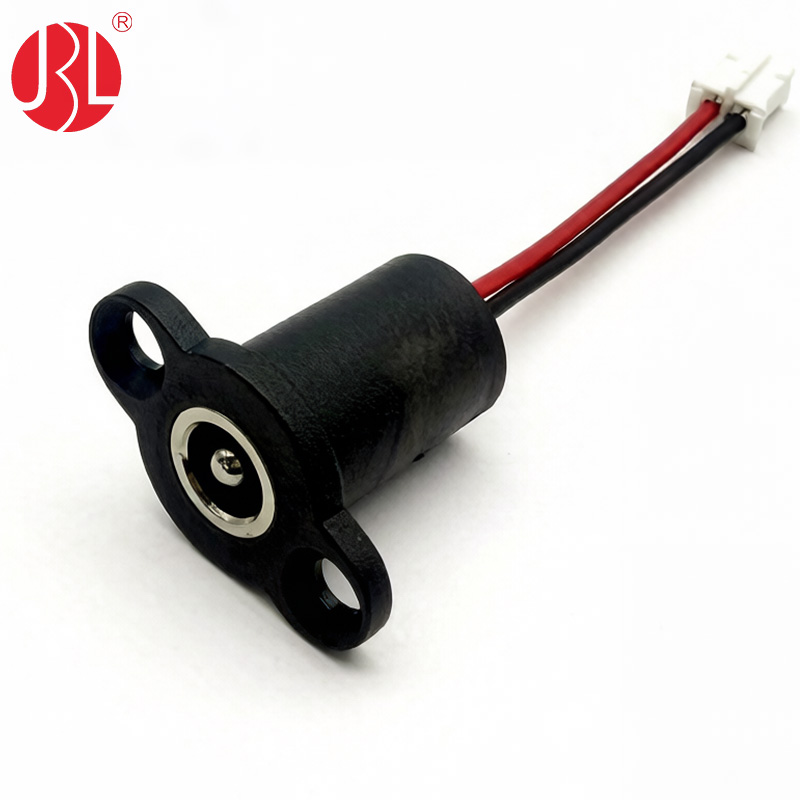

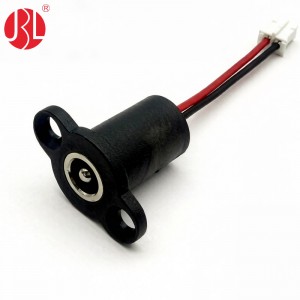

Sealed DC Power Jack – Flange Mount (Chassis Mount)

This rugged Sealed DC Power Jack is engineered for reliable panel-mount applications where protection against moisture and debris is critical. Designed with a screw-lock flange (chassis mount) , it ensures secure attachment to enclosures, instruments, or industrial equipment. The rear section is fully encapsulated through an overmolding process, creating a robust environmental seal that guards the internal solder joints and wire leads against vibration, dust, and humidity—ideal for demanding outdoor or automotive environments.

Rated at DC30V / 3A, the jack accepts two common center pin configurations: 5.5×2.0mm and 5.5×2.5mm, offering versatile compatibility with standard DC plugs. Pre-attached wire leads are available in multiple gauges—22AWG, 24AWG, or 26AWG—providing flexibility for different current and space requirements. Wire length is customizable from 50mm to 1000mm, allowing direct integration into devices without additional soldering or internal cabling. This sealed, flange-mount jack delivers a durable, ready-to-use power input solution for medical devices, security systems, battery chargers, and industrial controls.
