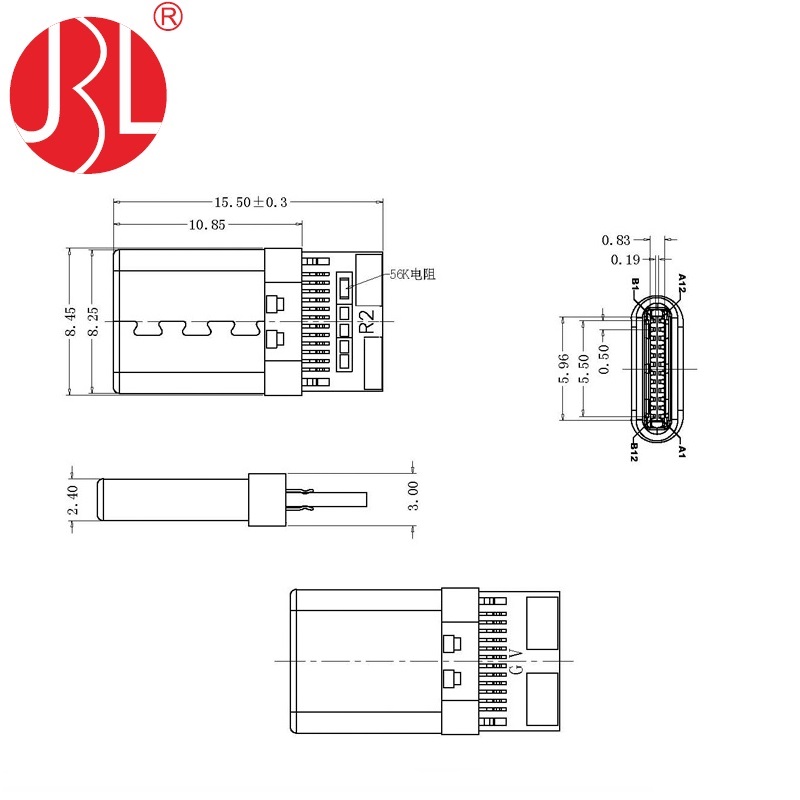

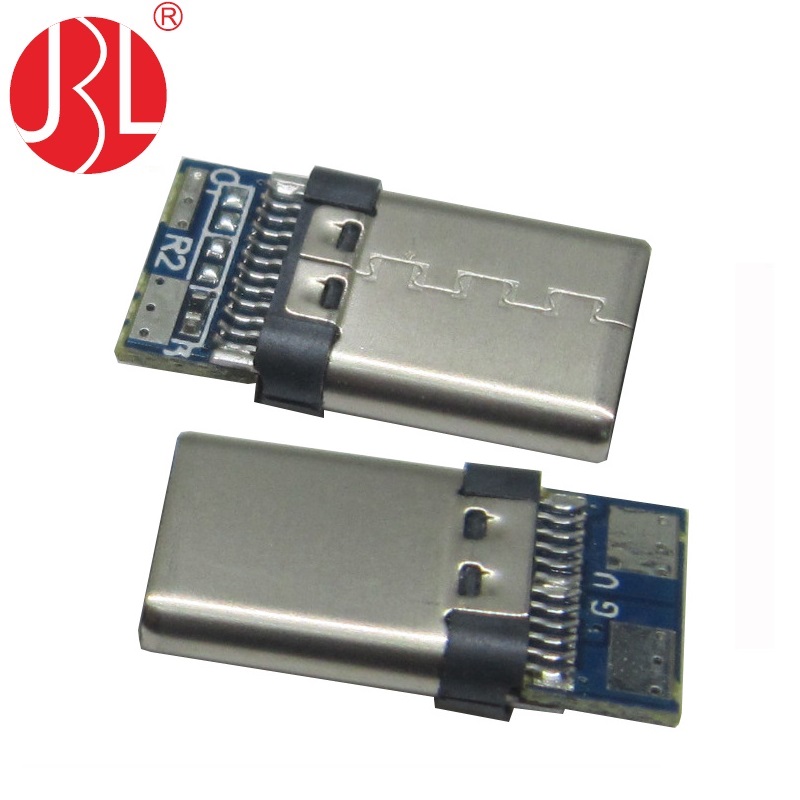

Custom Wire Mount USB Type C Plug 24 Postion with PCB Assembly
-
-
-
Product Descriptions :
Product name : USB Type C
1.Current Rating: 5A MAX.
2.Voltage Rating: 20V AC/DC
3.Contact Resistance: 40mΩ
4.Insulation Resistance: 100MΩ
5.Dielectric Withstanding Voltage: 100VAC
6.Durability: 10,000 Cycle
7.Insertion Force: 5N to 20N
8.Extraction Force: 8N to 20N
9.Operating temperature range: -40°C~+105°C
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
Datasheets :
Product design & development, Tooling ,Moulding and Manufacturing :
