Custom Single Row Pin Header 1.0mm Pitch Surface Mount Vertical Board to Board Connector

Product Descriptions :

Product name : 1.00mm Pitch Pin Header

Features : Surface Mount , Vertical

Position Numbers : customized as buyer’s request

Position Length : customized as buyer’s request

Housing Height : customized as buyer’s request

Contact Shape : square / customized as buyer’s request

Rating：AC 125V 1A

Contact Resistance: 100mΩMax

Insulation Resistance: 100MΩMin

Dielectric Strength: AC 500V for 1min

Operating Life: 5,000 cycles

Working Temp : -55°C~+105°C

Packaging : tape and reel

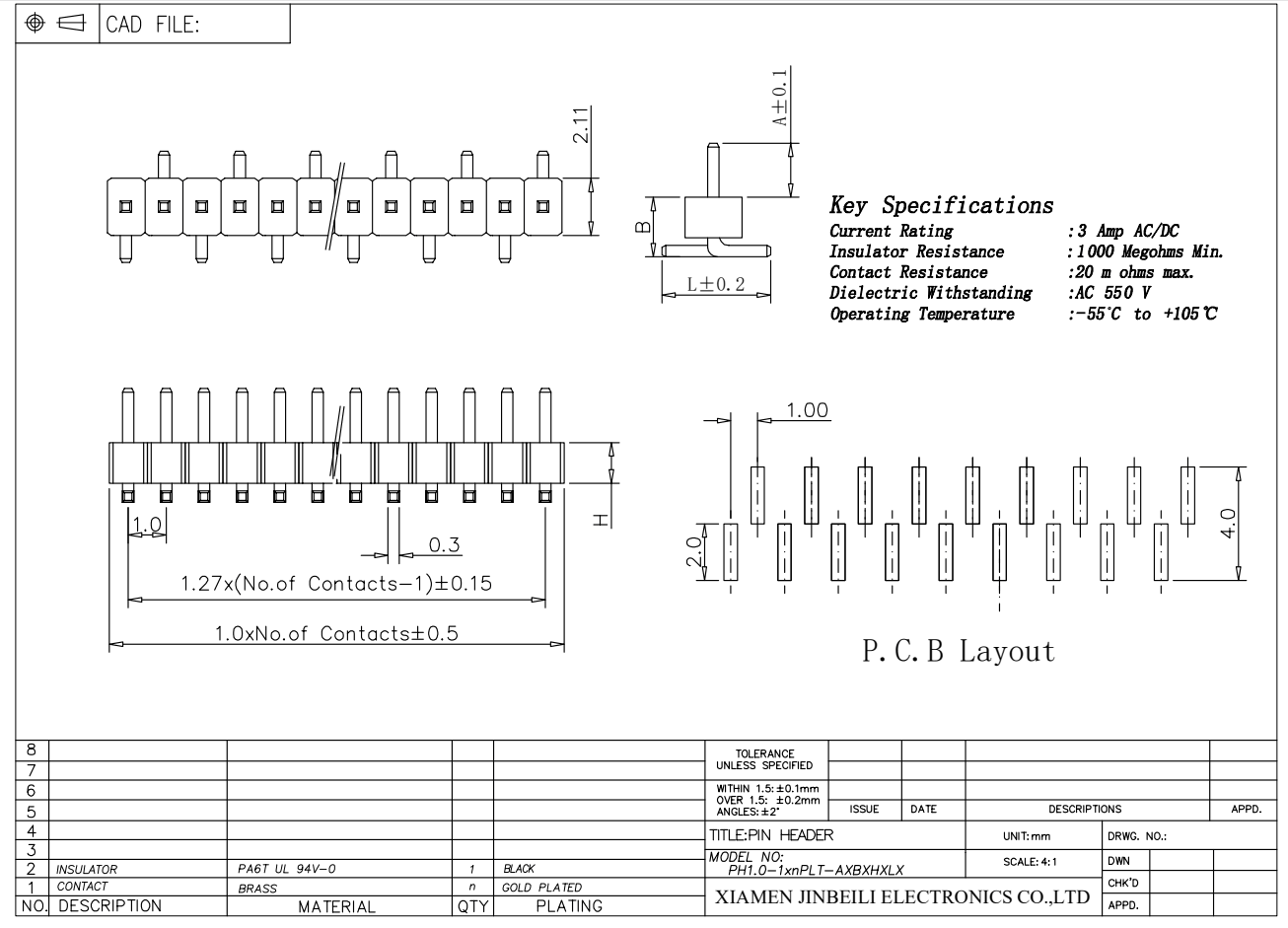

Datasheets :
