Short Description:

Anti Vandal Pushbutton Switch 12mm Panel Mount 2A 250V SPST Momentary or Latching Customization Available


Download as PDF

Product Detail

Product Tags



12mm Anti Vandal Illuminated Push Button Switch OD 12mm Panel Mount



Description :

1.Circuit:SPST
2.Current Rating: 0.4A/2A
3.Voltage Rating: 250V AC/36V DC
4.Dielectric withstanding voltage: 1000VAC for 1 min
5.Contact Resistance:50m ohm max
6.Insulation Resistance:100M ohm min
7.Operating Force:400gf±150gf
8.Total Travel:1.5mm±0.5mm 9.Operating life:200,000Cycles
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
11.Funcition: Momentray ON-OFF/OFF-(ON) 12. Operating Temperature:-20°C~+85°C 13.Degree of protction:IP65

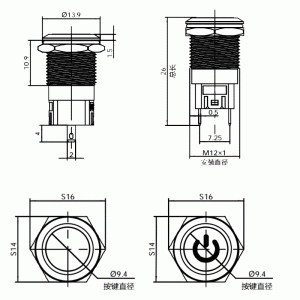

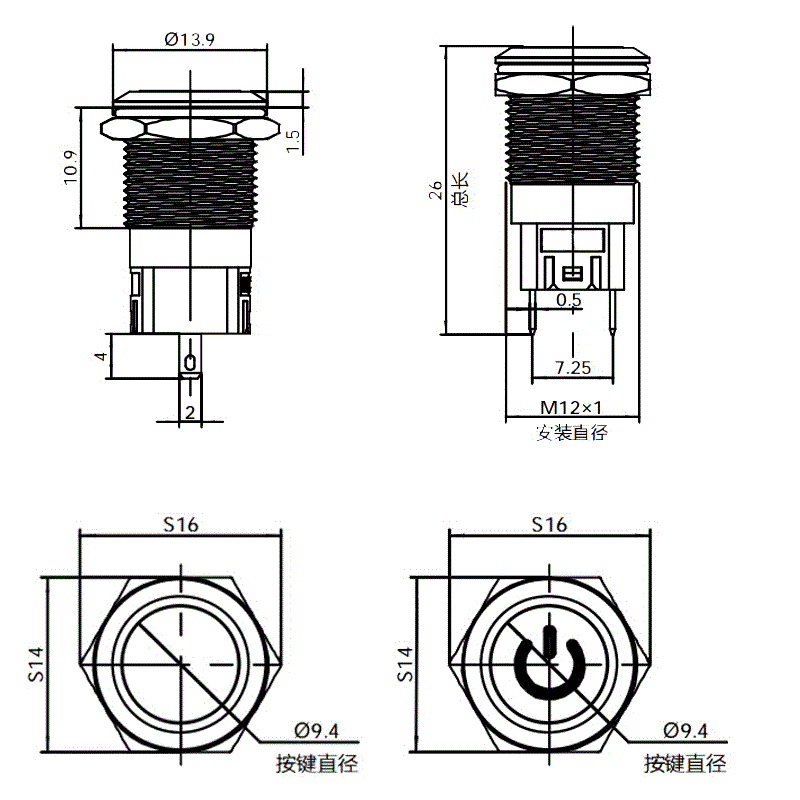

Datasheet :

12mm anti vandal pushbutton switch (1)



Product design & development, Tooling ,Moulding and Manufacturing :



Jinbeili component manufacturer
