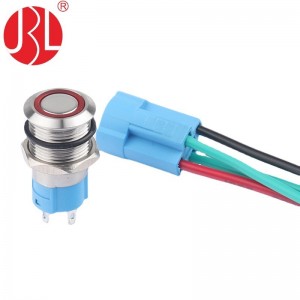

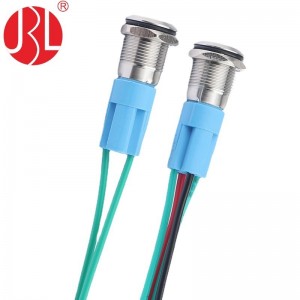

Custom Illuminated Flat Push Button Switch 12mm

12mm Flat Anti Vandal Illuminated Push Button Switch OD 12mm Panel Mount

Description :

1.Circuit:SPST
2.Current Rating: 0.4A/2A
3.Voltage Rating: 250V AC/36V DC
4.Dielectric withstanding voltage: 1000VAC for 1 min
5.Contact Resistance:50m ohm max
6.Insulation Resistance:100M ohm min
7.Operating Force:400gf±150gf
8.Total Travel:1.5mm±0.5mm 9.Operating life:200,000Cycles
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
11.Funcition: Momentray ON-OFF/OFF-(ON) 12. Operating Temperature:-20°C~+85°C 13.Degree of protction:IP65

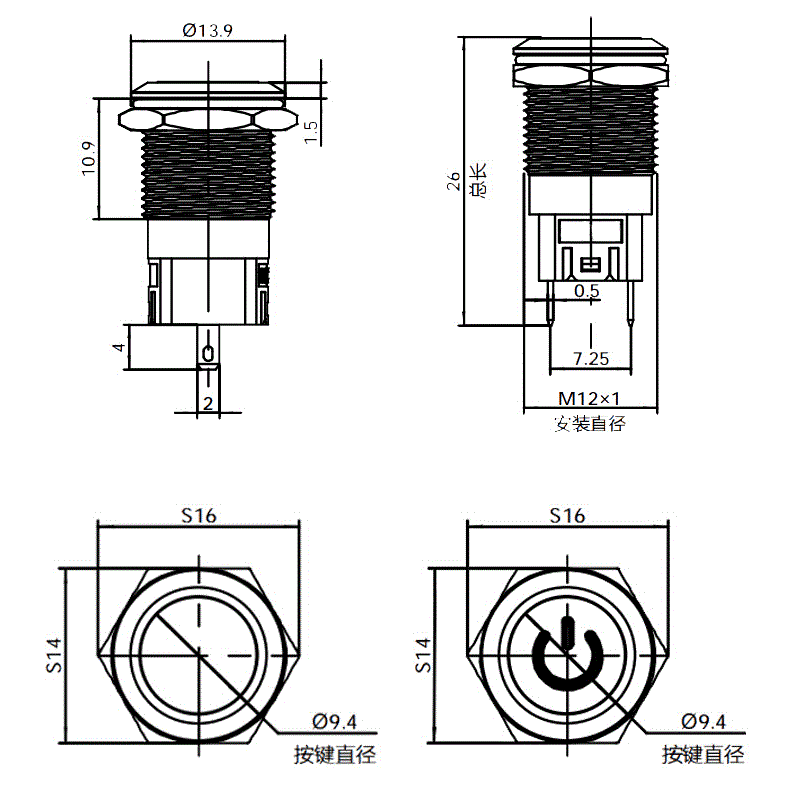

Datasheet :

Product design & development, Tooling ,Moulding and Manufacturing :
