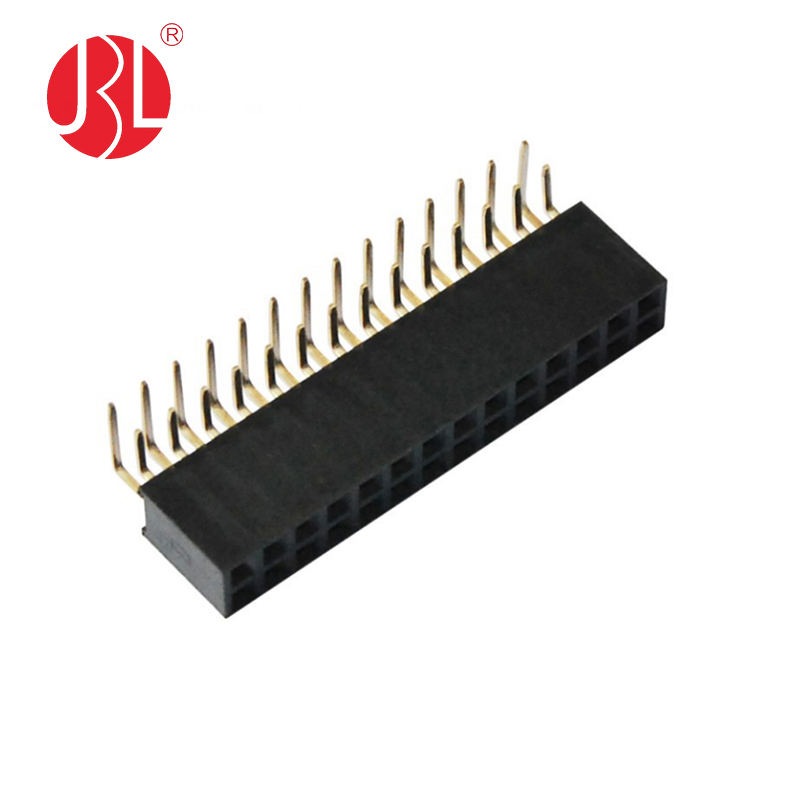

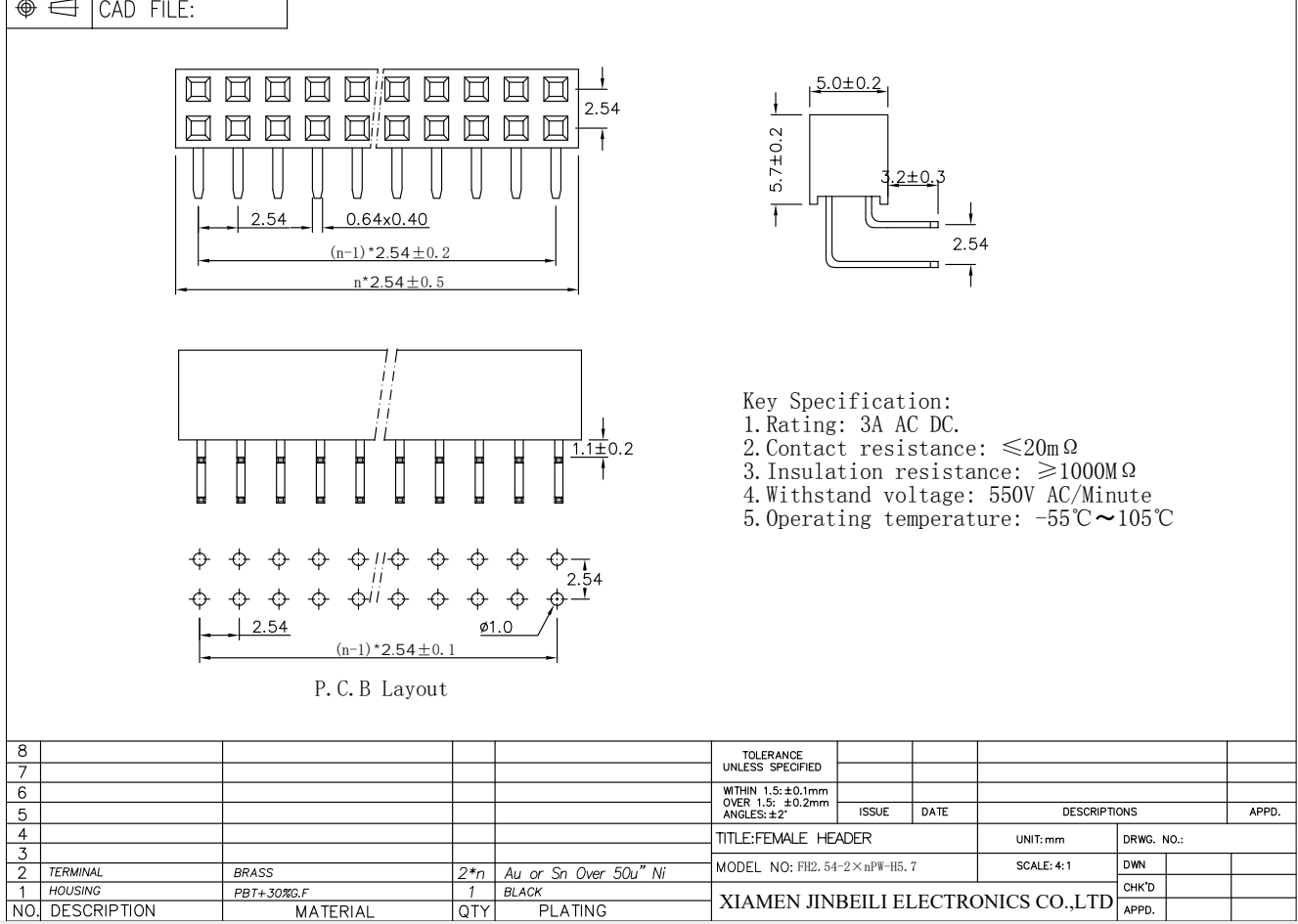

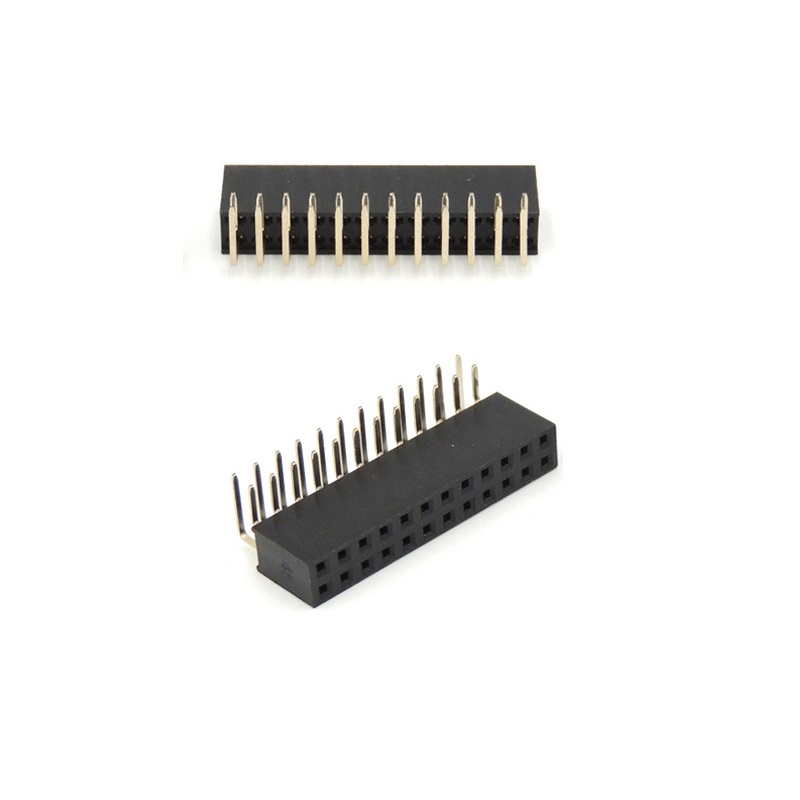

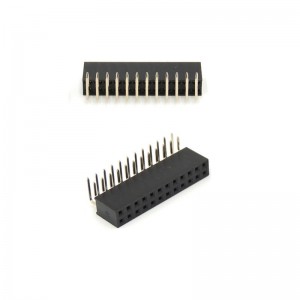

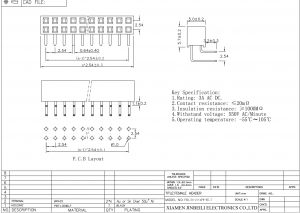

Custom Dual Row 2.54mm Female Header Connector THT Right Angle
-
-
-
Power Rated : 3A
Contact resistance: ≤20mΩ
Insulation resistance: ≥1000MΩ
Withstand voltage: 550V AC/Minute
Operating temperature: -55℃～105℃
Housing Height : customization available
Housing material : customization available
Datasheets :
