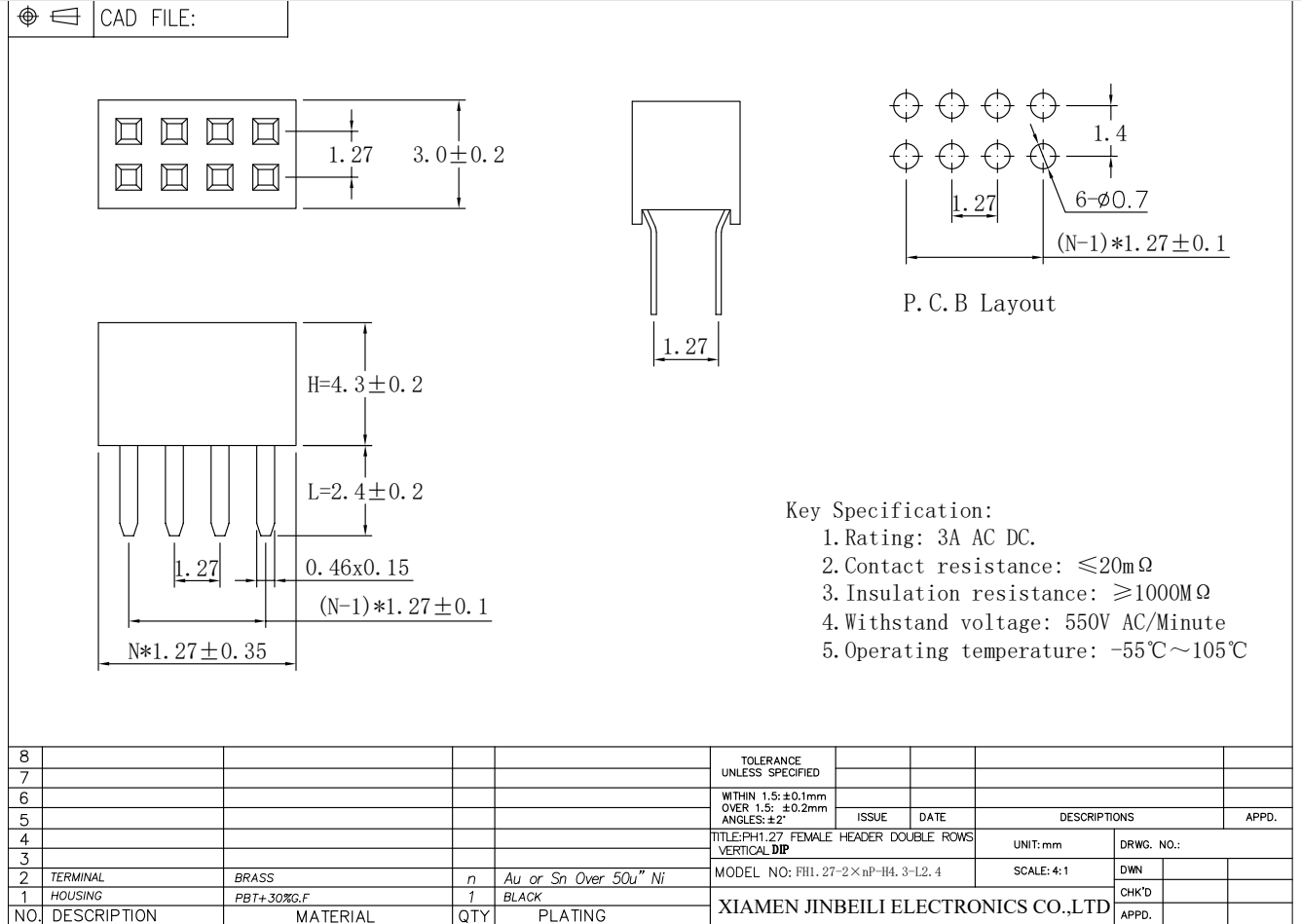

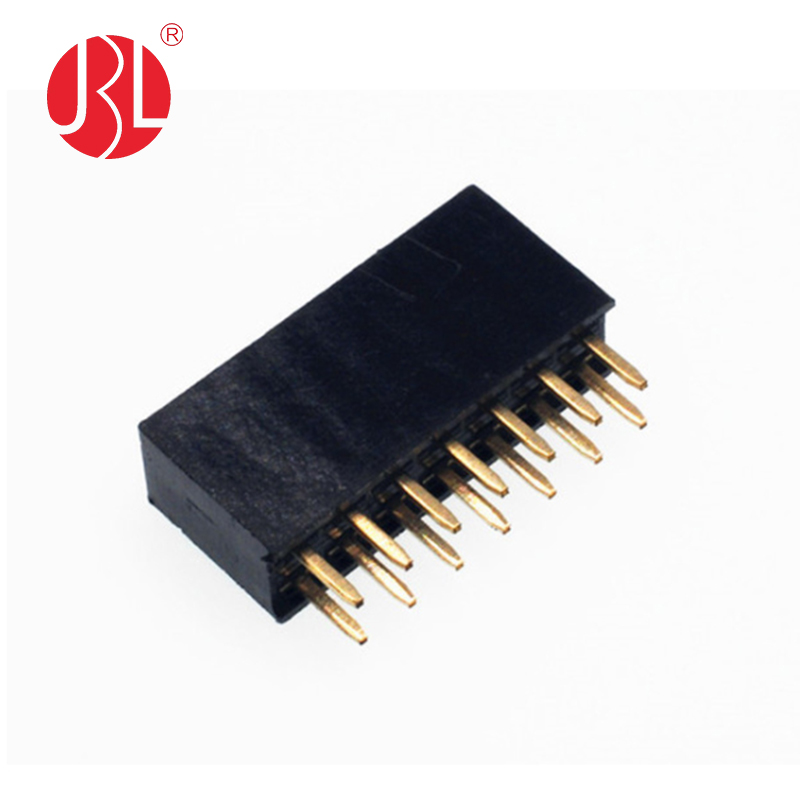

Custom 1.27mm Vertical Female Header Connector Through Hole
-
-
1.Rating: 3A AC DC.
2.Contact resistance: ≤20mΩ
3.Insulation resistance: ≥1000MΩ
4.Withstand voltage: 550V AC/Minute
5.Operating temperature: -55℃～105℃
6, Housing Height : customization available
7, Housing material : customization available
Datasheets :
