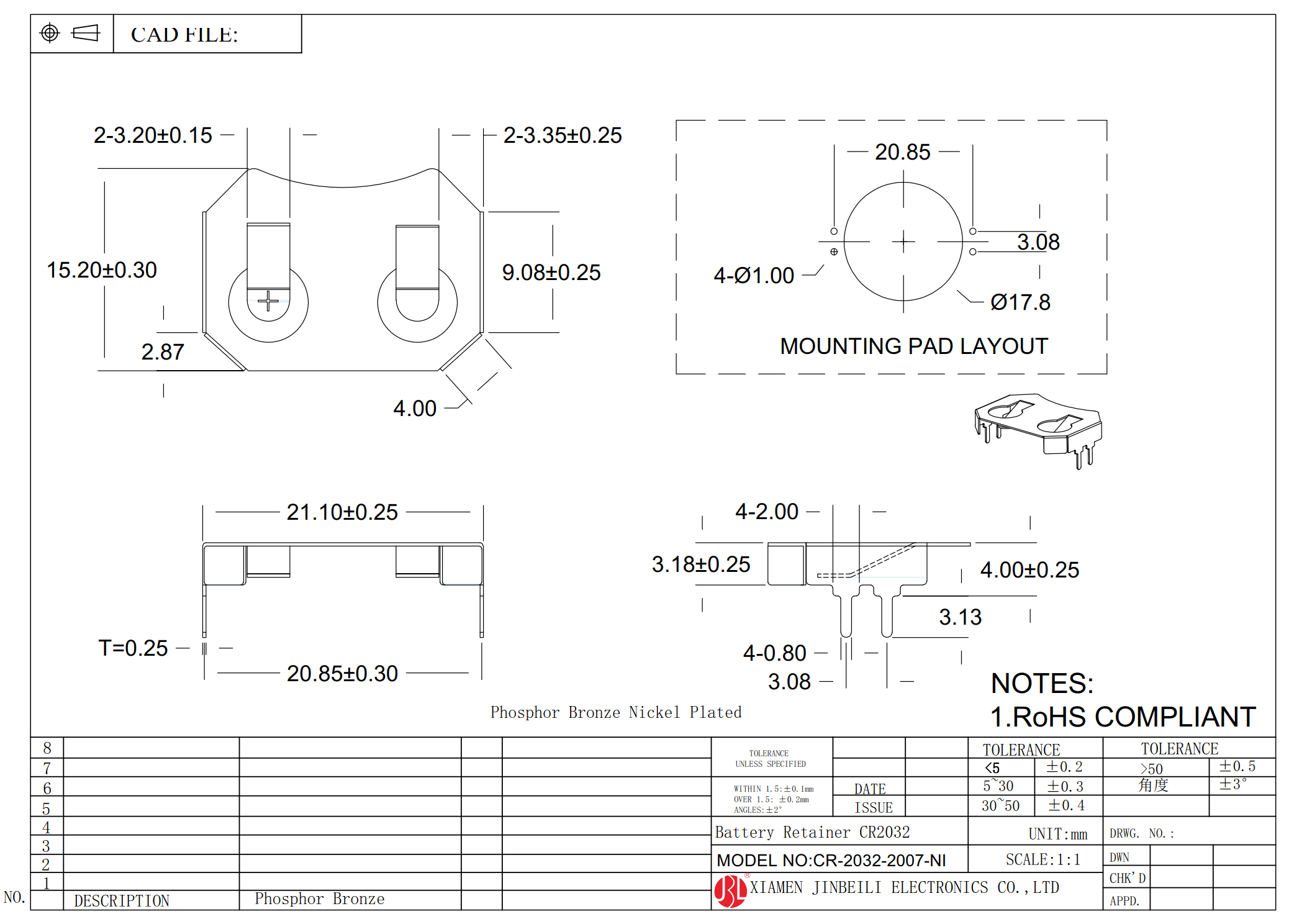

Jinbeili CR-2032-2007-NI is a through-hole CR2032 battery retainer, also called a CR2032 battery contact, battery clip, or coin cell holder contact. Designed for CR2032 lithium coin cells and compatible cells with the same dimensions, this PCB-mounted battery retainer provides a reliable electrical connection and secure mechanical retention.

The CR-2032-2007-NI is made of phosphor bronze with nickel plating, not manganese steel. Phosphor bronze provides good electrical conductivity, spring characteristics, and mechanical durability, while nickel plating helps provide a stable and durable contact surface.

This through-hole CR2032 battery contact is designed for direct PCB mounting and is suitable for electronic products where a compact and reliable coin-cell connection is required. Its dimensions and specifications are similar to TE Connectivity BAT-HLD-001-THM and BAT-HLD-001-THM-TR, making Jinbeili CR-2032-2007-NI a suitable alternative for applications requiring a compatible CR2032 battery retainer.

Typical applications include consumer electronics, industrial equipment, embedded electronic devices, control equipment, memory backup circuits, and other PCB-based electronic products.

Jinbeili CR-2032-2007-NI is RoHS and REACH compliant. The Jinbeili factory is ISO 9001 and IATF 16949 certified, supporting consistent manufacturing and quality control for OEM and electronic component applications.

Frequently Asked Questions

1. What battery does the CR-2032-2007-NI battery retainer fit?
It is designed for CR2032 coin cells and cells with the same compatible dimensions.

2. Is the CR-2032-2007-NI made of manganese steel?
No. The battery contact is made of phosphor bronze with nickel plating, not manganese steel.

3. Is the CR-2032-2007-NI a through-hole battery retainer?
Yes. It is a through-hole PCB-mounted CR2032 battery retainer.

4. Can it replace TE Connectivity BAT-HLD-001-THM?
Yes. The CR-2032-2007-NI has similar dimensions and specifications and can be used as an alternative to TE Connectivity BAT-HLD-001-THM in suitable applications. Please verify the mechanical dimensions and PCB footprint before replacement.

5. Can it replace TE Connectivity BAT-HLD-001-THM-TR?
Yes. It can serve as an alternative for applications using the TE Connectivity BAT-HLD-001-THM-TR battery retainer, subject to application and PCB compatibility.

6. Do you have an SMD version of the CR2032 battery retainer?
Yes. Jinbeili offers additional CR2032 battery holder and cell retainer options, including surface-mount versions. See the CR2032 Battery Holder / Cell Retainer Catalogue for available models: CR2032 Battery Holder & Cell Retainer Catalogue

7. What are the main applications of this CR2032 battery contact?
Typical applications include consumer electronics, industrial equipment, embedded systems, electronic control devices, and PCB-mounted battery backup applications.

8. Is the CR-2032-2007-NI RoHS and REACH compliant?
Yes. The CR-2032-2007-NI is RoHS and REACH compliant.

9. Is the Jinbeili factory certified?
Yes. The factory is ISO 9001 and IATF 16949 certified.

10. Can Jinbeili provide CR2032 battery retainers for OEM applications?
Yes. Jinbeili can support OEM/ODM requirements and different battery contact configurations. Contact Jinbeili with your required battery type, PCB mounting method, dimensions, and electrical requirements for evaluation.
