Blade Type Male Power Connector – 2.0mm Pitch, Surface Mount Right Angle

The Blade Type Male Power Connector is a compact and reliable power interconnect solution designed for applications requiring secure electrical performance and efficient PCB space utilization. Featuring a 2.0mm pitch and a surface mount right-angle configuration, this connector enables low-profile board layouts while providing convenient horizontal cable or mating connector engagement.

Engineered to support up to 5A maximum current, the connector is well suited for battery packs, portable electronics, industrial equipment, consumer devices, power management modules, and other applications where dependable power delivery is essential. The precision-machined brass contacts offer excellent electrical conductivity, mechanical strength, and long-term durability, ensuring stable electrical connections even under repeated mating cycles.

The insulation housing is molded from LCP (Liquid Crystal Polymer), a high-performance thermoplastic known for its exceptional heat resistance, dimensional stability, and compatibility with surface mount assembly processes. This robust housing enhances connector reliability during soldering and throughout the product’s service life.

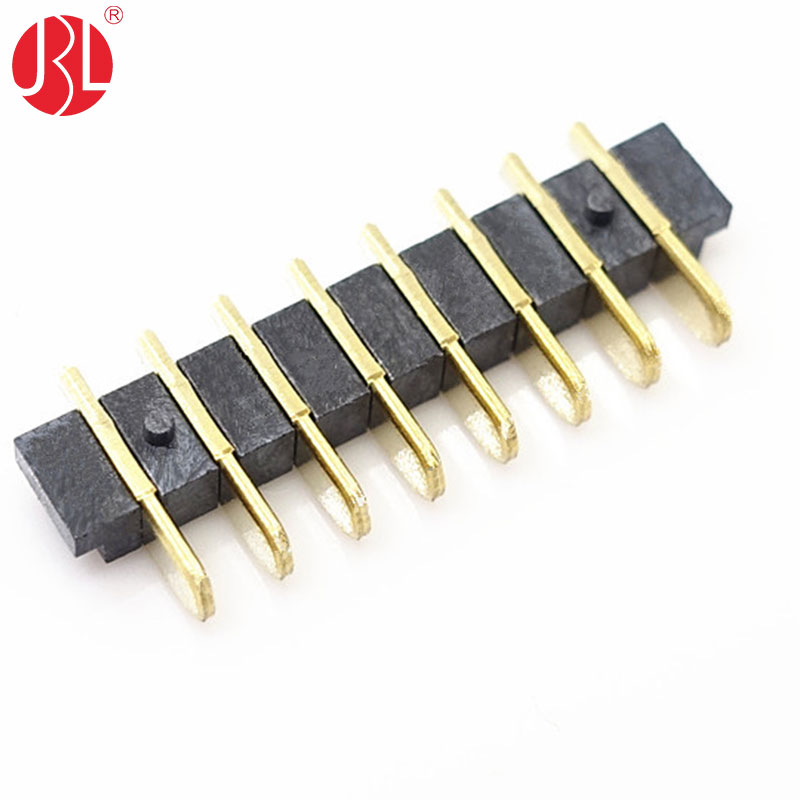

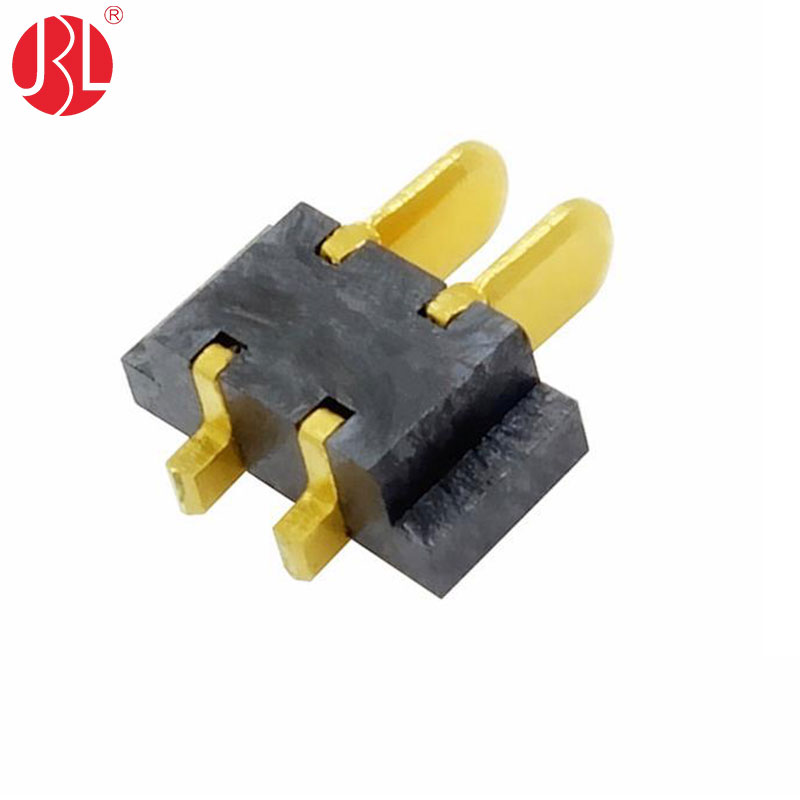

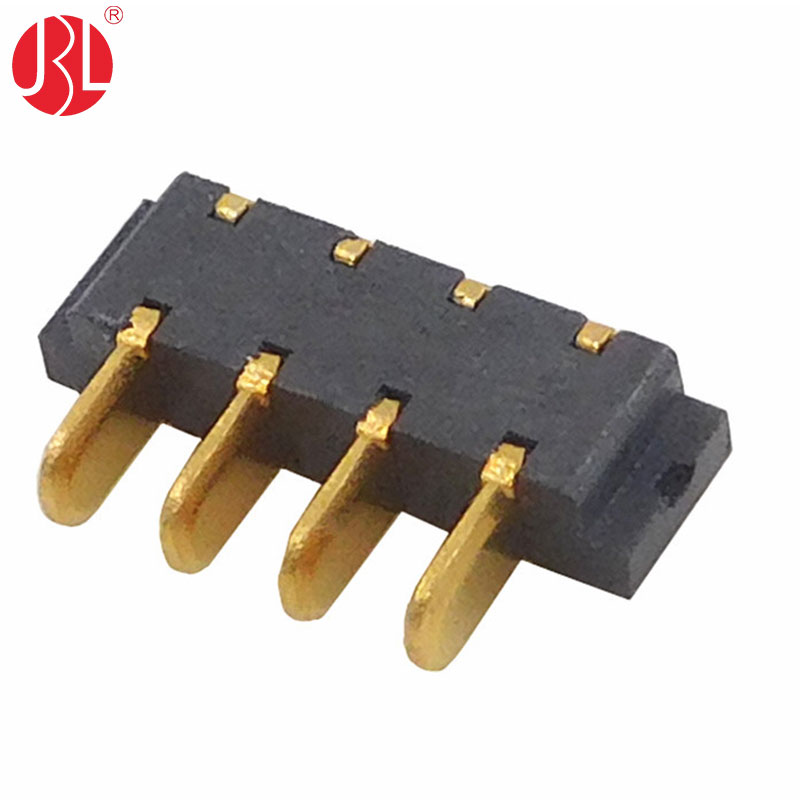

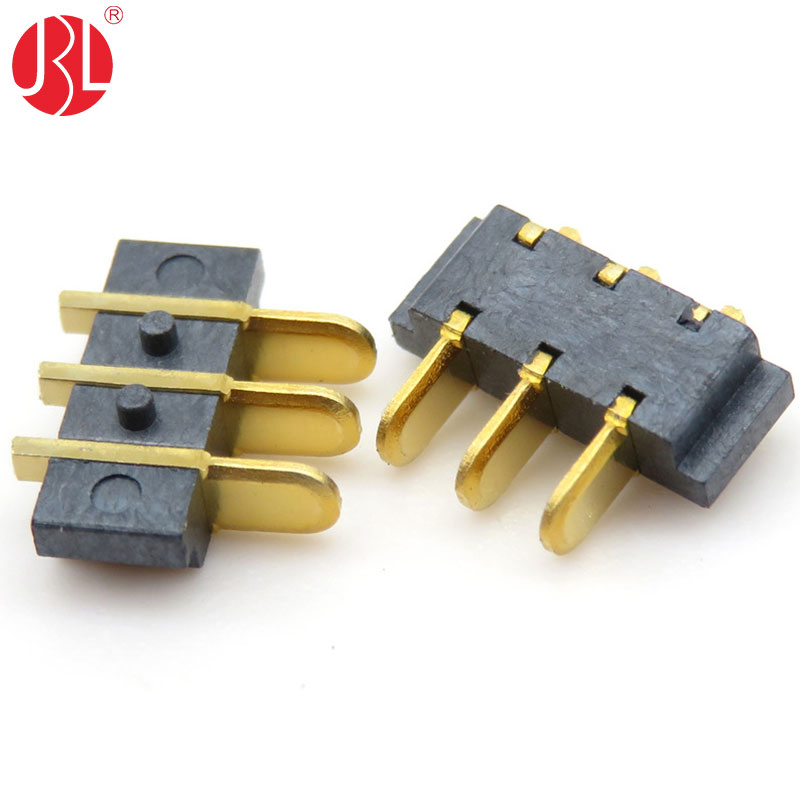

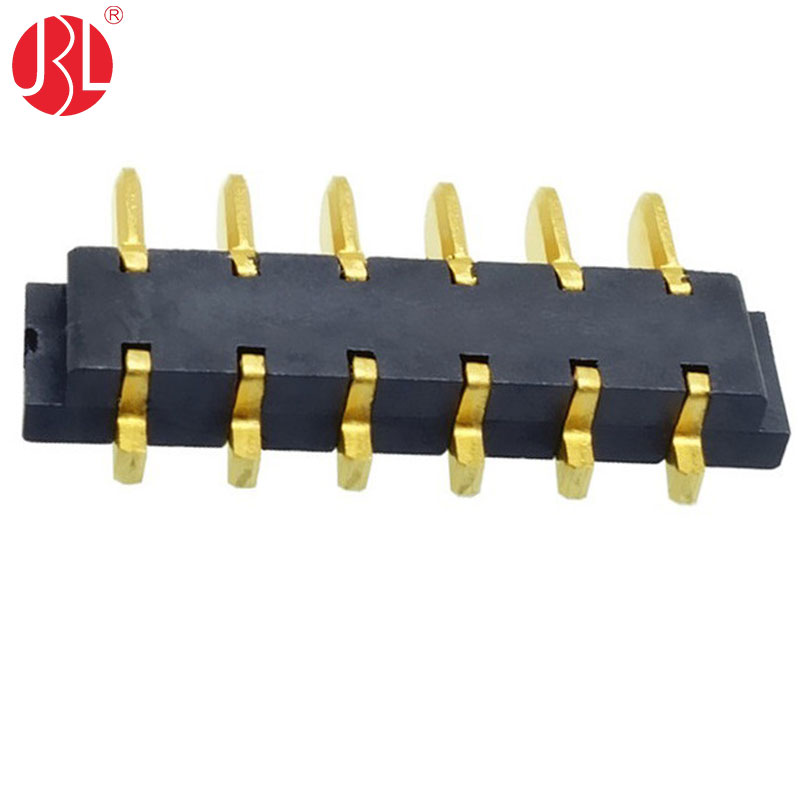

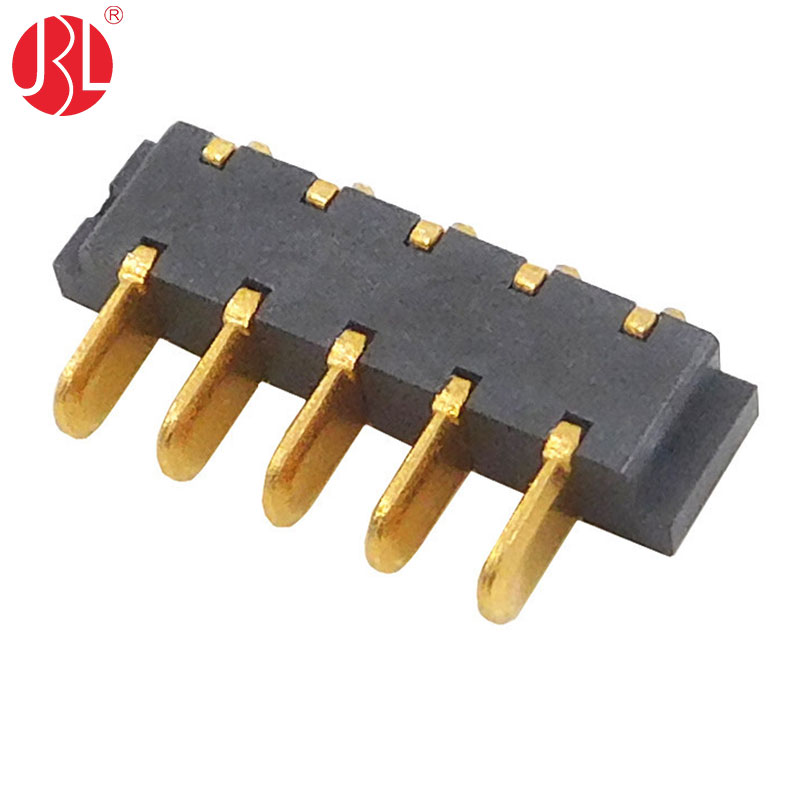

With a 2.6mm contact length, the connector provides secure mating engagement while maintaining a compact footprint for high-density PCB designs. To accommodate various circuit requirements, it is available in a wide range of contact configurations, including 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, 8-pin, 9-pin, and 10-pin options.

Combining compact dimensions, high current capacity, durable materials, and multiple pin-count configurations, this Blade Type Male Power Connector offers an ideal solution for designers seeking a dependable, space-saving connector for modern battery-powered and power distribution applications.
