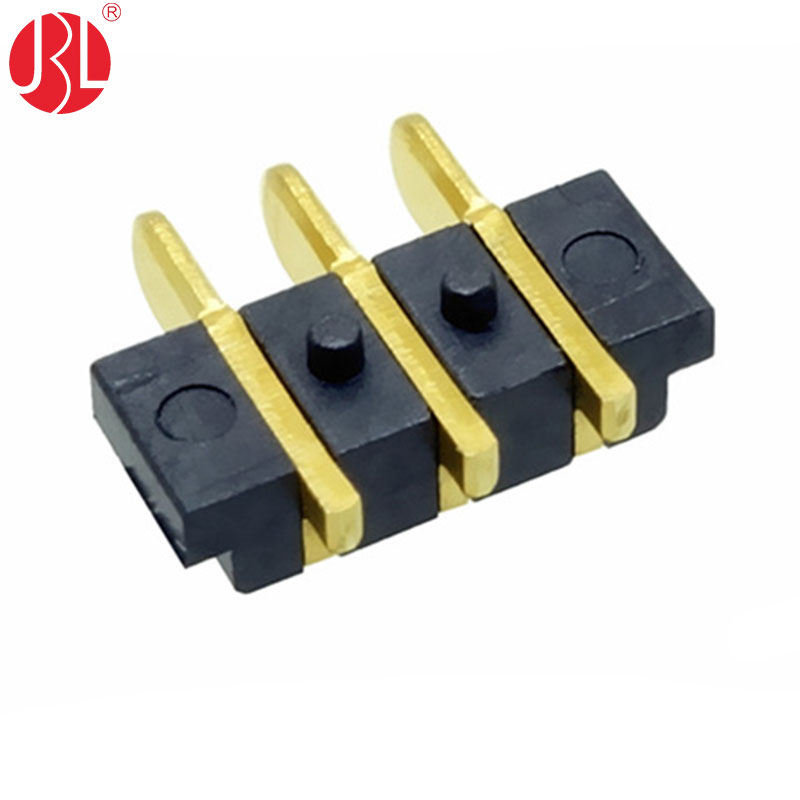

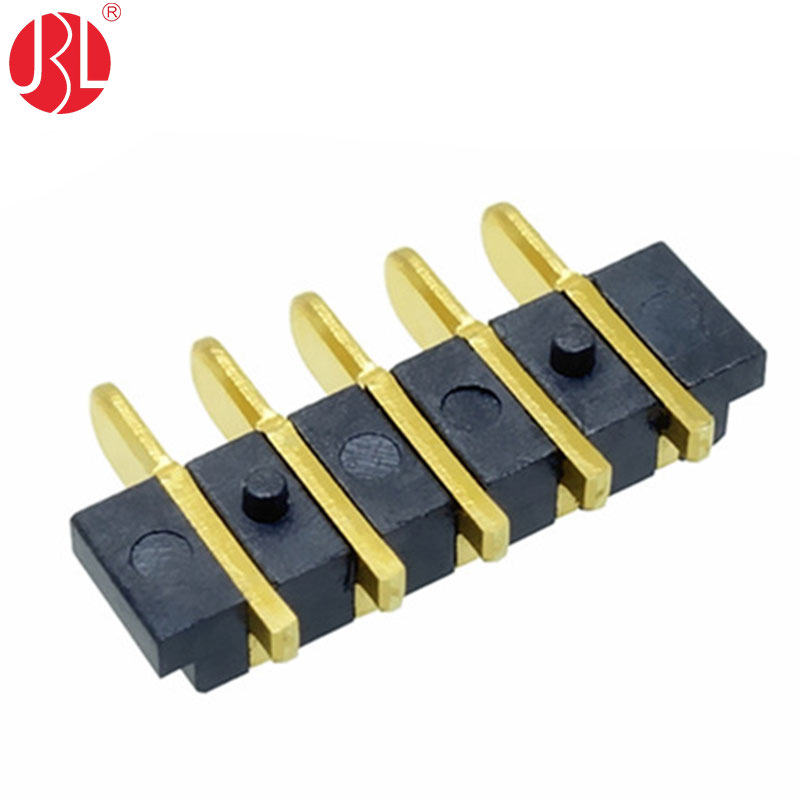

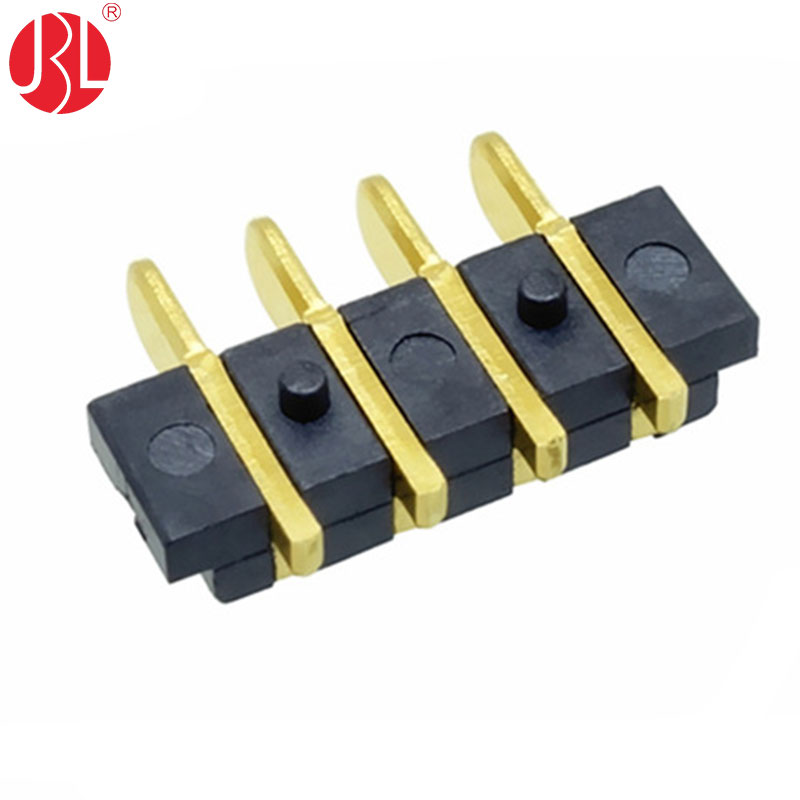

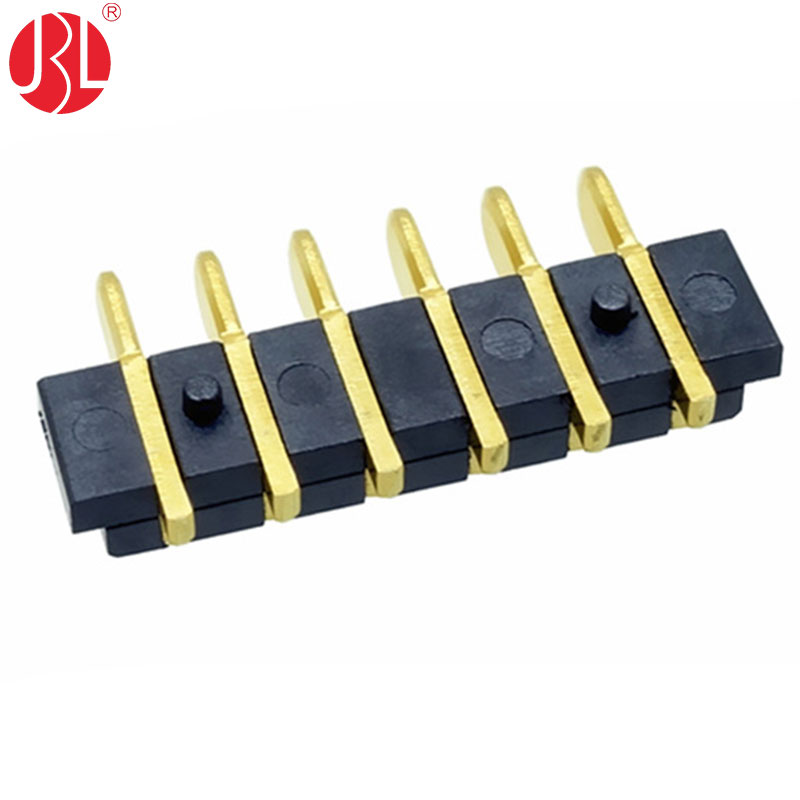

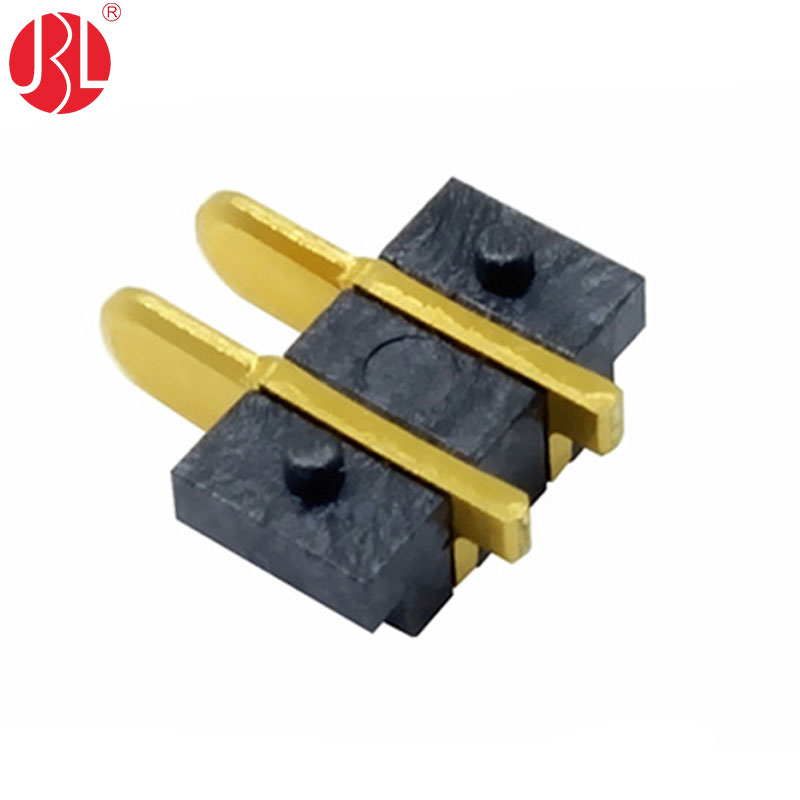

Blade-Type Male Battery Power Connector (Surface Mount, Right Angle)
This compact, high-performance blade-type male battery connector is engineered for secure, space-efficient power delivery in compact electronics. Featuring a 2.0mm pitch layout, it accommodates 2-way to 10-way contact configurations, enabling flexible power distribution for single-cell to multi-battery systems. The surface mount right-angle design optimizes PCB real estate, allowing seamless integration into densely packed circuits or low-profile enclosures.
Key Features:
Power Rating: Rated for DC24V/5A per contact, supporting moderate-load applications such as portable devices, IoT sensors, or small motors. Durable Construction: Molded from high-temperature LCP (Liquid Crystal Polymer) with gold-plated phosphor bronze contacts for corrosion resistance and 1,000+ mating cycles. Polarized Design: Keyed housing prevents misalignment, ensuring reliable connections under vibration or thermal stress. Pick-and-Place Ready: Tape-and-reel packaging streamlines automated assembly.
Applications:
Powering microcontrollers, LED drivers, or wireless modules in drones, wearables, or robotics.
Battery packs for RC toys, medical devices, or backup power systems.
Custom electronics requiring multi-point power distribution (e.g., LED strips, sensors).
Benefits:
Right-angle orientation reduces PCB footprint and simplifies cable routing.
Modular contact count (2–10 ways) adapts to evolving design needs without retooling.
RoHS-compliant and UL-recognized for global market compatibility.
Ideal for engineers seeking a robust, scalable solution for low-to-medium power battery interfaces.
