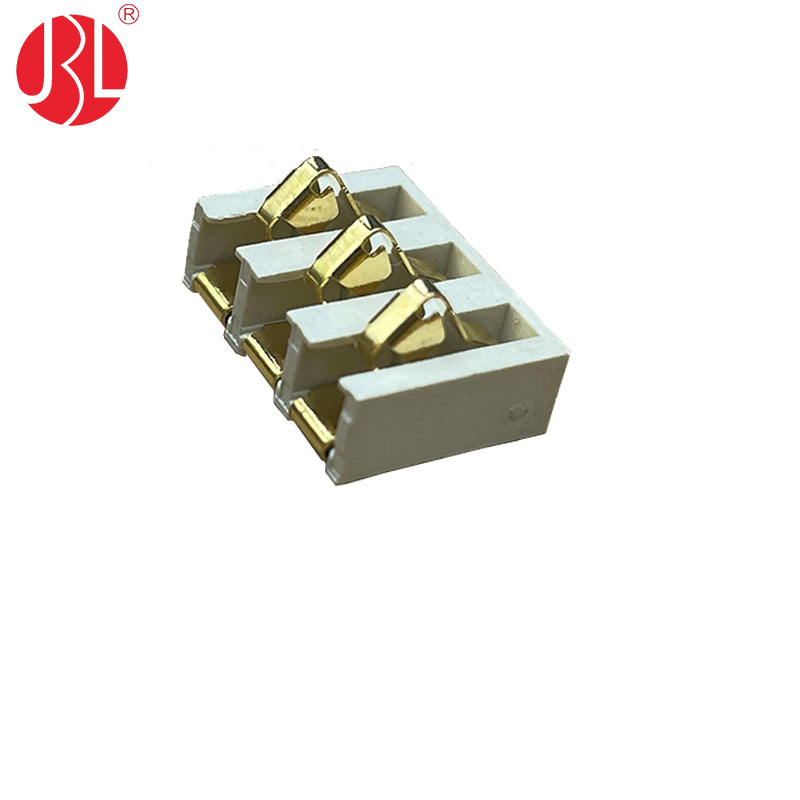

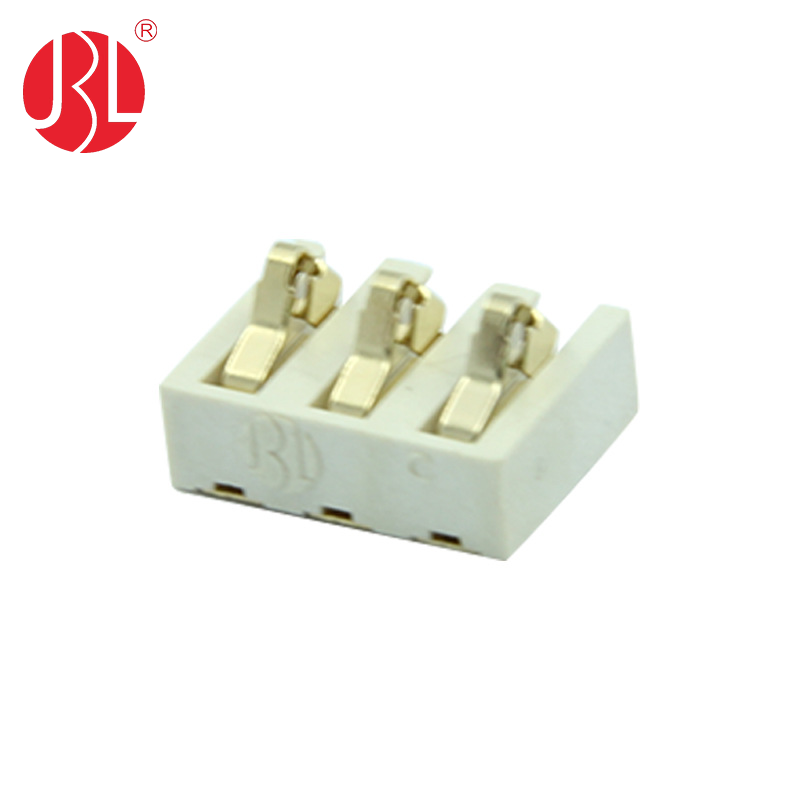

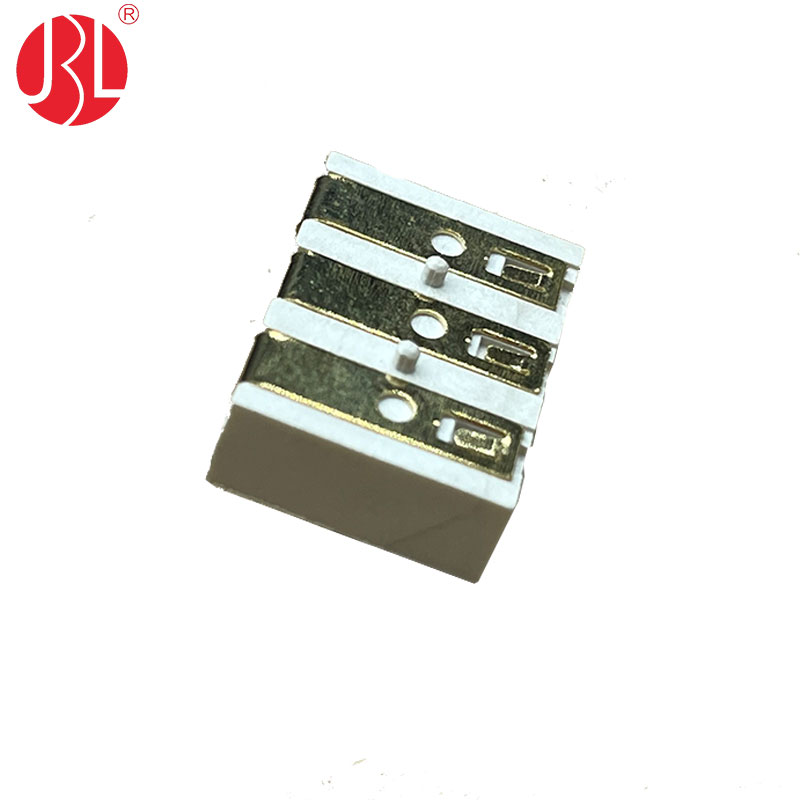

BT-003E 4.1mm Pitch Spring Battery Connector 3Way SMT
-
-
-
The 4.1mm pitch spring battery connector is a compact, surface-mount solution designed for reliable power connections in small electronic devices. This 3-way connector features a durable spring contact mechanism made from beryllium bronze, ensuring secure and stable connections with battery terminals. The insulation housing, constructed from LCP (Liquid Crystal Polymer), offers high heat resistance and durability, making it suitable for demanding environments. With an insulation housing height of 4.1mm and a contact height of 6.7mm, it provides a robust and space-efficient design. Rated for DC 12V and 2A, it is ideal for low-power applications such as portable electronics, IoT devices, and medical equipment. The surface-mount configuration simplifies PCB assembly, making it a cost-effective and practical choice for modern electronics. Its reliable construction ensures long-lasting performance, even in challenging conditions.
