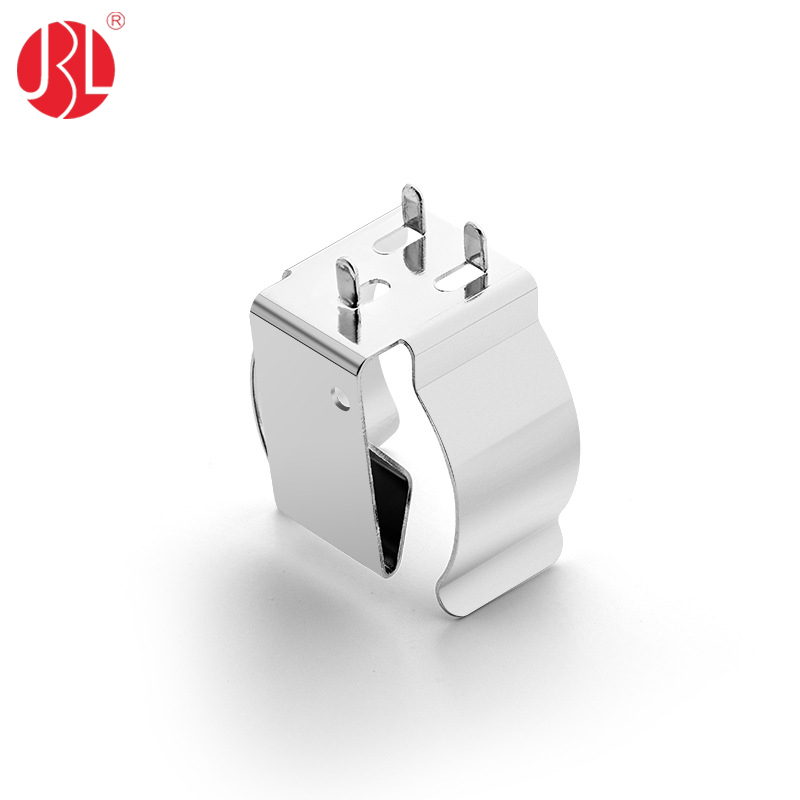

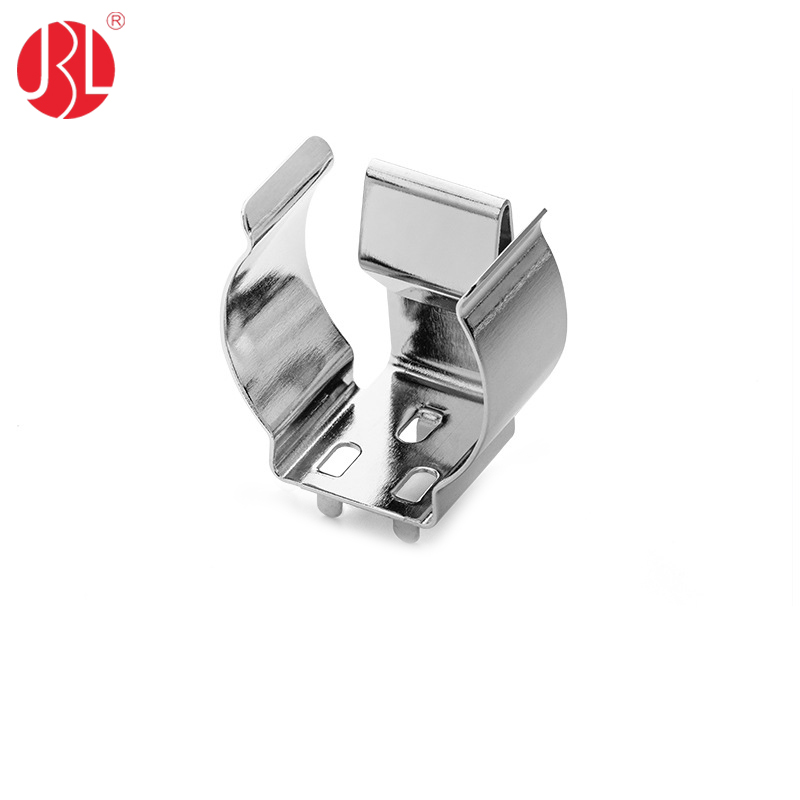

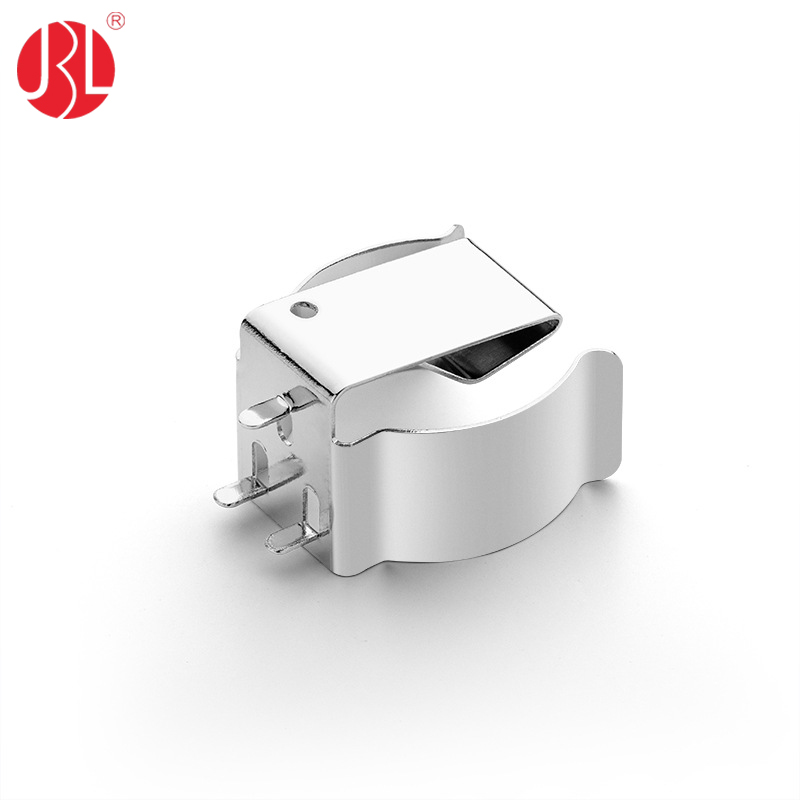

Jinbeili BC-18650-1721-NI 18650 Battery Clip Contact Throug Hole ROHS Compliant

Q: What battery is this battery clip contact designed for?
A: The Jinbeili BC-18650-1721-NI is a battery cell clip contact designed specifically for 18650 cylindrical lithium-ion battery cells.

Q: What type of battery contact is it?
A: It is a through-hole PCB-mounted 18650 battery clip contact, designed for secure electrical connection between an 18650 battery cell and a printed circuit board (PCB).

Q: What is the material of the battery contact?
A: The contact is made from spring steel, providing the mechanical flexibility and contact force required for reliable battery connection.

Q: What is the plating on the spring steel?
A: The spring steel is nickel plated for improved surface protection, durability, and electrical contact performance.

Q: Is the BC-18650-1721-NI RoHS compliant?
A: Yes. The Jinbeili BC-18650-1721-NI is RoHS compliant.

Q: Is this battery contact through-hole or surface mount?
A: The BC-18650-1721-NI is a through-hole PCB-mounted battery contact.

Q: Do you have a surface-mount version?
A: For surface-mount requirements, please contact Jinbeili to confirm available SMD/SMT 18650 battery contact options.

Q: Can this battery clip replace Keystone 54?

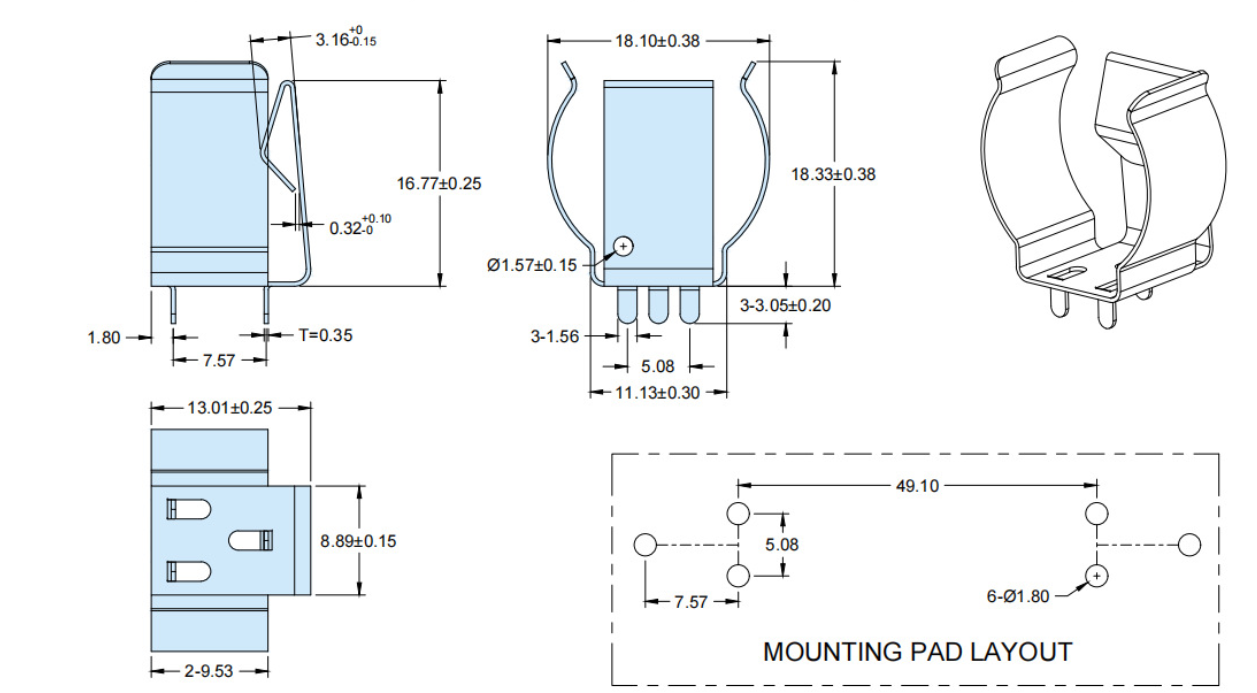

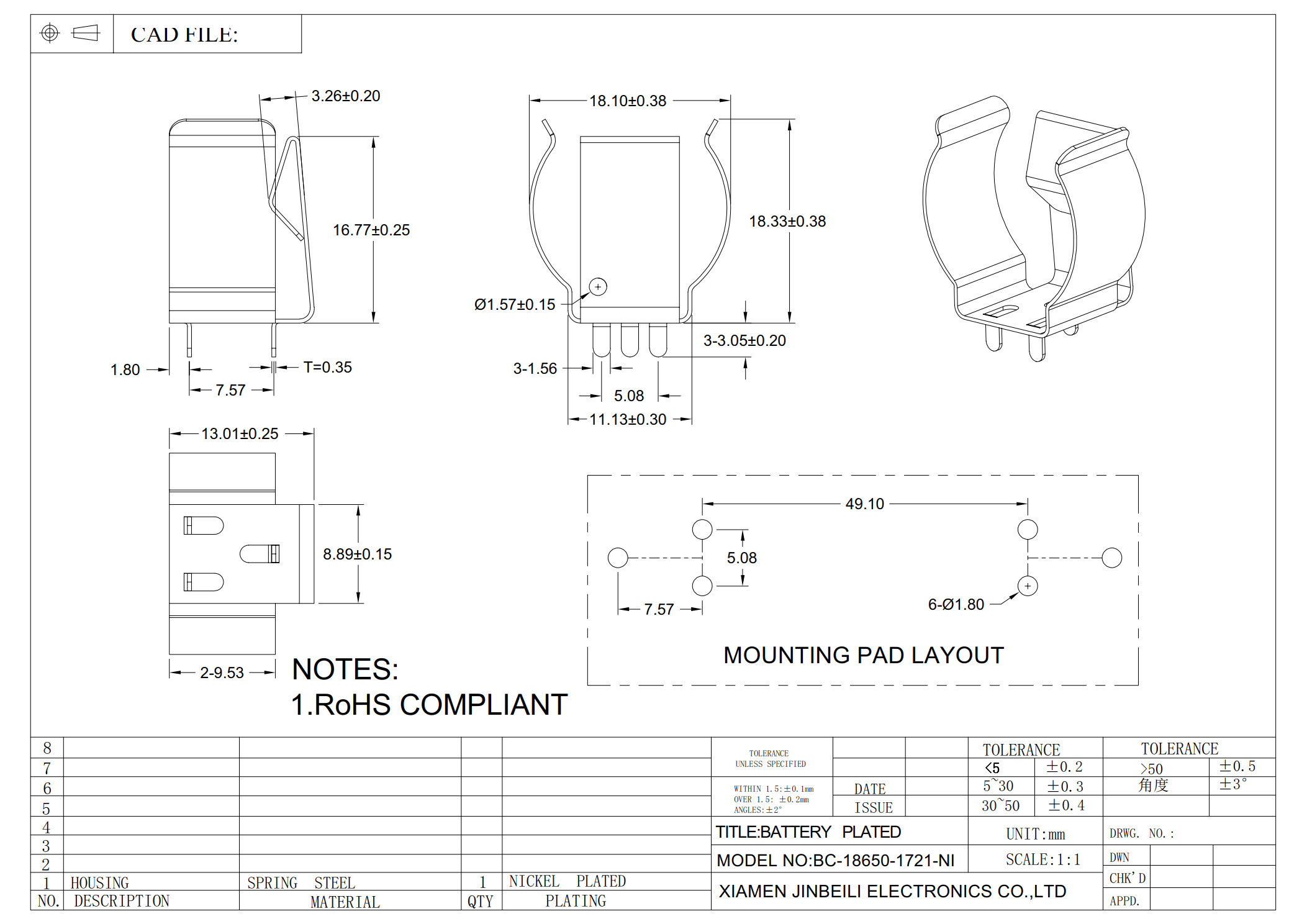

A: Yes. The Jinbeili BC-18650-1721-NI has identical dimensions and specifications to the Keystone 54 battery clip contact, making it an excellent alternative for applications designed around the Keystone 54.

Q: Is the manufacturer certified?
A: Yes. The Jinbeili factory is ISO 9001 and IATF 16949 certified, supporting consistent manufacturing and quality management.

Q: What is the short product description?
A: The Jinbeili BC-18650-1721-NI is a RoHS-compliant, nickel-plated spring steel, through-hole PCB-mounted 18650 battery clip contact and an excellent alternative to Keystone 54.
