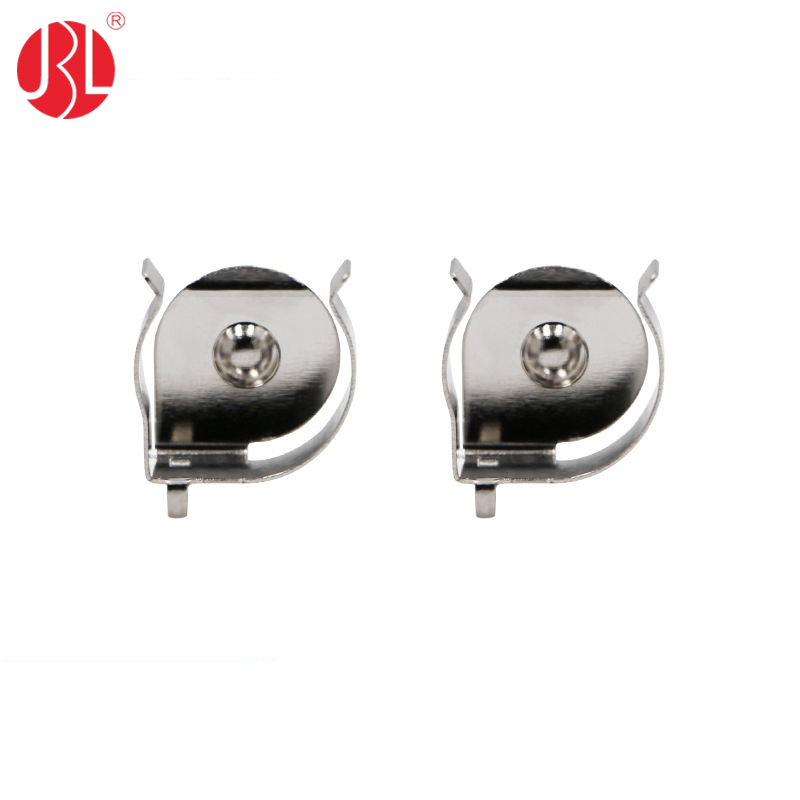

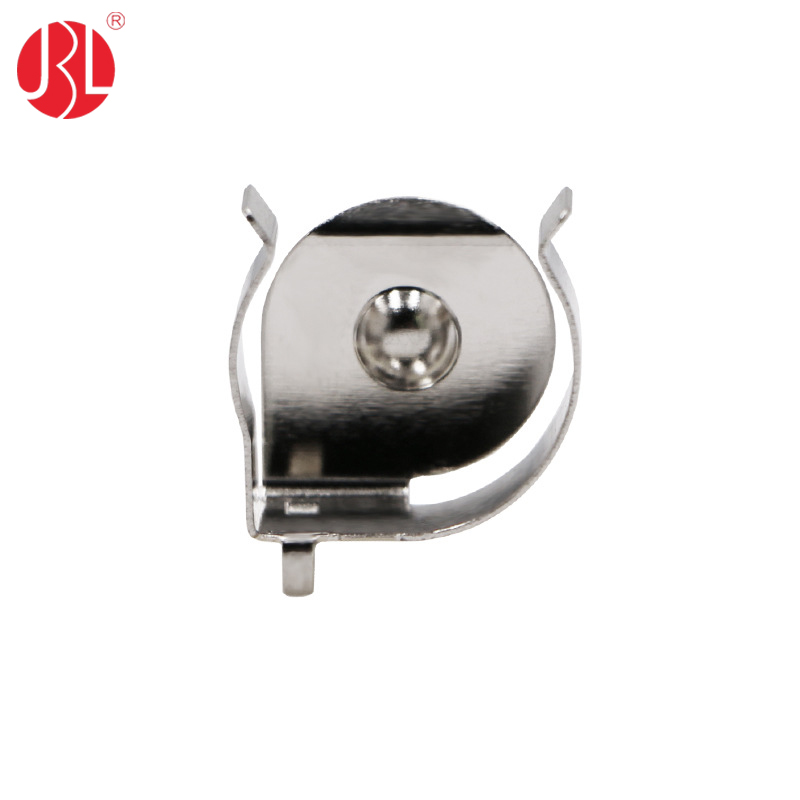

Jinbeili BC-18650-1718-NI Battery Clip, also known as a battery retainer or battery holder contact, is designed for reliable retention and electrical connection of 18650 and CR123A cylindrical battery cells. This through-hole (THT) battery clip is suitable for direct PCB mounting and provides a durable spring contact for battery-powered electronic devices.

The BC-18650-1718-NI is manufactured from spring steel with nickel plating, offering good mechanical elasticity, corrosion resistance, conductivity, and long-term reliability. Multiple directional versions are available, including 1718-1 left-direction and 1718-2 right-direction configurations, allowing customers to select the appropriate battery orientation and PCB layout.

This 18650 battery retainer is suitable for applications including home appliances, consumer electronics, toys, flashlights/torches, portable electronic devices, and other battery-powered products.

The product is RoHS and REACH compliant. Jinbeili’s manufacturing facilities are certified to ISO 9001 and IATF 16949, supporting consistent quality control and reliable production. Customized battery clips, PCB mounting configurations, and directional versions may also be available according to customer requirements.

Part Number: BC-18650-1718-NI
Compatible Cells: 18650 / CR123A
Mounting Type: Through Hole (THT)
Material: Spring Steel
Finish: Nickel Plated

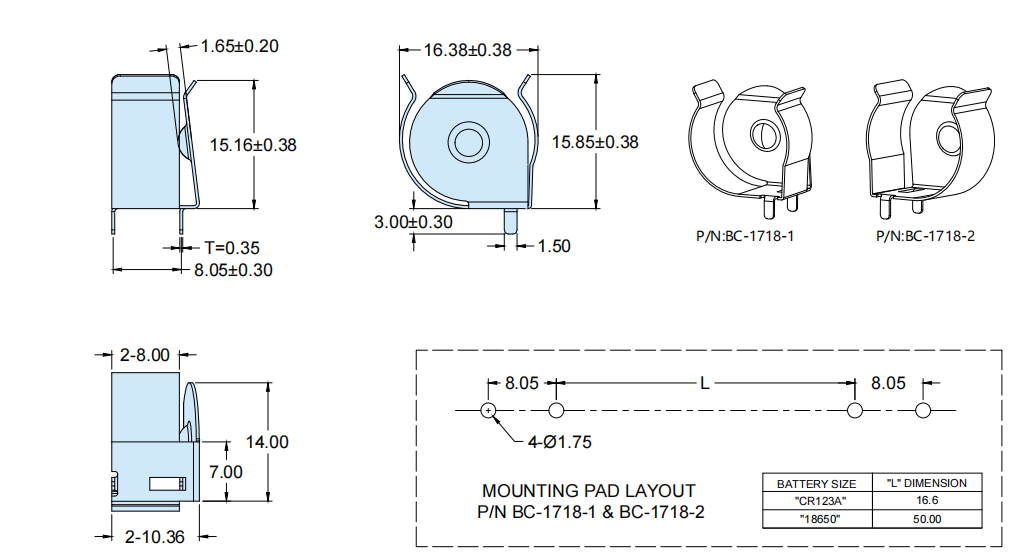

Variants: 1718-1 Left Direction / 1718-2 Right Direction
Compliance: RoHS & REACH
Applications: Home Appliances, Consumer Electronics, Toys, Torches and Battery-Powered Devices
