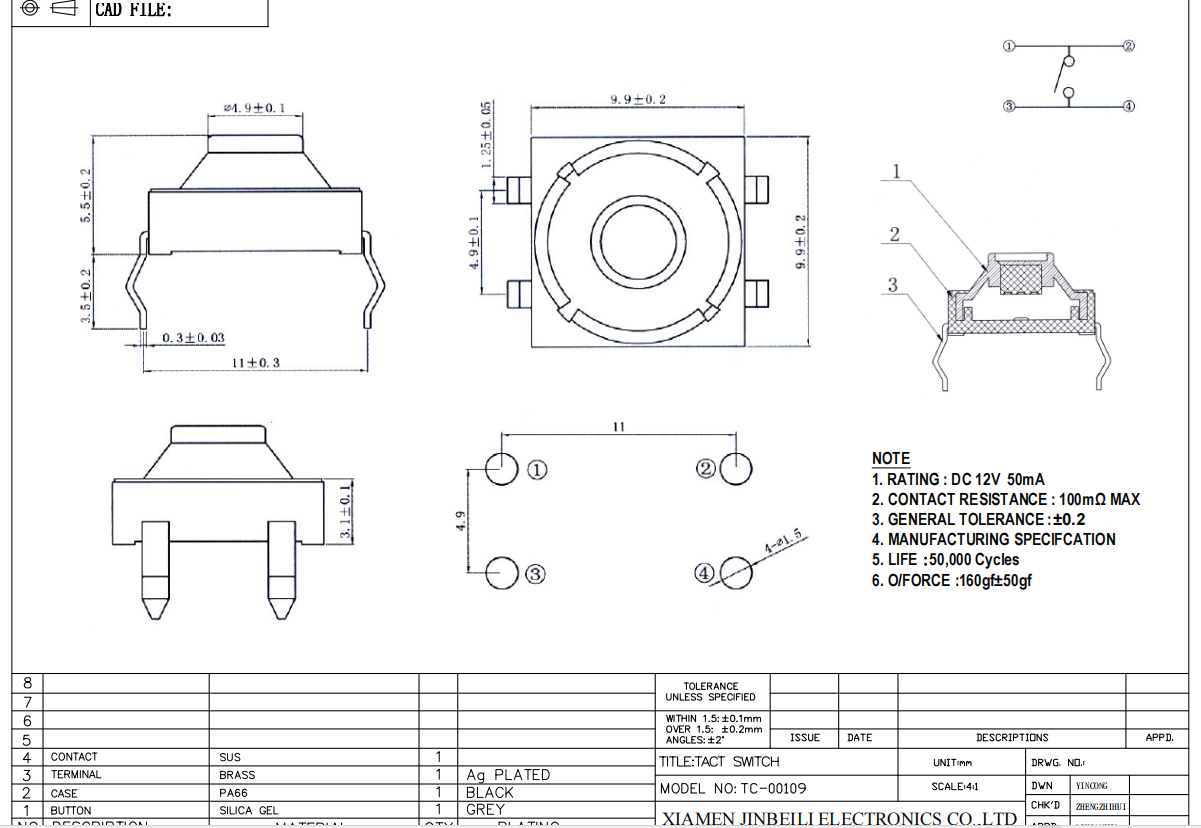

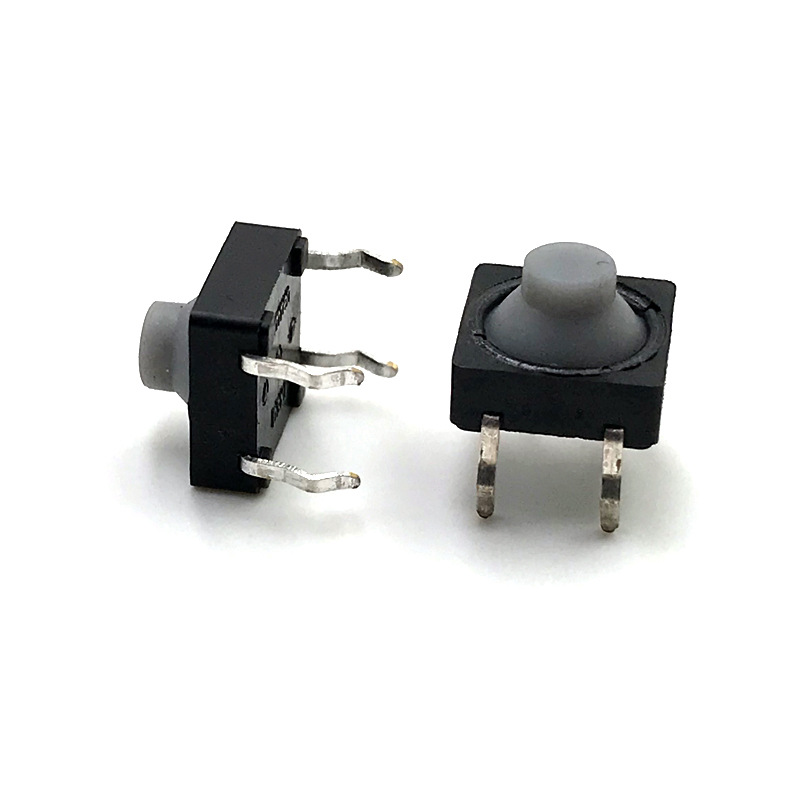

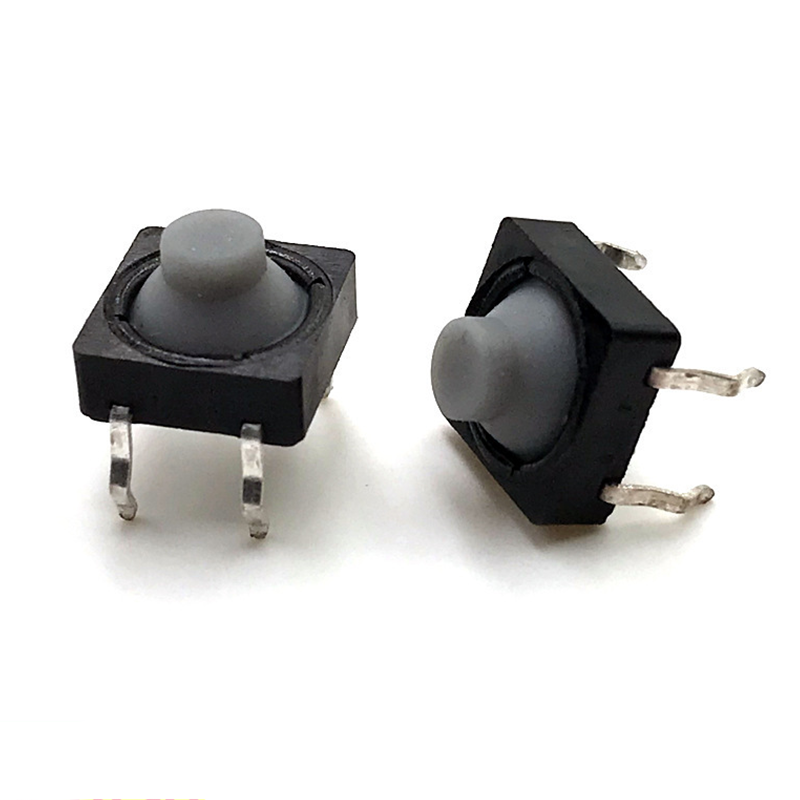

TC-00109 Silicone Soft Tactile Switch 10*10mm Through Hole

10*10mm Silent Tactile Switch with Soft Silicone Actuator Knob Tact Switch Through Hole DC12 0.05A

Actuator Material: Silicone

Actuator Height Off PCBA: 5.5mm

Power Rated : DC12V 0.05A

Mounting: Through hole

Feature: Silicone Button

Operation force options : 100gf, 160gf, 250gf

Outline : 10X10mm

Product Detail

10*10mm Silent Tactile Switch with Soft Silicone Actuator Knob Tact Switch Through Hole DC12 0.05A . No click when push the button.
