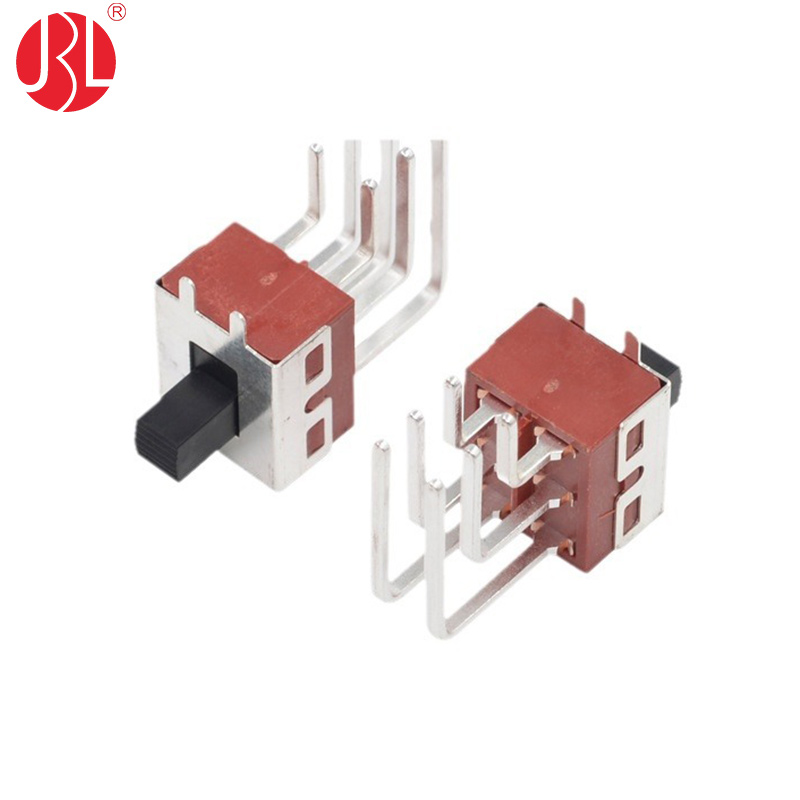

SS-22D28 High Current Slide Switch DPDT Through Hole Right Angle
-
-
This high-current, double-pole double-throw (DPDT) slide switch is engineered for robust performance in demanding applications. Designed as a direct and reliable alternative to the 5MD1S102AM6QES, it offers identical form, fit, and function, ensuring seamless integration into existing designs. The switch boasts a substantial power rating of 125V AC at 5A, making it an ideal solution for controlling motors, lighting, and other high-power circuits.
Its key feature is a horizontal right-angle PCB termination, which allows for efficient use of board space by mounting parallel to the PCB, facilitating a lower overall profile. To accommodate diverse panel thicknesses and design requirements, the actuator is available in three distinct lengths: 5.0mm, 6.96mm, and 8.96mm. This flexibility ensures proper accessibility and a secure fit through the application’s housing.
Constructed for durability and long-life cycling, the switch provides precise, reliable switching with a definitive tactile glide. This combination of high-current capacity, versatile mounting, and customizable actuator options makes it a superior choice for power supplies, industrial equipment, automotive electronics, and advanced consumer devices.
