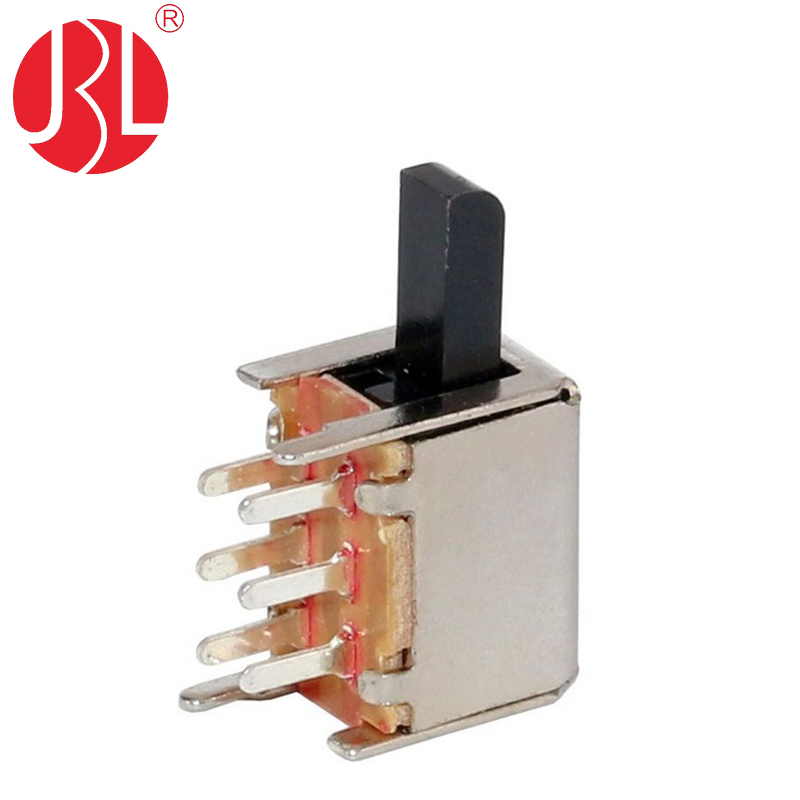

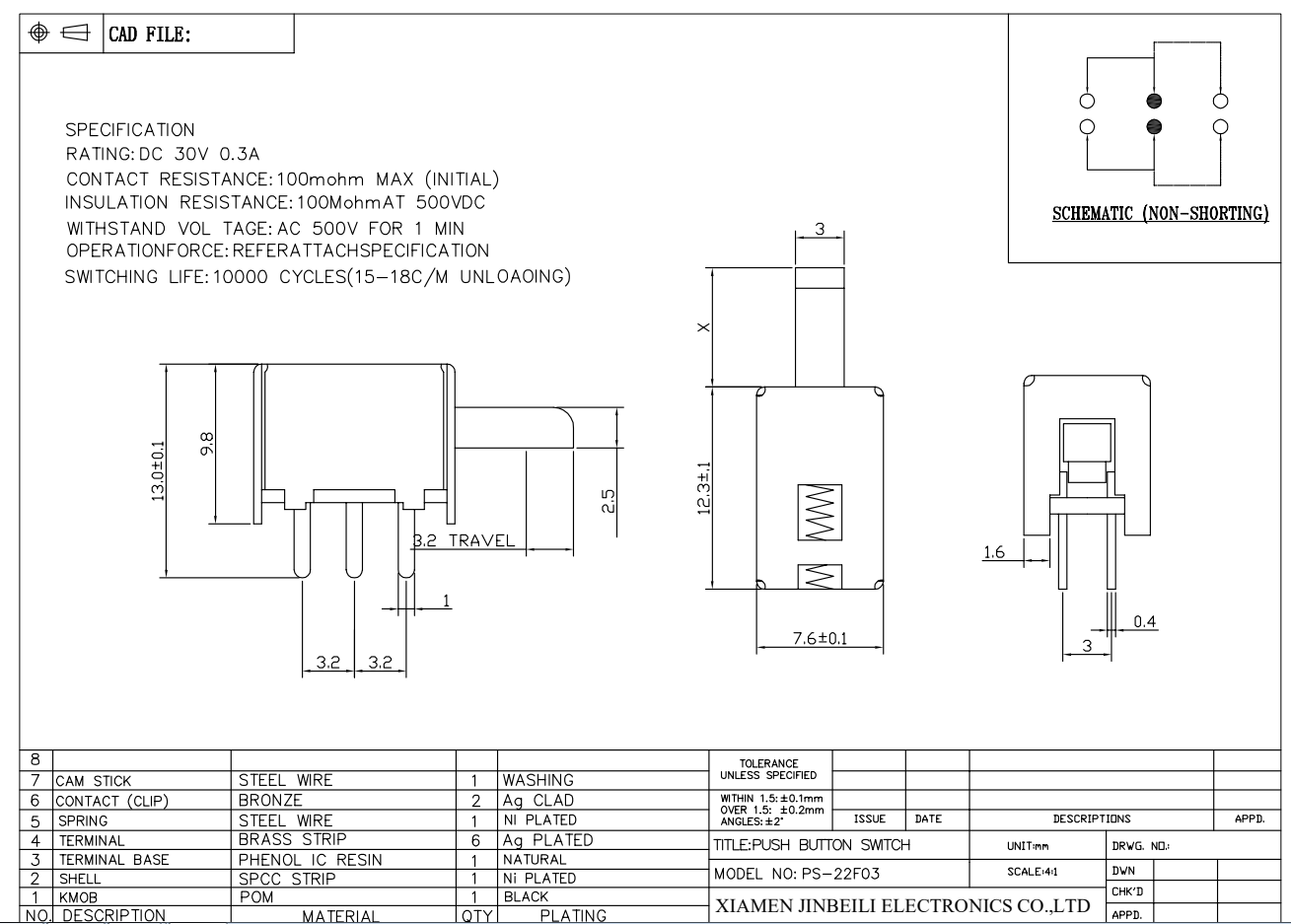

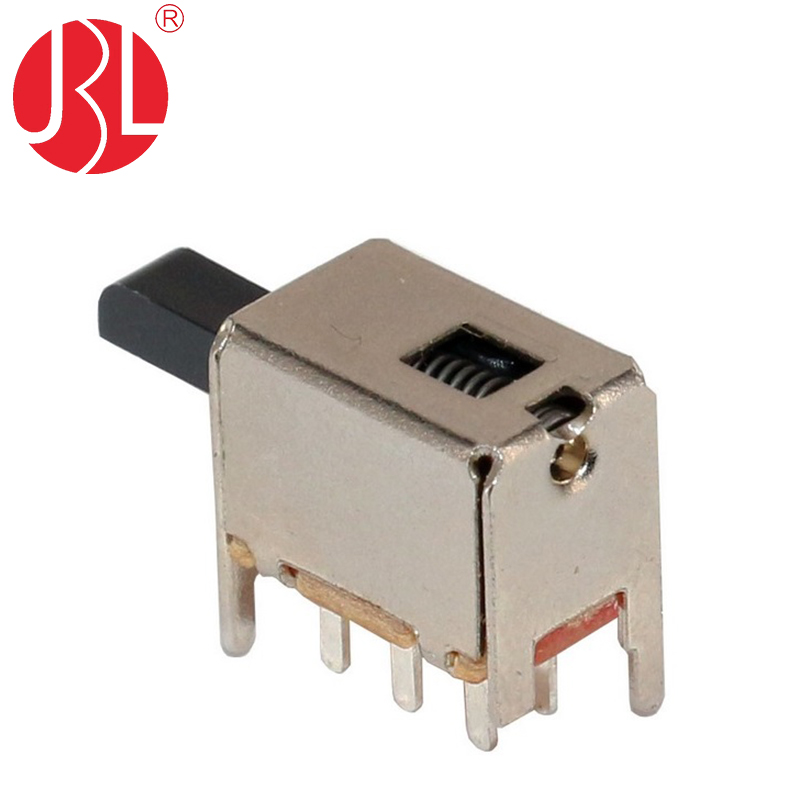

PS-22F03 Momentary Push Button Switch DPDT Through Hole Right Angle
-
-
-
The push button switch is a THT (Through Hole Technology) right-angle type with solder terminals, making it easy to install on a printed circuit board. It features a DPDT (Double Pole, Double Throw) configuration, which allows for the control of two separate circuits with two possible connection states. The switch also comes with screws for panel mounting, ensuring a secure and stable installation on a panel or enclosure. Its versatility and reliability make it an ideal choice for a wide range of electronic applications, including industrial controls, automation systems, and consumer electronics.
Previous:
22mm Illuminated Metal Push Button Switch Stainless Steel IP65 Waterproof DC36V 2A 250VAC 5A PLM22-12M-F-NNN-S0
Next:
PS-12D33 Push Button Switch SPDT THT Hole
dpdt push button switch PUSH BUTTON SWITCH 2P2T
Write your message here and send it to us
The push button switch is a THT (Through Hole Technology) right-angle type with solder terminals, making it easy to install on a printed circuit board. It features a DPDT (Double Pole, Double Throw) configuration, which allows for the control of two separate circuits with two possible connection states. The switch also comes with screws for panel mounting, ensuring a secure and stable installation on a panel or enclosure. Its versatility and reliability make it an ideal choice for a wide range of electronic applications, including industrial controls, automation systems, and consumer electronics.
